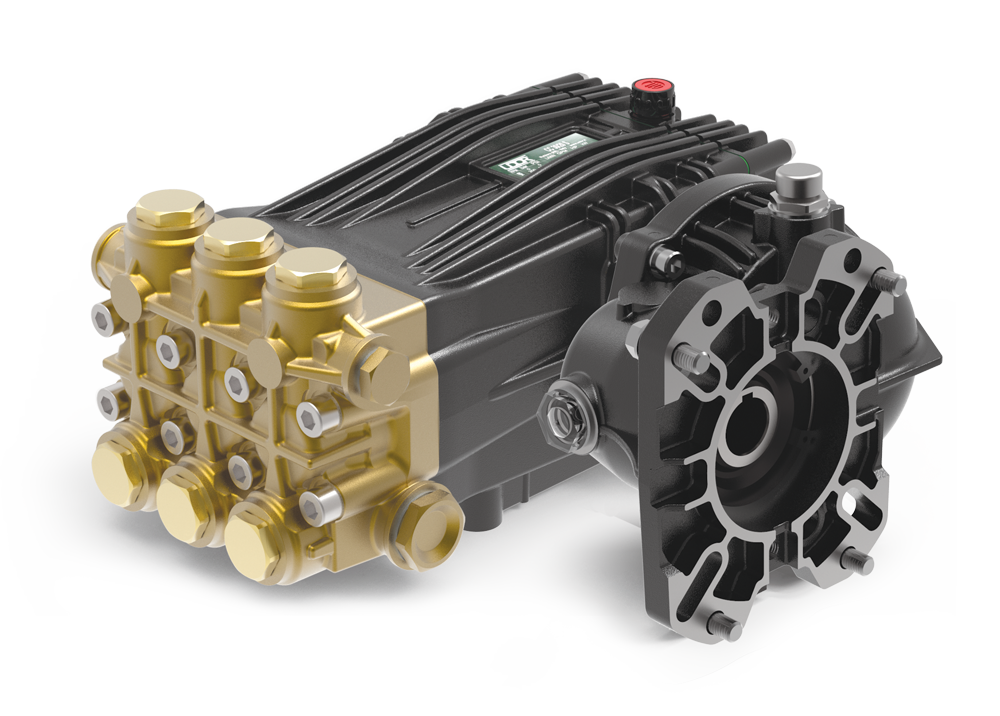

Udor CKC 30/24-GR Plunger Pump with 1" Shaft

(Replaced GKC 30/24 GR)

7.9 gpm, 3480 psi, 26 HP Gas Engine Power Requirement

**IMPORTANT PRODUCT INFORMATION**

This pump is equipped with a 1" hollow shaft. For a 1-1/8" hollow shaft configuration, please select model CKC3024GR118. If you are unsure which configuration you need, please contact a customer service representative for assistance.

Download Product Manual

• Shaft: 1” Hollow
• Max Flow: 7.9 GPM
• Max Pressure: 3,480 PSI
• Heavy-duty brass manifold with external and internal bracing
• Heavy-duty bronze or aluminum connecting rods
• Large-diameter brass or stainless steel valve caps with increased thread depth
• Reinforcing ring on inlet and discharge ports
• Stainless steel piston guides and check valves
• Heat-treated crankshaft
• Industrial-quality tapered roller bearings
• Deeper back cover for increased oil capacity
• 34.5 oz. capacity vented oil bath crankcase
• 3/4” BSP-F inlet, 3/8” BSP-F outlet (less than 10 GPM)
• 3/4” BSP-F inlet, 1/2” BSP-F outlet (10 GPM and above)
• Max fluid temperature: 160°F
