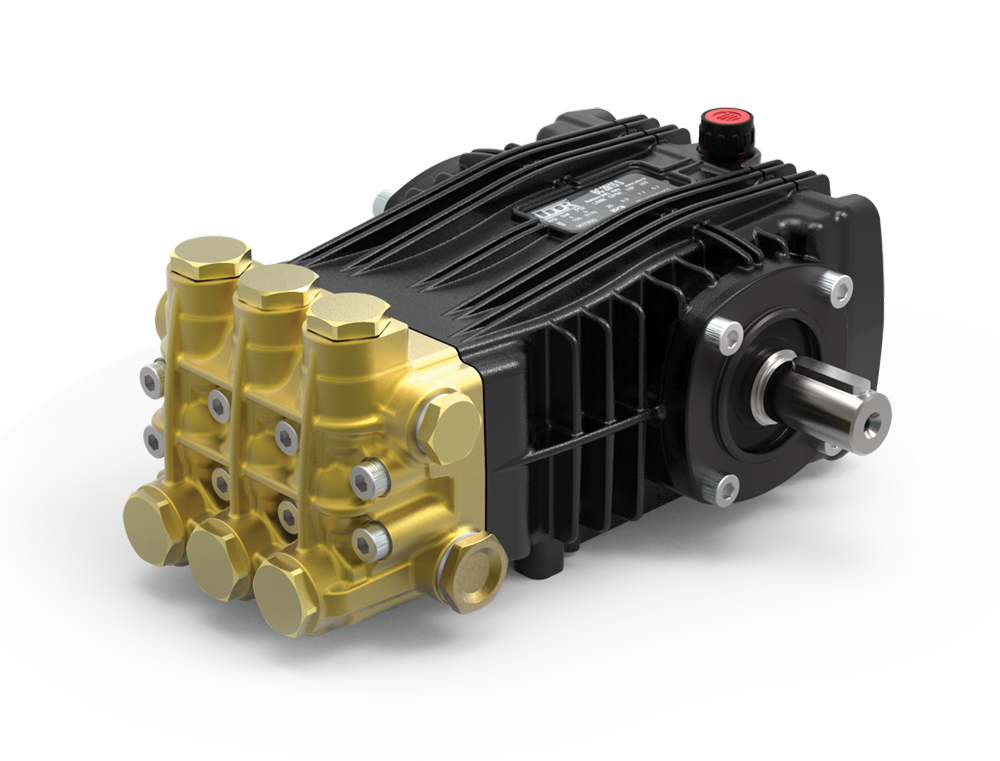

Udor BKC-15/30 Plunger Pump with 24mm Solid Shaft, 4 GPM, 4650 PSI

Udor BKC-15/30 Plunger Pump with 24mm Solid Shaft, 4 GPM, 4650 PSI

Brand:
Udor
Weight:
30.0 lb
Item #
BKC1530S
Skip to product information
1 of 1

Udor BKC-15/30 Plunger Pump with 24mm Solid Shaft, 4 GPM, 4650 PSI

Udor BKC-15/30 Plunger Pump with 24mm Solid Shaft, 4 GPM, 4650 PSI

Brand:
Udor
Weight:
30.0 lb
Item #
BKC1530S

Regular price $640.65
Sale price $640.65 Regular price List Price: $1,281.30

Earn 1,922 points with this purchase.

View full details

Collapsible content

Product Overview

  • Heavy Duty Brass Manifold with External and Internal Bracing
  • Heavy Duty Bronze or High Strength Aluminum Alloy Connecting Rods
  • Large Diameter Brass Valve Caps with Increased Thread Depth
  • Reinforcing Ring on Inlet and Discharge Ports
  • Deeper Back Cover for Increased Oil Capacity
  • 16 oz. Capacity Vented Oil Bath Crank Case
  • 1/2″ BSP-F Inlet. 3/8″ BSP-F Outlet
  • Max Fluid Temp, 160°F

Features

  • Max Flow: 4 GPM
  • Max Pressure: 4350
  • Heavy-duty brass manifold with external and internal bracing
  • Heavy-duty bronze or high-strength aluminum alloy connecting rods
  • Large-diameter brass valve caps with increased thread depth
  • Reinforcing ring on inlet and discharge ports
  • Deeper back cover for increased oil capacity
  • 15.4-ounce capacity vented oil bath crankcase
  • 1/2-inch BSP-F inlet; 3/8-inch BSP-F outlet
  • Maximum fluid temperature: 160°F

Parts breakdown

Diagram

Diagram parts
