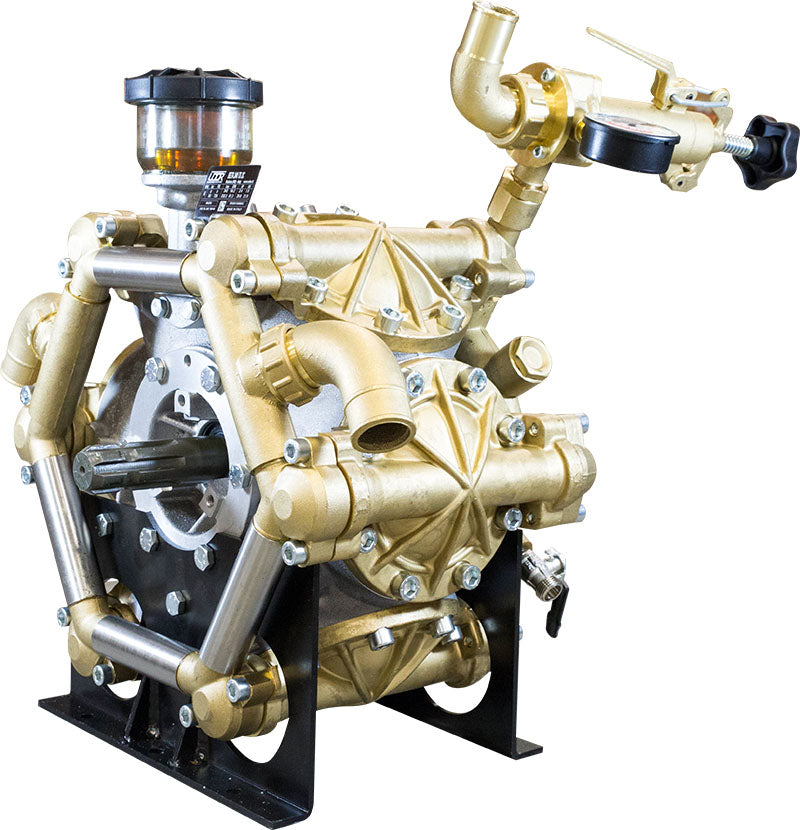

Udor BETA-240/CC Diaphragm Pump

Udor BETA-240/CC Diaphragm Pump

Brand:
Udor
Weight:
200.0 lb
Item #
BETA240CC
Skip to product information
1 of 1

Udor BETA-240/CC Diaphragm Pump

Udor BETA-240/CC Diaphragm Pump

Brand:
Udor
Weight:
200.0 lb
Item #
BETA240CC

Regular price $4,812.39
Sale price $4,812.39 Regular price List Price: $8,749.80

Earn 14,437 points with this purchase.

View full details

Collapsible content

Product Overview

For medium or high pressure sprayer systems, install this Udor BETA-240/CC Diaphragm Pump. Rated with a maximum pressure capability of 700 PSI and an upper flow limit of 64 GPM, it's perfectly suited for use in a variety of industrial, agricultural and commercial settings. This six-diaphragm pump comes with a regulator unit and an adjustable pressure controller, as well as a manual dump lever, dual ball valve outlets and a pressure measurement component.

Manufacturer description

BETA-240/CC high pressure, high volume diaphragm pumps are excellent for various horticultural and agricultural spraying applications. Simplicity of design and common parts allow easy and affordable maintenance. UDOR BETA Series Pumps Have Brass Heads, Stainless Steel And Brass Manifolds, Steel Connecting Rods, Mounting Rails And A Dual 1-3/8" Six Spline Male Shaft. Six diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 64 gpm
  • Max pressure: 700 psi
  • Includes 6005.15 control unit and dual 1-3/8" 6-spline male PTO shafts
  • Port sizes: (2) 1-1/2" HB inlet, (2) 1/2" HB shutoffs and (2) 3/4" FNPT outlets, 1-1/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 6, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Heads: Brass
  • Manifolds: Brass and stainless steel
  • Max fluid temperature: 140°F
  • Weight: 200 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Crankcase
    • Ref No: 3
    • Part No: 000229
    • Qty Req: 1
    Our price: $603.74 List price: $727.40
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 2
    Our price: $18.27 List price: $22.01
  • Diaphragm Bolt (BETA-150/200/240, OMEGA-140/170, RO-70/160/210/250/320)
    • Ref No: 238
    • Part No: 0010203
    • Qty Req: 6
    Our price: $18.59 List price: $22.40
  • 1/2" Hose Barb
    • Ref No: 358
    • Part No: 020219
    • Qty Req: 2
    Our price: $10.29 List price: $12.40
  • Hose Barb Elbow (BETA-150/200/240)
    • Ref No: 378
    • Part No: 020284
    • Qty Req: 2
    Our price: $88.23 List price: $106.30
  • Piston Sleeve (BETA-150/240, OMEGA-140/170)
    • Ref No: 48
    • Part No: 020612
    • Qty Req: 6
    Our price: $190.24 List price: $229.20
  • Oil Cap
    • Ref No: 559
    • Part No: 020822
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Pump Body (BETA-200/240, RO-320)
    • Ref No: 652
    • Part No: 020965
    • Qty Req: 1
    Our price: $1,820.36 List price: $2,193.20
  • Bearing (BETA-200/240, RO-320)
    • Ref No: 740
    • Part No: 021609
    • Qty Req: 2
    Our price: $330.26 List price: $397.90
  • Bearing (BETA-150/200/240, OMEGA-140/170)
    • Ref No: 705
    • Part No: 021411
    • Qty Req: 2
    Our price: $401.06 List price: $483.20
  • Spacer (BETA-150/200/240, RO-320, OMEGA-140/170)
    • Ref No: 786
    • Part No: 0030102
    • Qty Req: 2
    Our price: $127.07 List price: $153.10
  • Diaphragm Washer
    • Ref No: 787
    • Part No: 030103
    • Qty Req: 6
    Our price: $13.61 List price: $16.40
  • Flange (BETA-150/200/240, OMEGA-140/170, RO-320)
    • Ref No: 902
    • Part No: 0050146
    • Qty Req: 1
    Our price: $308.59 List price: $371.80
  • Oil Reservoir Extension
    • Ref No: 932
    • Part No: 0501B1
    • Qty Req: 1
    Our price: $85.82 List price: $103.40
  • Barb Nut
    • Ref No: 1034
    • Part No: 060409
    • Qty Req: 2
    Our price: $9.55 List price: $11.50
  • Barb Nut
    • Ref No: 1036
    • Part No: 060448
    • Qty Req: 2
    Our price: $67.81 List price: $81.70
  • Gasket
    • Ref No: 1071
    • Part No: 060505
    • Qty Req: 2
    Our price: $1.83 List price: $2.20
  • Ball Valve-Right
    • Ref No: 1124
    • Part No: 060845
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Piston Diaphragm Buna (Optional)
    • Ref No: 1290
    • Part No: 090301
    • Qty Req: 6
    Our price: $40.26 List price: $48.50
  • O-Ring
    • Ref No: 1365
    • Part No: 110101
    • Qty Req: 12
    Our price: $4.15 List price: $5.00
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 12
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 1
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1385
    • Part No: 110132
    • Qty Req: 1
    Our price: $6.97 List price: $8.40
  • O-Ring
    • Ref No: 1406
    • Part No: 110117
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1409
    • Part No: 110168
    • Qty Req: 1
    Our price: $5.81 List price: $7.00
  • O-Ring
    • Ref No: 1415
    • Part No: 110177
    • Qty Req: 2
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1420
    • Part No: 110171
    • Qty Req: 1
    Our price: $10.29 List price: $12.40
  • Mounting Rail
    • Ref No: 1468
    • Part No: 120252
    • Qty Req: 2
    Our price: $60.26 List price: $72.60
  • Oil Reservoir
    • Ref No: 1492
    • Part No: 120330
    • Qty Req: 1
    Our price: $49.97 List price: $60.20
  • Elbow
    • Ref No: 1505
    • Part No: 120345
    • Qty Req: 1
    Our price: $144.92 List price: $174.60
  • Elbow
    • Ref No: 1506
    • Part No: 120346
    • Qty Req: 5
    Our price: $126.33 List price: $152.20
  • Elbow
    • Ref No: 1508
    • Part No: 120351
    • Qty Req: 6
    Our price: $143.67 List price: $173.10
  • Piston
    • Ref No: 1571
    • Part No: 120508
    • Qty Req: 6
    Our price: $107.90 List price: $130.00
  • Valve Assembly
    • Ref No: 1709
    • Part No: 600608
    • Qty Req: 12
    Our price: $42.08 List price: $50.70
  • Oil Reservoir Assembly
    • Ref No: 1741
    • Part No: 603302
    • Qty Req: 1
    Our price: $84.49 List price: $101.80
  • Washer
    • Ref No: 18
    • Part No: 140309
    • Qty Req: 9
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 5
    Our price: $0.94 List price: $1.13
  • Connecting Rod Pin
    • Ref No: 1962
    • Part No: 150201
    • Qty Req: 6
    Our price: $22.00 List price: $26.50
  • Snap Ring
    • Ref No: 2046
    • Part No: 150602
    • Qty Req: 12
    Our price: $1.91 List price: $2.30
  • Snap Ring
    • Ref No: 2052
    • Part No: 150616
    • Qty Req: 1
    Our price: $4.90 List price: $5.90
  • Piston Ring
    • Ref No: 2111
    • Part No: 150905
    • Qty Req: 6
    Our price: $16.85 List price: $20.30
  • Connecting Rod
    • Ref No: 2158
    • Part No: 151925
    • Qty Req: 6
    Our price: $51.29 List price: $61.80
  • Inlet Manifold Tube
    • Ref No: 2189
    • Part No: 160120
    • Qty Req: 4
    Our price: $83.17 List price: $100.20
  • Inlet Tube
    • Ref No: 2228
    • Part No: 160226
    • Qty Req: 2
    Our price: $98.77 List price: $119.00
  • Manifold Plug
    • Ref No: 2247
    • Part No: 160374
    • Qty Req: 1
    Our price: $13.70 List price: $16.50
  • Plug
    • Ref No: 22
    • Part No: 160344
    • Qty Req: 1
    Our price: $4.73 List price: $5.70
  • Head
    • Ref No: 2329
    • Part No: 160454
    • Qty Req: 6
    Our price: $523.56 List price: $630.80
  • Discharge Manifold
    • Ref No: 2361
    • Part No: 160522
    • Qty Req: 1
    Our price: $397.07 List price: $478.40
  • Bolt
    • Ref No: 2465
    • Part No: 180403
    • Qty Req: 6
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2473
    • Part No: 180454
    • Qty Req: 2
    Our price: $2.24 List price: $2.70
  • Bolt
    • Ref No: 2582
    • Part No: 180504
    • Qty Req: 6
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: 2584
    • Part No: 180506
    • Qty Req: 3
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 2585
    • Part No: 180508
    • Qty Req: 48
    Our price: $3.74 List price: $4.50
  • Ball Valve-Left
    • Ref No: 5003
    • Part No: 060846
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Piston/Rod Assembly
    • Ref No: 5311
    • Part No: 601537
    • Qty Req: 6
    Our price: $240.12 List price: $289.30
  • Bolt
    • Ref No: 6000
    • Part No: 180507
    • Qty Req: 24
    Our price: $2.82 List price: $3.40
  • BAN DRIP VALV
    • Ref No: 6951
    • Part No: 000110
    • Qty Req: 2
    Our price: $276.64 List price: $291.20
  • O-Ring
    • Ref No: 7539
    • Part No: 1101D7
    • Qty Req: 24
    Our price: $4.32 List price: $5.20
  • PTO Safety Shield (Optional)
    • Ref No: 7650
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: 7653
    • Part No: 121915
    • Qty Req: 1
    Our price: $17.76 List price: $21.40
  • Piston Diaphragm Desmopan (Standard)
    • Ref No: 8112
    • Part No: 090333
    • Qty Req: 6
    Our price: $71.13 List price: $85.70
