Triple Nozzle Body for Wet Boom (Clamp on 3/4" Pipe)

Triple Nozzle Body for Wet Boom (Clamp on 3/4" Pipe)

Brand:
TeeJet
Weight:
0.1 lb
Item #
24216A34NYB
1 1

Triple Nozzle Body for Wet Boom (Clamp on 3/4" Pipe)

Triple Nozzle Body for Wet Boom (Clamp on 3/4" Pipe)

Brand:
TeeJet
Weight:
0.1 lb
Item #
24216A34NYB

$10.53
$10.53 List Price: $17.55

Earn 32 points with this purchase.

See Details

View full details

Product Overview

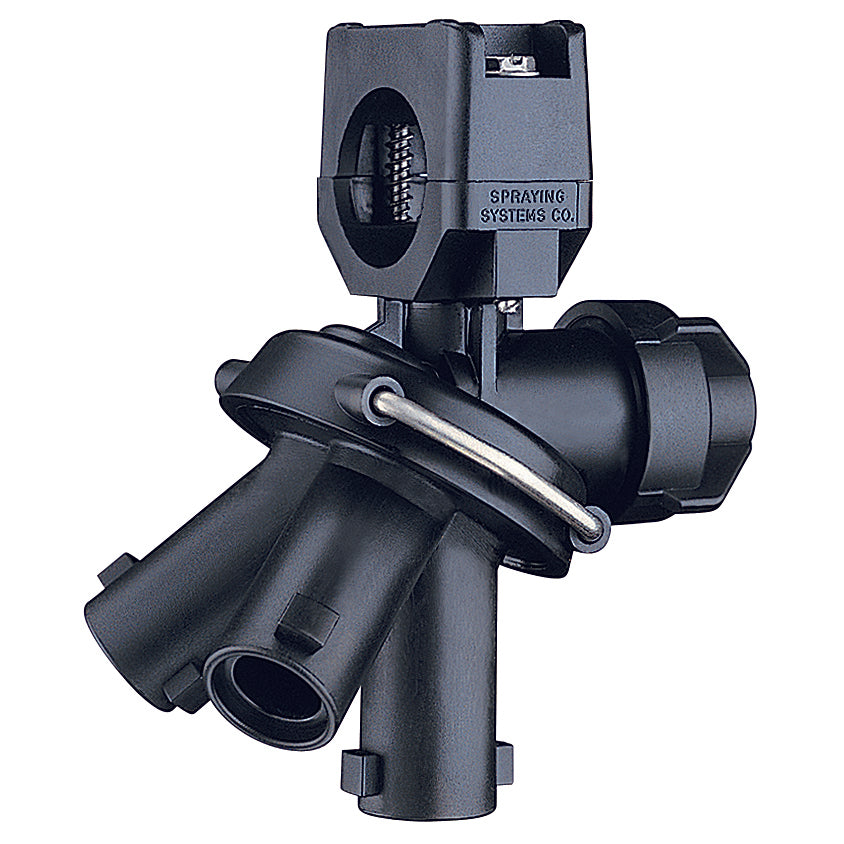

TeeJet nozzle bodies are common on agricultural and landscaping spray booms. This is a triple outlet nozzle body to clamp on a 3/4" pipe. Features ChemSaver drip-free shutoff - 10 psi check valve at nozzle.

Manufacturer description

-Provides three spray positions for easy change of spray tips.

-Shutoff position provided between each spray position.

-Features ChemSaver® drip-free shutoff. Requires 10 PSI (0.7 bar) at the nozzle to open check valve.

-Standard diaphragm of EPDM with optional Viton® available


Features

Maximum operating pressure: 150 PSI (10 bar)

Mounts to a 3/89 (9.5 mm) or 9/329 (7.0 mm) hole drilled in pipe or tubing.

Flow rate: 1.6 GPM (6.1 l/min) at 5 PSI (0.34 bar) pressure drop, 2.26 GPM (8.6 l/min) at 10 PSI (0.69 bar) pressure drop.
