TriggerJet 22670 24" Poly Ext 1/4" Shank

TriggerJet 22670 24" Poly Ext 1/4" Shank

Brand:
TeeJet
Weight:
2.0 lb
Item #
22670PP24300
1 review
Skip to product information
1 of 1

TriggerJet 22670 24" Poly Ext 1/4" Shank

TriggerJet 22670 24" Poly Ext 1/4" Shank

Brand:
TeeJet
Weight:
2.0 lb
Item #
22670PP24300
1 review

Regular price $46.93
Sale price $46.93 Regular price List Price: $78.22

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 141 points with this purchase.

View full details

Collapsible content

Product Overview

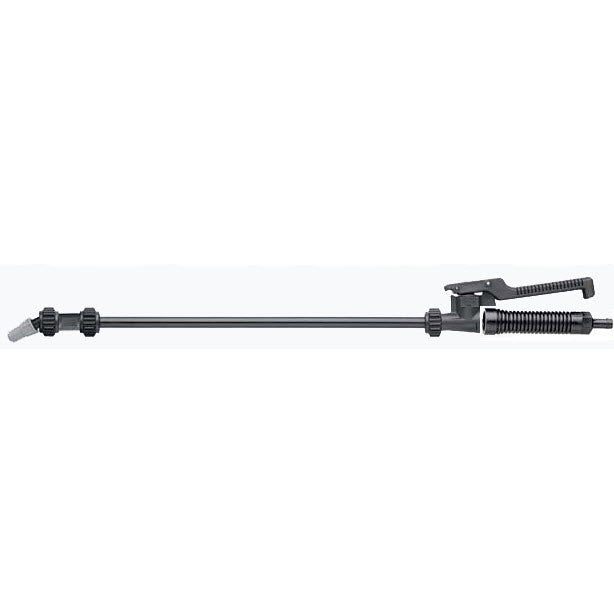

TriggerJet 22670-PP-24-300.

24" Poly Extension, 1/4" Hose Shank Inlet Connection, 150 psi max.

The 22670 TriggerJet spray gun kit combines the 22650 TriggerJet spray gun with an extension wand and the items listed in features. Maximum pressure rating is 150 PSI.

Features:

-22650 TriggerJet spray gun with choice of 1/4" or 3/8" Hose Shank an a 1/4" NPT or BSPT (F) thread inlet connection.

-Trigger lock permits locking gun in an open position for continuous flow (optional).

-22665 extension wand with choice of 15" or 24" lengths.

-38720-PPB-X8 adjustable ConeJet spray tip with Viton O-Ring.

-CP22673-PP 45º and CP22664-PP straight adapters.

-Accepts all standard TeeJet spray tips and tip strainers.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Trigger Lock
    • Ref No: 1
    • Part No: CP22656NY
    • Qty Req: 1
    Our price: $1.78 List price: $2.97
  • Groove Pin
    • Ref No: 2
    • Part No: CP22671IZP
    • Qty Req: 1
    Our price: $1.15 List price: $1.91
  • Groove Pin
    • Ref No: 3
    • Part No: CP22672IZP
    • Qty Req: 1
    Our price: $1.15 List price: $1.91
  • Trigger
    • Ref No: 4
    • Part No: CP22655PP
    • Qty Req: 1
    Our price: $3.12 List price: $5.20
  • Spring Retainer
    • Ref No: 5
    • Part No: CP22658PP
    • Qty Req: 1
    Our price: $2.12 List price: $3.54
  • Spring
    • Ref No: 6
    • Part No: CP22660PHSS
    • Qty Req: 1
    Our price: $1.18 List price: $1.97
  • Stem
    • Ref No: 7
    • Part No: CP22657NY
    • Qty Req: 1
    Our price: $1.63 List price: $2.71
  • Gasket, Neoprene
    • Ref No: 8
    • Part No: CP22676NEO
    • Qty Req: 1
    Our price: $1.40 List price: $2.33
  • Washer
    • Ref No: 9
    • Part No: CP22659PP
    • Qty Req: 1
    Our price: $2.12 List price: $3.54
  • Diaphragm, Viton
    • Ref No: 10
    • Part No: CP22661VI
    • Qty Req: 1
    Our price: $4.11 List price: $6.85
  • Body
    • Ref No: 11
    • Part No: CP22651PP
    • Qty Req: 1
    Our price: $8.00 List price: $13.33
  • O-Ring, Viton
    • Ref No: 12
    • Part No: CP77172016VI
    • Qty Req: 1
    Our price: $1.62 List price: $2.70
  • Gasket, Viton
    • Ref No: 13
    • Part No: CP39334VI
    • Qty Req: 1
    Our price: $0.98 List price: $1.64
  • 1/4" Hose Shank Handle
    • Ref No: 14C
    • Part No: CP2265314PP
    • Qty Req: 1
    Our price: $5.18 List price: $8.63
  • O-Ring, Viton
    • Ref No: 15
    • Part No: CP77172110VI
    • Qty Req: 2
    Our price: $0.89 List price: $1.49
  • Cap
    • Ref No: 16
    • Part No: CP22668PP
    • Qty Req: 2
    Our price: $1.42 List price: $2.37
  • 24" Extension Tube
    • Ref No: 17A
    • Part No: CP2266324FRP
    • Qty Req: 1
    Our price: $14.93 List price: $24.88
  • Straight Adapter
    • Ref No: 18
    • Part No: CP22664PP
    • Qty Req: 1
    Our price: $1.72 List price: $2.86
  • Core, Poly (Black)
    • Ref No: 19
    • Part No: CP387221PP
    • Qty Req: 1
    Our price: $4.45 List price: $7.42
  • O-Ring
    • Ref No: 20
    • Part No: CP77175EPR
    • Qty Req: 1
    Our price: $2.27 List price: $3.79
  • Tip Body (Brown)
    • Ref No: 22
    • Part No: CP3872112PP
    • Qty Req: 1
    Our price: $4.68 List price: $7.80
  • Tip Body (Orange)
    • Ref No: 22
    • Part No: CP3872118PP
    • Qty Req: 1
    Our price: $4.68 List price: $7.80
  • Tip Body (Gray)
    • Ref No: 22
    • Part No: CP387218PP
    • Qty Req: 1
    Our price: $4.68 List price: $7.80
