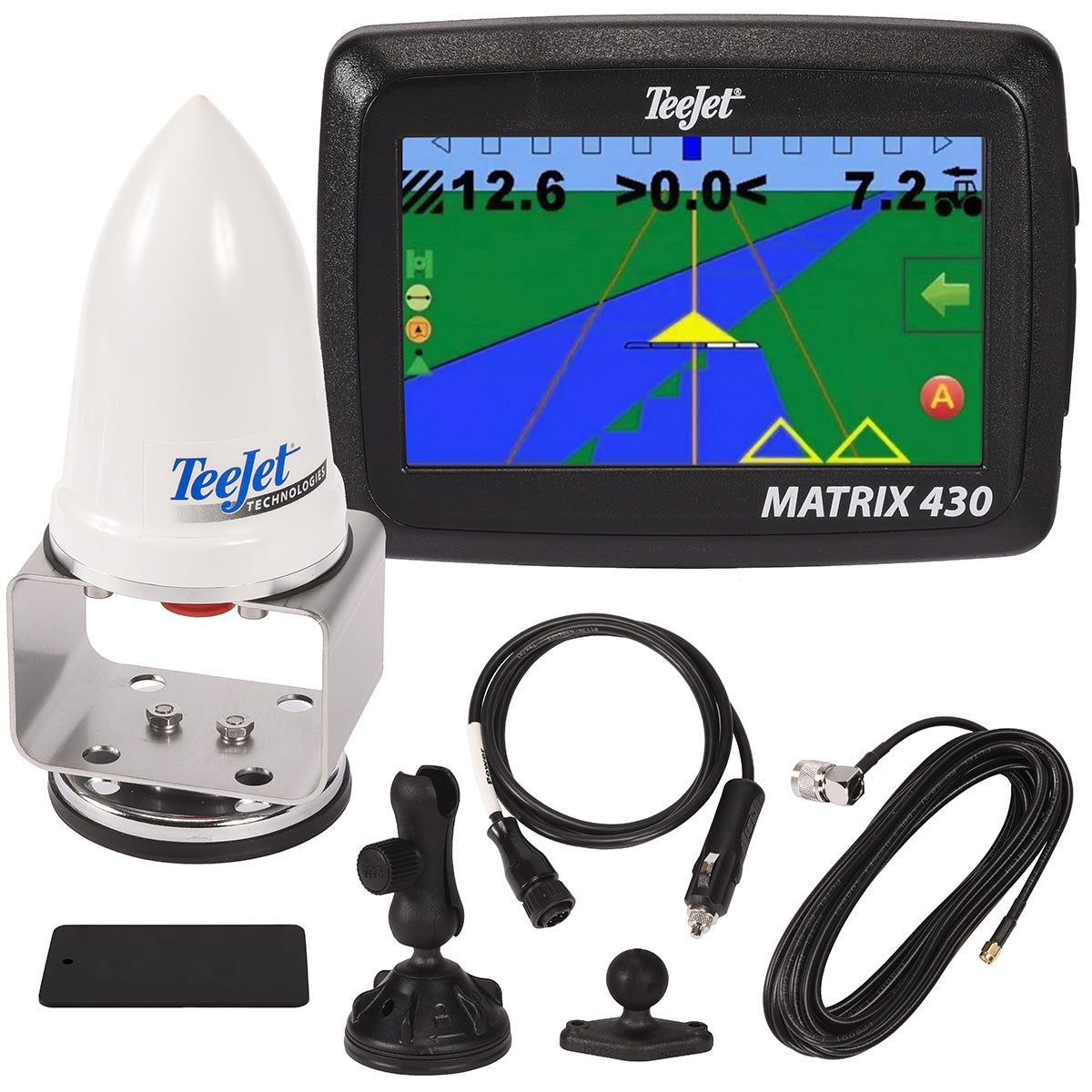

TeeJet Matrix 430 GPS Guidance System w/ RXA-30 Antenna & US Lighter Connection

TeeJet Matrix 430 GPS Guidance System w/ RXA-30 Antenna & US Lighter Connection

Brand:
TeeJet
Weight:
4.0 lb
Item #
GD430GLOR30L
2 reviews
Skip to product information
1 of 1

TeeJet Matrix 430 GPS Guidance System w/ RXA-30 Antenna & US Lighter Connection

TeeJet Matrix 430 GPS Guidance System w/ RXA-30 Antenna & US Lighter Connection

Brand:
TeeJet
Weight:
4.0 lb
Item #
GD430GLOR30L
2 reviews

Regular price $2,008.02
Sale price $2,008.02 Regular price List Price: $2,510.03

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 6,024 points with this purchase.

View full details

Collapsible content

Product Overview

Teejet is the brand farmers know and trust to help make the job easier and keep costs down. The Matrix 430 GPS Guidance system is the perfect example. Affordable and simple to use it is a must have for your sprayer. Reduce skips and overlaps while saving time - you won't regret it!

Manufacturer description

GPS guidance is no longer too complicated or too costly. Easy operation and affordable pricing make Matrix 430 the best value in GPS guidance. An on-screen lightbar plus coverage mapping reduce skips and overlaps to maximize crop protection. Matrix 430 is a great upgrade from foam markers and lightbars for spraying and spreading.

Key Features:

-Easy to install, easy to operate and easy to move between machines.

-Compact size allows mounting in front of steering wheel for easy viewing during field operation

-Calculates field area, counts applied acres and produces Google Earth coverage maps

-Provides warning sound when entering into previously applied areas

Features

Versatile GNSS guidance in a compact, portable package

**This model has the RXA-30 antenna and lighter connection. Patch antenna and other connection types available. Please contact customer service for assistance selecting the correct part number.**

• High-contrast, full-color, 4.3 in / 110 mm graphic touchscreen display provides superior visibility in bright light conditions
• Full time, on screen numeric display of cross-track error with user selectable display of two additional parameters including: worked area, worked time and ground speed
• High-quality, internal GPS/GLONASS engine with ClearPath technology that enhances GNSS performance in areas where reception is poor or in regions where SBAS differential correction is not readily available
• Optional RXA-30 antenna provides improved reception and noise rejection for situations where GNSS signals may be weak or partially obstructed • Minimal setup needed before operating
• Guidance modes include: Straight AB, Curved AB, Circle Pivot, and Last Pass
• Return-to-point feature allows operator to easily resume jobs or mark field hazards
• Boundary function allows for easy and precise measurement of field area
• Implement ON/OFF status can be manually activated on screen for single or multiple sections or for single section only with status detect wire
• Applied alert provides operator with audible alarm when entering into previously applied areas
• Area counter measures and displays applied area throughout application
• Elapsed time counter measures amount of time spent on current job
• Simple reporting function provides coverage reports in .kml or .pdf format downloaded via USB port

Parts breakdown

Diagram

Diagram parts

Parts list

Customer Reviews
5.0 Based on 2 Reviews
5 ★
100%
2
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • skips
  • speed
  • info
  • circle
  • line
  • pass
  • area
  • turns
  • understanding
  • geezer
GS
05/21/2022
Gregory S.
United States United States
  • Use Case Agriculture
  • Ease of Use Easy
  • Was Customer Service Helpful? Yes

Tee jet matrix 430

After a bit of a learning curve, the matrix 430 works just like I’d hoped it would, and even has some features that my old unit didn’t offer. Overall very pleased with it.

WW
09/15/2021
Willard W.
United States United States
  • Use Case Agriculture
  • Ease of Use Very Easy
  • Was Customer Service Helpful? Yes

TeeJet Matrix 430

Out of the box, I had bought the 430 with the GPS antenna, and cigarette lighter power source. I was going to use on small plots less than 15 acres. The initial set up was simple for a geezer. It took a couple passes to get the total understanding of what I was seeing. A lot of valuable info is shown on the screen. Examples-ground speed, current pass, upcoming line, etc. I have tried the AB straight, AB curve settings but not the circle. It was great, I’m glad I invested the money. Going back after to check skips the only area was at turns, meaning I needed to spray wider turn rows. I was using a 60 gallon spray rig in back of my UTV with 26 foot booms. I have since bought a battery connection for my tractor to use larger sprayer and fertilizer spreader. I feel the only negative has been user error and have improved in that category. Another nice piece was to mark you spot where stopped to refill was a plus.
