Solo Diaphragm Pump Cylinder Assembly

Solo Diaphragm Pump Cylinder Assembly

Brand:
Solo
Weight:
1.7 lb
Item #
4400221P
1 1

Solo Diaphragm Pump Cylinder Assembly

Solo Diaphragm Pump Cylinder Assembly

Brand:
Solo
Weight:
1.7 lb
Item #
4400221P

$34.95
$34.95 List Price: $34.95

Earn 105 points with this purchase.

See Details

View full details

Product Overview

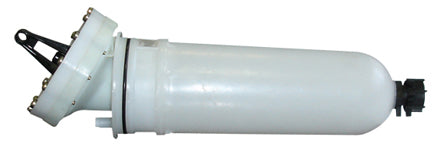

Solo Diaphragm Pump Cylinder Assembly

Complete diaphragm pump cylinder assembly includes a pressure regulator with four settings: 15, 30, 45 and 60 psi and all required seals and “O”-rings, clamp and hardware.

Parts breakdown

Diagram

Diagram parts

Parts list

  • 62139
    • Ref No: 12
    • Part No: 62139
    • Qty Req: 1
    Our price: $2.49
  • Valve Plate
    • Ref No: 20
    • Part No: 4061257
    • Qty Req: 2
    Our price: $4.89
  • Housing (Diaphragm)
    • Ref No: 60
    • Part No: 4073411
    • Qty Req: 1
    Our price: $12.89
  • Flange
    • Ref No: 61
    • Part No: 4073410
    • Qty Req: 1
    Our price: $8.69
  • Valve Assembly
    • Ref No: 63
    • Part No: 4400222
    • Qty Req: 1
    Our price: $14.99
  • Screw (Solo Diaphragm Pump Assembly)
    • Ref No: 64
    • Part No: 0018275
    • Qty Req: 13
    Our price: $1.65
  • Plunger
    • Ref No: 65
    • Part No: 4074247
    • Qty Req: 1
    Our price: $6.41
  • Diaphragm
    • Ref No: 66
    • Part No: 4074246
    • Qty Req: 1
    Our price: $10.80
  • Lever
    • Ref No: 67
    • Part No: 4074233
    • Qty Req: 1
    Our price: $4.75
  • Wrist Pin
    • Ref No: 68
    • Part No: 4031130
    • Qty Req: 1
    Our price: $6.00
  • "R" Connecting Bracket
    • Ref No: 69
    • Part No: 4074234
    • Qty Req: 1
    Our price: $3.19
  • "L" Connecting Bracket 21
    • Ref No: 70
    • Part No: 4074243
    • Qty Req: 1
    Our price: $4.00
  • Bolt (Solo Diaphragm Pump Assembly)
    • Ref No: 72
    • Part No: 0010141
    • Qty Req: 2
    Our price: $2.75
  • O-Ring
    • Ref No: 106
    • Part No: 0062324
    • Qty Req: 1
    Our price: $1.65
