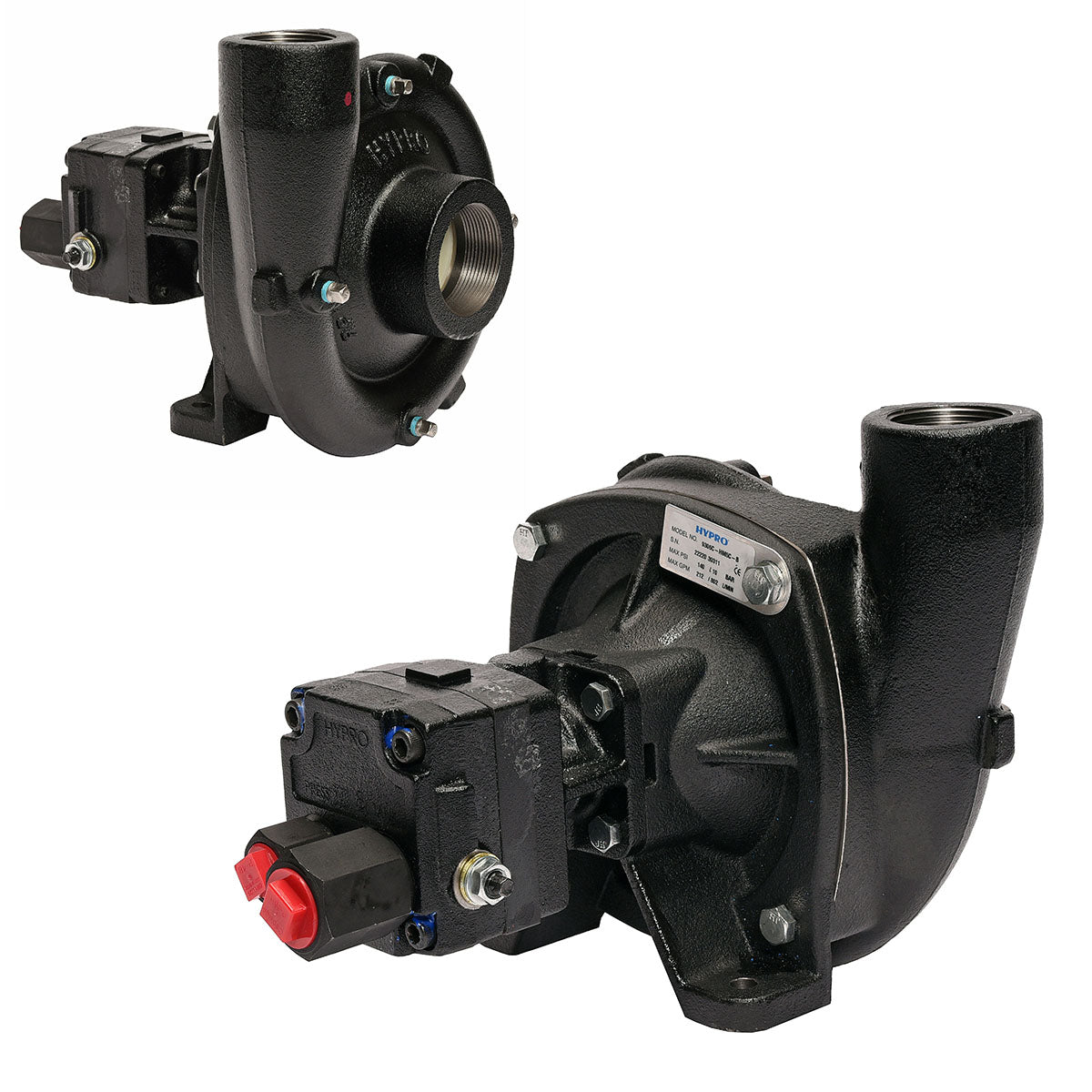

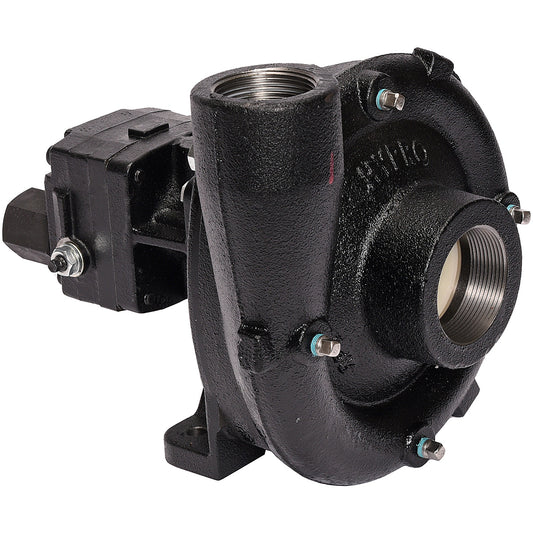

The John Deere Hydraulic Driven Centrifugal Pump provides one of the smoothest and most effective pumping performances. The heavy-duty pump from Hypro can be mounted on a tractor or sprayer, making it perfect for whatever spraying job you face. It can be used with many agricultural or industrial fluids, such as insecticide, emulsives, herbicides, liquid fertilizer, or just plain water.

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro "close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Download Product Manual

• Max flow: 212 gpm
• Max pressure: 140 psi
• Port sizes: 2" FNPT inlet, 1-1/2" FNPT outlet
• Housing: Cast iron
• Seal material: Life Guard silicon carbide (B)
• Impeller: Nylon
• Hydraulic system: Open/Closed, Max 17 gpm
• Hydraulic motor ports: 1/2"" NPT inlet, 3/4"" NPT outlet
• Hydraulic motor seal: Double-lip Teflon®
• Max fluid temperature: 140°F
• Weight: 33 lbs
