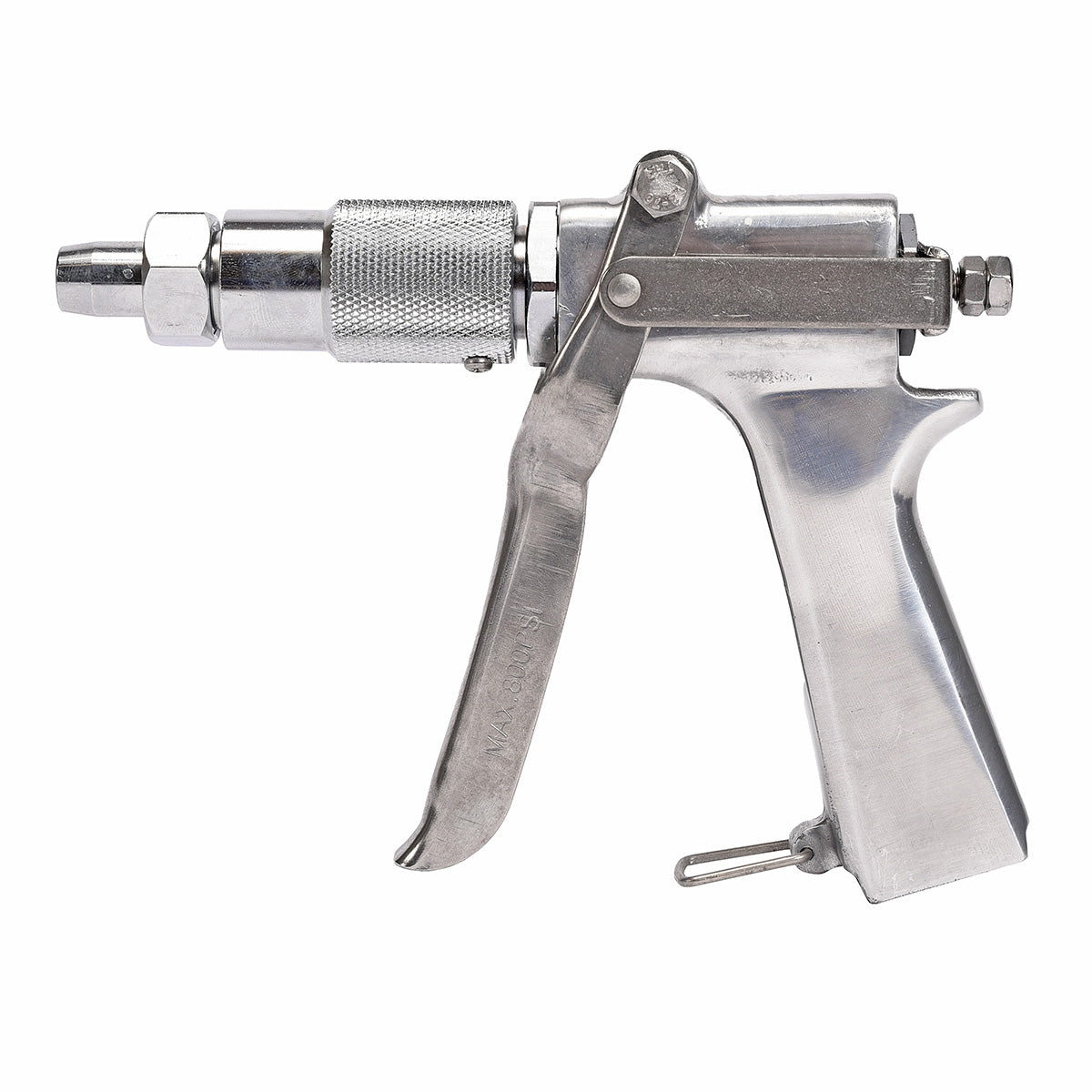

Greensmaster Spray Gun

Greensmaster Spray Gun

46 reviews
Item Code:
38505
Weight:
1.72 lb
Manufacturer:
Sprayer Depot
Our price:
$78.99
List price:
$149.99
Overview:

Designed like the Green Garde JD9®-C model, the Greensmaster Spray Gun has an adjustable stream and a maximum pressure rating of 800 psi. Perfect for tree and shrub applications, it uses the same nozzles and repair kits as the Green Garde JD9®-C. This product has a 1/2" female pipe thread inlet and comes standard with the large adjustable nozzle (3-8 gpm).

Download Product Manual

Manufacturer Description:

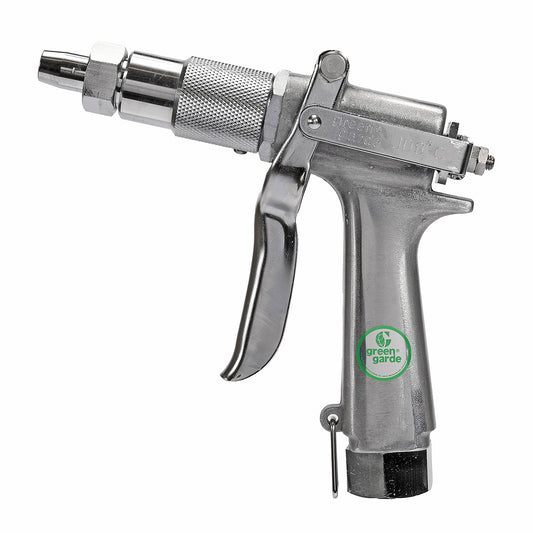

Heavy duty spray gun 800 psi max. Adjustable from fine mist to long distance pencil stream by turning the barrel. Effective for any tree and shrub application. This is a copy of the Green Garde JD9®-C Spray Gun. It has close to the same pressure rating as the Green Garde JD9®-C Spray Gun and uses the same nozzles and repair kits. Please note, it is not recommended that you attach the Green Garde® 38919 root feeder to this gun and the gun does not come with the 3/4" ght fitting or reference numbers 23 and 25 on the parts breakdown. Gun has 1/2" female pipe thread. JD9®-C High Pressure Spray Gun (Item Code 38500) has option to attach Green Garde® 38919 Root Feeder and comes with 3/4" garden hose coupling and seals (References 23, 24 and 25).

Features:

  • Max pressure: 800 psi

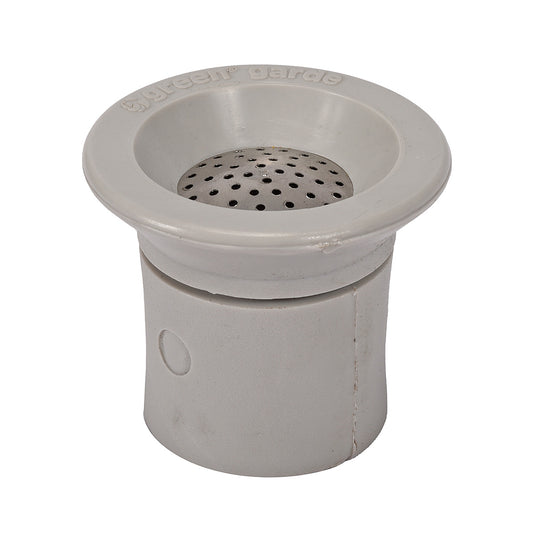

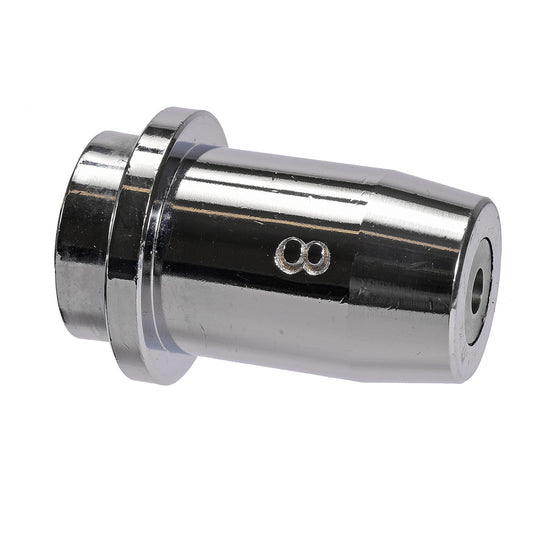

  • Nozzle: Equipped with 38602 Large Adjustable Nozzle (3-8 gpm), other sizes and showerhead nozzles available
  • Inlet: 1/2" FNPT

Parts breakdown

Parts breakdown parts

Parts list

Cap

  • Ref No: 1
  • Part No: 38516
  • Qty Req: 1
Our price: $9.25 List price: $11.00

O-Ring

  • Ref No: 3
  • Part No: 38517
  • Qty Req: 1
Our price: $4.91 List price: $5.45

O-Ring

  • Ref No: 6
  • Part No: 38519
  • Qty Req: 1
Our price: $2.61 List price: $2.75

Back-up Ring

  • Ref No: 7
  • Part No: 38521
  • Qty Req: 1
Our price: $2.45 List price: $2.80

Adjuster Body

  • Ref No: 8
  • Part No: 38524
  • Qty Req: 1
Our price: $61.65 List price: $68.50

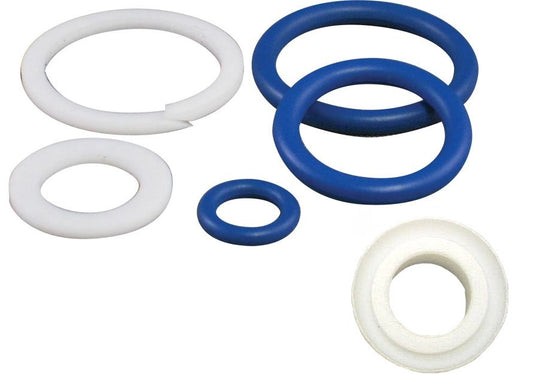

Teflon® Valve Seat

  • Ref No: 10
  • Part No: 38525
  • Qty Req: 1
Our price: $14.40 List price: $16.75

Valve Spring

  • Ref No: 12
  • Part No: 38527
  • Qty Req: 1
Our price: $8.66 List price: $9.62

Locking Nut

  • Ref No: 13
  • Part No: 38539
  • Qty Req: 1
Our price: $4.28 List price: $4.75

Stainless Steel Bolt

  • Ref No: 14
  • Part No: 38532
  • Qty Req: 1
Our price: $10.26 List price: $10.80

Trigger Assembly

  • Ref No: 15
  • Part No: 38531
  • Qty Req: 1
Our price: $29.75 List price: $35.00

Nut

  • Ref No: 16
  • Part No: 38538
  • Qty Req: 2
Our price: $2.24 List price: $2.49

Gland

  • Ref No: 17
  • Part No: 38536
  • Qty Req: 1
Our price: $14.69 List price: $16.32

O-Ring

  • Ref No: 18
  • Part No: 38537
  • Qty Req: 1
Our price: $4.65 List price: $5.08

Gland Packing

  • Ref No: 19
  • Part No: 38522
  • Qty Req: 1
Our price: $2.52 List price: $2.75

Stopper Clip

  • Ref No: 22
  • Part No: 38533
  • Qty Req: 1
Our price: $2.75 List price: $3.05

Garden Hose Washer

  • Ref No: 25
  • Part No: 38543
  • Qty Req: 1
Our price: $5.13 List price: $5.40
