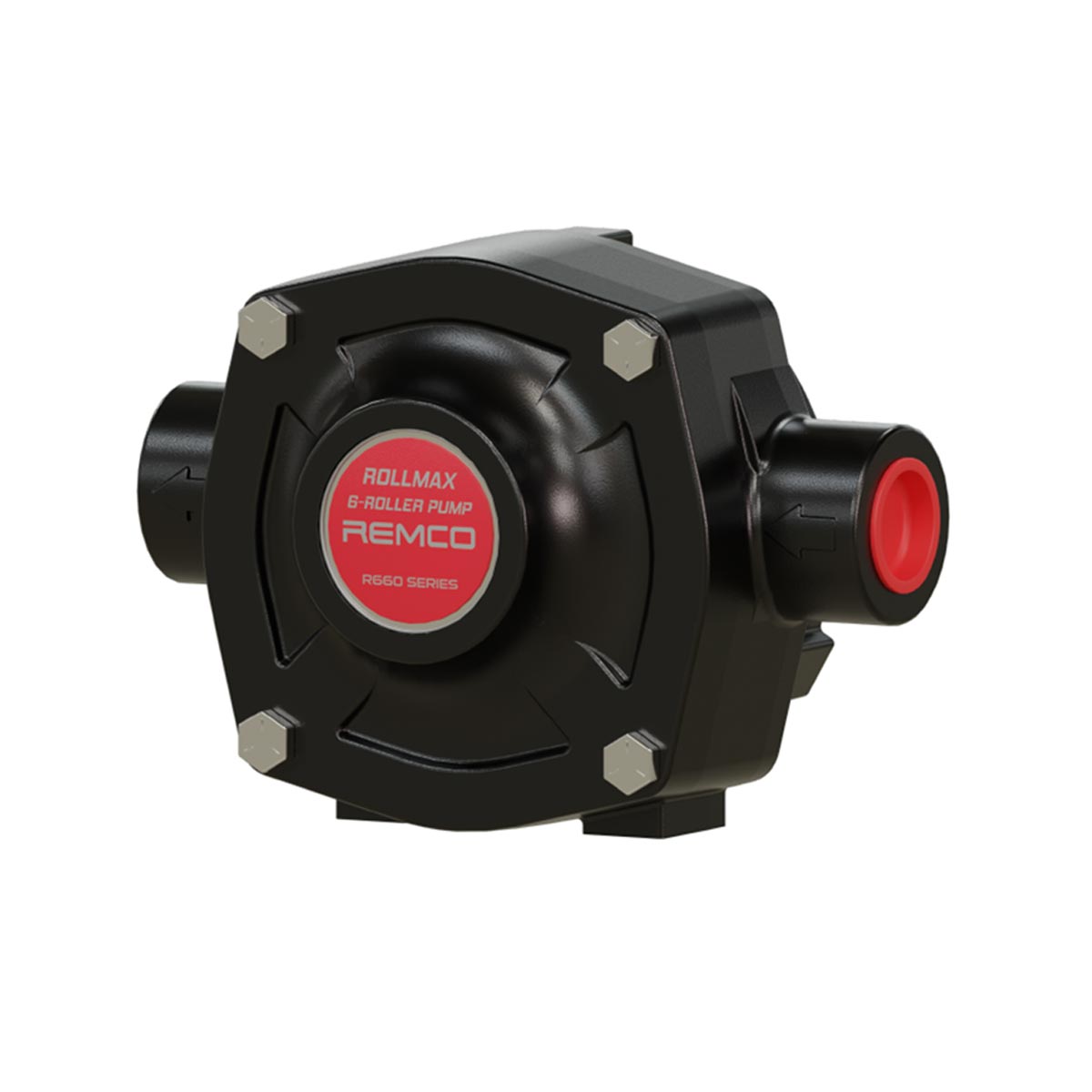

Remco R660C RollMax 6 Roller Pump, Cast Iron, CCW Rotation with 5/8” Shaft

The Remco RollMax cast iron 6 roller pump is built for agricultural and industrial spray applications. The cast iron housing is precision machined and ready to use with general ag and industrial chemicals. This roller pump is built to last with Remco’s proprietary Max Rollers that offer minimal wear and long-lasting performance.

RollMax 6 roller pumps are constructed with Viton seals for chemical resistance, 3/4” FNPT ports for maximum flow, and a 5/8” solid shaft for easy coupling. With counter-clockwise rotation, the RollMax 6 roller pump is designed to run off a PTO shaft at 540 and 1000 RPM using one of our superior strength multi-speed couplers. This 6 roller pump can also be run using a gas engine or electric motor up to 1200 RPM.

With a maximum output of 19.6 GPM and 150 PSI, RollMax is a professional-grade roller pump solution for heavy-duty spray applications. All RollMax roller pumps are rebuild-ready, saving time and money during the critical spray season.

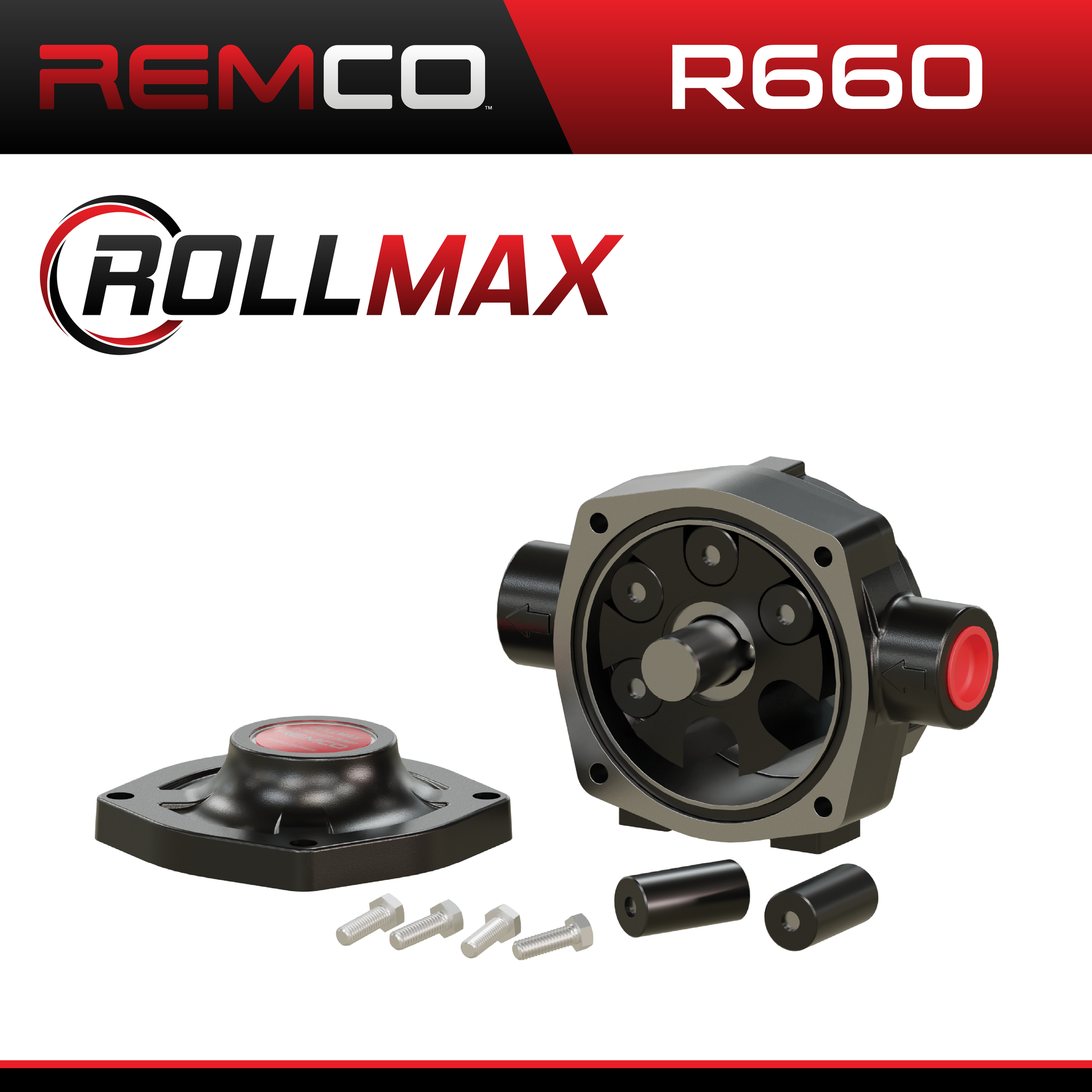

When rollers wear, simply loosen the four endplate bolts and carefully remove the endplate to inspect them. Using a RollMax repair kit, install the new Max Rollers, reinstall the endplate, and your RollMax pump is rebuilt and ready to spray.

Download Product Manual

• 19.6 GPM
• 150 PSI maximum operational pressure
• Cast iron housing to use with general Ag and industrial chemicals
• 540 to 1000 RPM counter clockwise rotation for PTO shaft drive, 1200 RPM maximum
• Rebuild ready- Field serviceability without disconnecting plumbing or shaft
• ¾" FNPT ports
• 5/8" sold shaft
