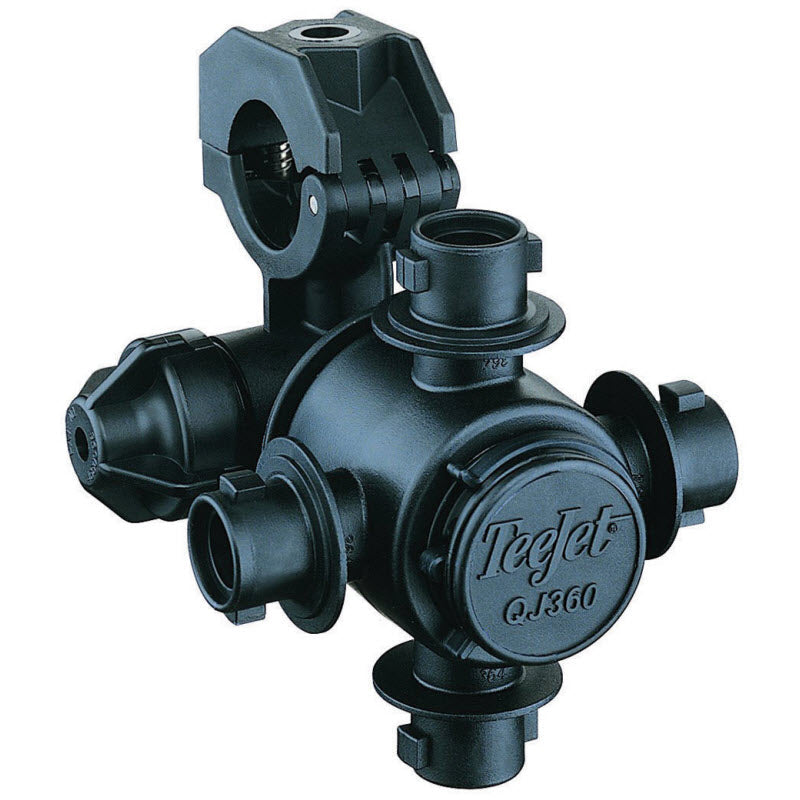

QJ364C-3/4-NYB Quick TeeJet Nozzle Body

QJ364C-3/4-NYB Quick TeeJet Nozzle Body

Brand:
TeeJet
Weight:
0.1 lb
Item #
QJ364C34NYB
Skip to product information
1 of 1

QJ364C-3/4-NYB Quick TeeJet Nozzle Body

QJ364C-3/4-NYB Quick TeeJet Nozzle Body

Brand:
TeeJet
Weight:
0.1 lb
Item #
QJ364C34NYB

Regular price $13.98
Sale price $13.98 Regular price List Price: $23.30

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 42 points with this purchase.

View full details

Collapsible content

Product Overview

QJ364C-3/4-NYB Quick TeeJet Nozzle Body for Wet Booms

To Clamp on 3/4" Pipe, 4 Spray Outlets

Features:

-Available with either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.

-Postive shutoff between each spray position.

-Automatic spray alignment using flat fan spray tips.

-Maximum operation pressure of 300 psi.

-Available in 20 mm, 25 mm, 1/2", 3/4" or 1" pipe connections.

-Includes ChemSaver diaphragm check valve for drip free shutoff. Standard diaphragm opens at 10 psi.

-Standard EPDM diaphragm with Viton available as an option.

-Flow Rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop.

-Mounts to a 3/8" (9.5 mm) hole drilled in pipe or tubing.

-Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16" or M8 bolt.

-Hinged upper clamp reduces assembly time and fits inside
