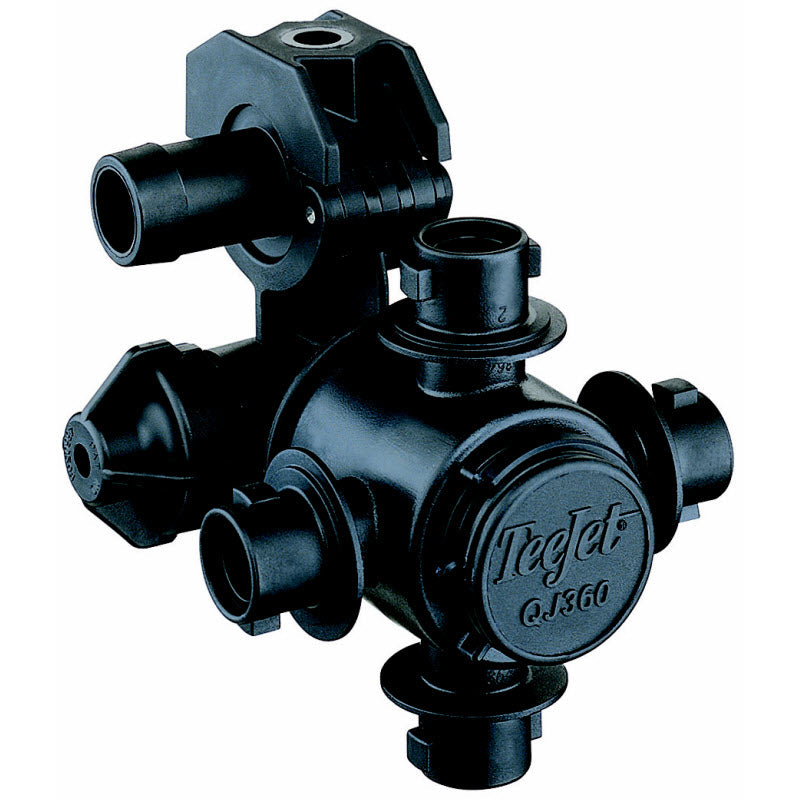

QJ364C-1000-1-NYB Quick TeeJet Nozzle Body for Dry Booms

Fits 1" Hose ID, 4 Spray Outlets, Single Hose Shank

Features:

-Available with either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.

-Postive shutoff between each spray position.

-Automatic spray alignment using flat fan spray tips.

-Maximum operation pressure of 300 psi.

-Available in 1/2", 3/4" or 1" single or double hose shanks.

-Includes ChemSaver diaphragm check valve for drip free shutoff. Standard diaphragm opens at 10 psi.

-Standard EPDM diaphragm with Viton available as an option.

-Durable design mounts body high on boom structure for maximum protection

-Flow Rate: 2.25 gpm with 5 psi pressure drop, 3.18 gpm with 10 psi pressure drop.

-Mounts to a 3/8" hold drilled in pipe or tubing.

-Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16" or M8 bolt.

-Hinged upper cl
