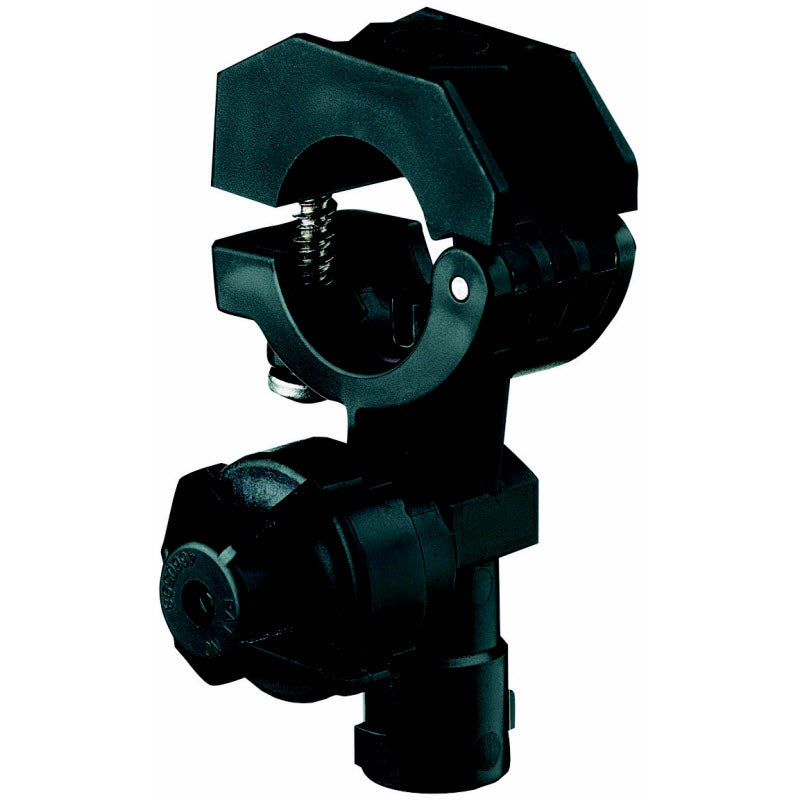

QJ17560A-1-NYB Quick TeeJet Single Nozzle Body for Wet Booms


Clamps on 1" Pipe

Features:

-Can be mounted to 20 mm, 25 mm, 1/2", 3/4" or 1" pipe or equivalent size tubing

-Features ChemSaver drip-free shutff that requires 10 PSI at the nozzle to open check valve

-Standard diaphragm of EPDM with optional Viton available

-Mounts to a 3/8" (9.5 mm) or 9/32" (7.0 mm) hole drilled in pipe or tubing

-All sizes include a mounting hole in upper clamp subassembly for mounting to flat surfaces

-Maximum operation of 300 PSI (20 bar)

-Flow rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) at 10 PSI (0.69 bar) pressure drop
