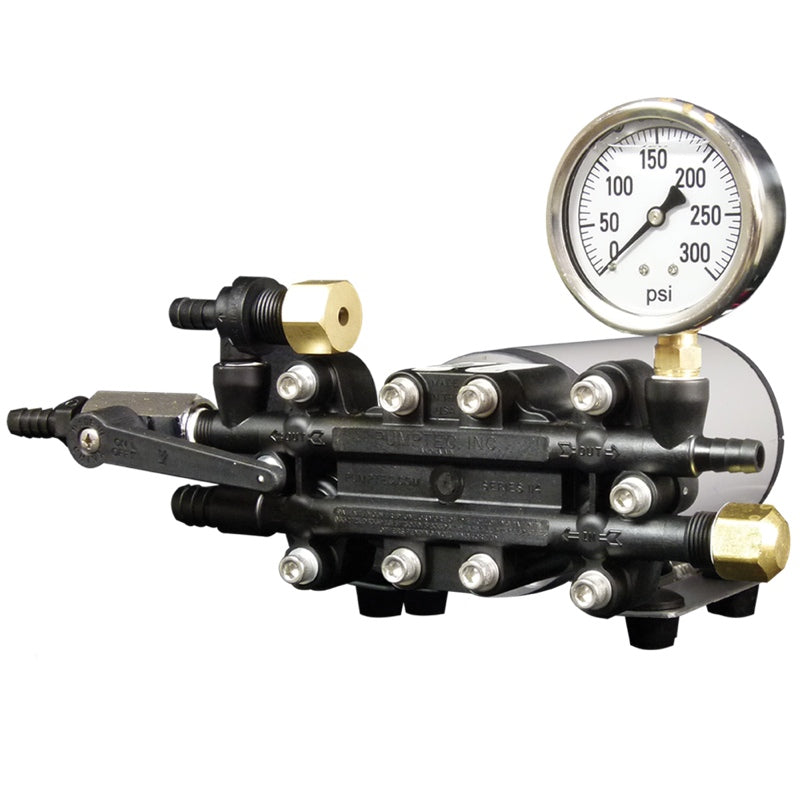

Pumptec 114T Spray Basic 12V Pump

Pumptec 114T Spray Basic 12V Pump

Item Code:
80326
Weight:
10.15 lb
Manufacturer:
Pumptec
Our price:
$398.51
List price:
$468.84
Overview:

For small spraying jobs, turn to Pumptec's Basic 12V Pump. With 1.15 gpm and 200 psi, it is as convenient as possible for spraying water or chemicals that do not require high flow or pressure. With a maximum amp draw of just 15 your battery won't drain quickly. It features a 1/2" HB inlet, two 3/8" HB outlets, and a 3/8" HB bypass.
QR codes on the new Pumptec manifolds will take you directly to their website service manuals.


Manufacturer Description:

Pumptec pump series 114T with plunger type design is the most efficient way possible to pressurize water. This efficiency produces up to 20% more pressure or flow for a given power input compared to competitive pumps. The series offers a variety of pump and motor combinations customized to meet specific application requirements. Typical applications include pressure cleaning, pest spraying and misting. All pumps are factory lubricated for long-life performance. The only tool to completely disassemble the pump to its basic components is a 3/16" hex wrench. Durability and performance results from exclusive use of premium materials. All metallic wetted parts are stainless steel. The pump is engineered and manufactured in nylon. The body offers chemical compatibility with a wide variety of chemicals. Epoxy and other coatings are available for high and low pH applications. Flow and pressure can be optimized to exactly match power input to nozzle size, and offers an assortment of eccentrics

Features:

  • Voltage: 12 VDC
  • Max flow: 1.15 gpm
  • Max pressure: 200 psi
  • Port sizes: 1/2" HB inlet, (2) 3/8" HB outlet & 3/8" HB bypass
  • Pump body: Nylon
  • Seal material: PTFE
  • Plunger: Stainless steel
  • Max fluid temperature: 140°F
  • Max amp draw: 15
  • Weight: 11 lbs

Parts breakdown

 Parts breakdown parts

Parts list
