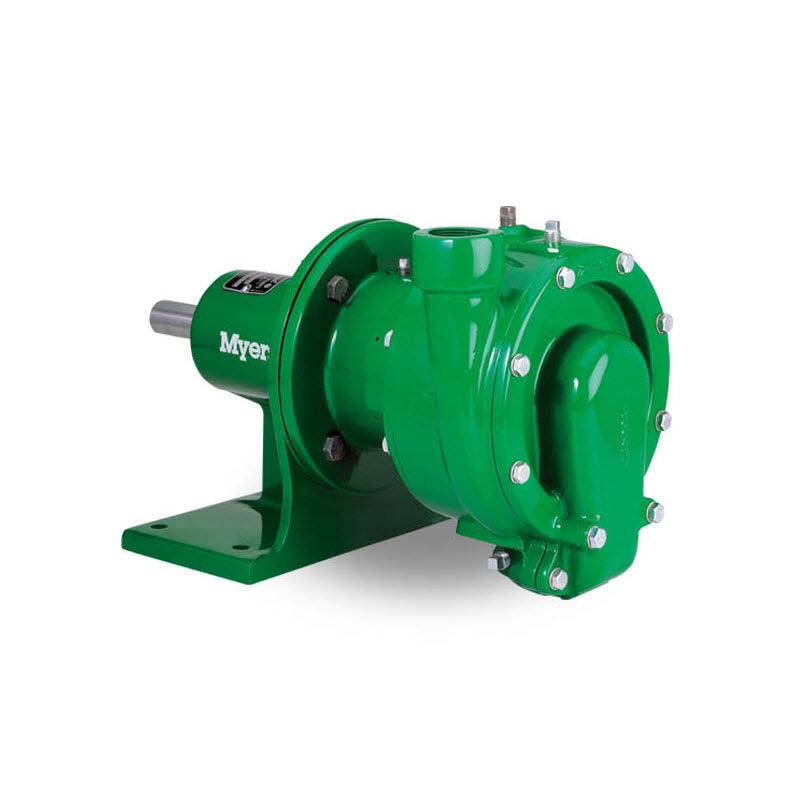

Myers I2C-7 Two Stage Centrifugal Pump

Myers I2C-7 Two Stage Centrifugal Pump

Brand:
Myers
Weight:
125.0 lb
Item #
I2C7
1 1

Myers I2C-7 Two Stage Centrifugal Pump

Myers I2C-7 Two Stage Centrifugal Pump

Brand:
Myers
Weight:
125.0 lb
Item #
I2C7

$2,378.30
$2,378.30 List Price: $2,798.00

Earn 7,135 points with this purchase.

See Details

View full details

Product Overview

Myers I2C-7 Two Stage Centrifugal Pump

Catalog Number:  15034E013

Features:

Suction/Discharge:  2" NPT x 1-1/2" NPT

Maximum Head Capability:  225 Feet

Flow Rate:  Up to 140 GPM

Impeller:  5-5/16" Diameter, Lead-Free Brass

Required Motor Size:  7-1/2 HP

Maximum Temperature:  220 Degrees F

Myers I2C and I2CI Two-Stage centrifugal pumps are designed and built for rugged continuous duty service.  This general service pump can be utilized in a wide variety of applications.  Over the years Myers multistage centrifugals have earned a reputation for dependable performance and quality workmanship, delivering maximum performance with smooth operation.

These high head (up to 400 feet) medium capacity (to 140 GPM) pumps are available in standard fitted (I2C) and all iron (I2CI) construction.  All frame moun

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bracket, Bearing
    • Ref No: 1
    • Part No: 15035D000
    • Qty Req: 1
    Our price: $518.30 List price: $575.89
  • Bearing, Ball
    • Ref No: 3
    • Part No: 11729A008
    • Qty Req: 2
    Our price: $73.80 List price: $82.00
  • Ring, Retaining, Bevel
    • Ref No: 4
    • Part No: 07756A011
    • Qty Req: 1
    Our price: $20.15 List price: $59.00
  • Screw
    • Ref No: 5
    • Part No: 19103A004
    • Qty Req: 4
    Our price: $3.60 List price: $4.00
  • Lock Washer
    • Ref No: 6
    • Part No: 05454A004
    • Qty Req: 4
    Our price: $6.30 List price: $7.00
  • Bracket, Seal, w/ Brass Wear Ring
    • Ref No: 7
    • Part No: 17548D001K
    • Qty Req: 1
    Our price: $715.50 List price: $795.00
  • Ring, Wear, Ni-Resist
    • Ref No: 8
    • Part No: 12934A001
    • Qty Req: 1
    Our price: $238.00 List price: $280.00
  • Shaft
    • Ref No: 9
    • Part No: 15037C000
    • Qty Req: 1
    Our price: $558.00 List price: $620.00
  • Slinger
    • Ref No: 10
    • Part No: 05059A263
    • Qty Req: 2
    Our price: $15.30 List price: $17.00
  • Seal, Rotary
    • Ref No: 11
    • Part No: 21181A016
    • Qty Req: 1
    Our price: $108.00 List price: $120.00
  • Retaining Ring
    • Ref No: 12
    • Part No: 12558A008
    • Qty Req: 1
    Our price: $19.80 List price: $22.00
  • Impeller, 5-5/16" Brass
    • Ref No: 13
    • Part No: 17549C003K
    • Qty Req: 1
    Our price: $435.60 List price: $484.00
  • Impeller, 5-5/16", Brass
    • Ref No: 14
    • Part No: 17550C003K
    • Qty Req: 1
    Our price: $435.60 List price: $484.00
  • Key
    • Ref No: 15
    • Part No: 05818A046
    • Qty Req: 1
    Our price: $11.05 List price: $13.00
  • Washer
    • Ref No: 16
    • Part No: 08818A002
    • Qty Req: 1
    Our price: $53.10 List price: $59.00
  • Screw
    • Ref No: 17
    • Part No: 17050A001
    • Qty Req: 1
    Our price: $49.50 List price: $55.00
  • Screw, 3/8-16 UNC x 7/8" Hex Hd.
    • Ref No: 18
    • Part No: 19101A011
    • Qty Req: 16
    Our price: $4.50 List price: $5.00
  • Retaining Ring
    • Ref No: 19
    • Part No: 07756A012
    • Qty Req: 1
    Our price: $18.70 List price: $22.00
  • O-Ring
    • Ref No: 20
    • Part No: 05876A127
    • Qty Req: 1
    Our price: $18.90 List price: $20.00
  • Case, Volute, w/Brass Wear Ring
    • Ref No: 21
    • Part No: 17547D001K
    • Qty Req: 1
    Our price: $220.00 List price: $250.00
  • Ring, Wear, Brass
    • Ref No: 22
    • Part No: 15044A000
    • Qty Req: 1
    Our price: $30.60 List price: $34.00
  • Gasket
    • Ref No: 24
    • Part No: 15041B010
    • Qty Req: 1
    Our price: $25.20 List price: $28.00
  • Brass Wear Ring
    • Ref No: 26
    • Part No: 15043A000
    • Qty Req: 1
    Our price: $60.30 List price: $67.00
  • Plug, 1/8 NPT Galv. Pipe
    • Ref No: 27
    • Part No: 05022A021
    • Qty Req: 1
    Our price: $4.50 List price: $5.00
  • Screw
    • Ref No: 28
    • Part No: 19101A028
    • Qty Req: 2
    Our price: $3.60 List price: $4.00
  • Washer
    • Ref No: 29
    • Part No: 05454A007
    • Qty Req: 19
    Our price: $2.70 List price: $3.00
  • Oil Cup
    • Ref No: 30
    • Part No: 20362A001
    • Qty Req: 1
    Our price: $110.50 List price: $130.00
