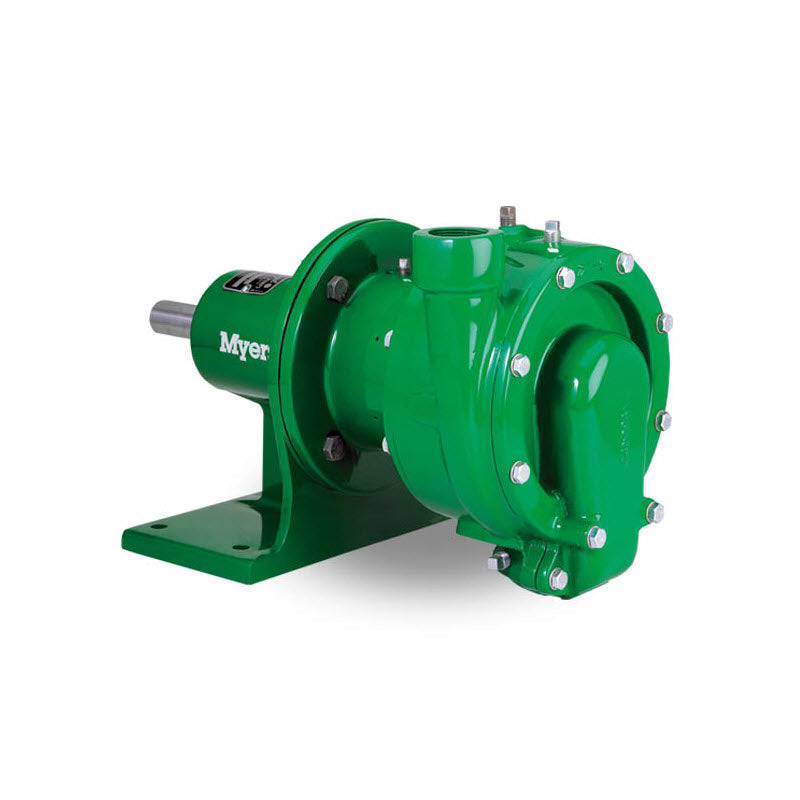

Myers I2C-20 Two Stage Centrifugal Pump

Myers I2C-20 Two Stage Centrifugal Pump

Brand:
Myers
Weight:
125.0 lb
Item #
I2C20

Regular price $2,856.00
Sale price $2,856.00 Regular price List Price: $4,760.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 8,568 points with this purchase.

View full details

Collapsible content

Product Overview

Keeping the farm irrigation flowing cleaning and regularly requires a hardworking, long-lasting pump. The I2C two-stage centrifugal pump from Myers helps improve irrigation efforts. Designed for continuous use, the I2C series is ideal for sprinkler systems, water transfer, irrigation and other agricultural and commercial purposes. From farms to car washes, this pump makes your business run more smoothly.

Manufacturer description

Myers® I2C and I2CI two-stage centrifugal pumps are designed and built for rugged continuous duty service. This general service pump can be utilized in a wide variety of applications. Over the years Myers multistage centrifugals have earned a reputation for dependable performance and quality workmanship, delivering maximum performance with smooth, quiet operation. These high head (to 400 feet) medium capacity (to 140 gpm) pumps are available in standard fitted (I2C) and all iron (I2CI) construction. The I2C and I2CI have threaded 2" suction and 1-1/2" discharge ports. All frame mounted motor driven units are standard with 3450 rpm, 60 hertz, three phase motors in 5 to 20 horsepower sizes. They are 230/460 volt, open drip proof, general purpose type. For special motors, please consult the factory.

APPLICATIONS:

Booster service, Irrigation, Cold and hot water circulation, Fluid transfer, Boiler feed, Car wash installations, Water reclamation, Water supply, Golf course sprinkling, General industrial and commercial applications, Jobs requiring pumping clear or noncorrosive liquids

Features

  • Max flow: 140 gpm
  • Max head capability: 410 feet
  • Port sizes: 2" FNPT inlet, 1-1/2" FNPT outlet
  • Impeller: 7" diameter, lead-free brass
  • Required motor size: 20 hp
  • Maximum temperature rating: 220°F

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bracket, Bearing
    • Ref No: 1
    • Part No: 15035D000
    • Qty Req: 1
    Our price: $518.30 List price: $575.89
  • Bearing, Ball
    • Ref No: 3
    • Part No: 11729A008
    • Qty Req: 2
    Our price: $73.80 List price: $82.00
  • Ring, Retaining, Bevel
    • Ref No: 4
    • Part No: 07756A011
    • Qty Req: 1
    Our price: $48.45 List price: $57.00
  • Screw
    • Ref No: 5
    • Part No: 19103A004
    • Qty Req: 4
    Our price: $3.60 List price: $4.00
  • Lock Washer
    • Ref No: 6
    • Part No: 05454A004
    • Qty Req: 4
    Our price: $6.30 List price: $7.00
  • Bracket, Seal, w/ Brass Wear Ring
    • Ref No: 7
    • Part No: 17548D001K
    • Qty Req: 1
    Our price: $715.50 List price: $795.00
  • Ring, Wear, Brass
    • Ref No: 8
    • Part No: 12934A000
    • Qty Req: 1
    Our price: $55.80 List price: $62.00
  • Shaft
    • Ref No: 9
    • Part No: 15037C000
    • Qty Req: 1
    Our price: $558.00 List price: $620.00
  • Slinger
    • Ref No: 10
    • Part No: 05059A263
    • Qty Req: 2
    Our price: $14.40 List price: $16.00
  • Seal, Rotary
    • Ref No: 11
    • Part No: 21181A016
    • Qty Req: 1
    Our price: $108.00 List price: $120.00
  • Retaining Ring
    • Ref No: 12
    • Part No: 12558A008
    • Qty Req: 1
    Our price: $18.00 List price: $21.00
  • Impeller, 7" Brass
    • Ref No: 13
    • Part No: 17549C000K
    • Qty Req: 1
    Our price: $675.00 List price: $750.00
  • Impeller, 7", Brass
    • Ref No: 14
    • Part No: 17550C000K
    • Qty Req: 1
    Our price: $675.00 List price: $750.00
  • Key
    • Ref No: 15
    • Part No: 05818A046
    • Qty Req: 1
    Our price: $11.05 List price: $13.00
  • Washer
    • Ref No: 16
    • Part No: 08818A002
    • Qty Req: 1
    Our price: $48.45 List price: $57.00
  • Screw
    • Ref No: 17
    • Part No: 17050A001
    • Qty Req: 1
    Our price: $45.05 List price: $53.00
  • Screw, 3/8-16 UNC x 7/8" Hex Hd.
    • Ref No: 18
    • Part No: 19101A011
    • Qty Req: 16
    Our price: $4.50 List price: $5.00
  • Retaining Ring
    • Ref No: 19
    • Part No: 07756A012
    • Qty Req: 1
    Our price: $17.85 List price: $21.00
  • O-Ring
    • Ref No: 20
    • Part No: 05876A127
    • Qty Req: 1
    Our price: $18.90 List price: $21.00
  • Case, Volute, w/Brass Wear Ring
    • Ref No: 21
    • Part No: 17547D001K
    • Qty Req: 1
    Our price: $220.00 List price: $250.00
  • Ring, Wear, Brass
    • Ref No: 22
    • Part No: 15044A000
    • Qty Req: 1
    Our price: $30.60 List price: $34.00
  • Gasket
    • Ref No: 24
    • Part No: 15041B010
    • Qty Req: 1
    Our price: $24.30 List price: $27.00
  • Brass Wear Ring
    • Ref No: 26
    • Part No: 15043A000
    • Qty Req: 1
    Our price: $60.30 List price: $67.00
  • Plug, 1/8 NPT Galv. Pipe
    • Ref No: 27
    • Part No: 05022A021
    • Qty Req: 1
    Our price: $4.50 List price: $5.00
  • Screw
    • Ref No: 28
    • Part No: 19101A028
    • Qty Req: 2
    Our price: $3.60 List price: $4.00
  • Washer
    • Ref No: 29
    • Part No: 05454A007
    • Qty Req: 19
    Our price: $2.70 List price: $3.00
  • Oil Cup
    • Ref No: 30
    • Part No: 20362A001
    • Qty Req: 1
    Our price: $110.50 List price: $130.00
