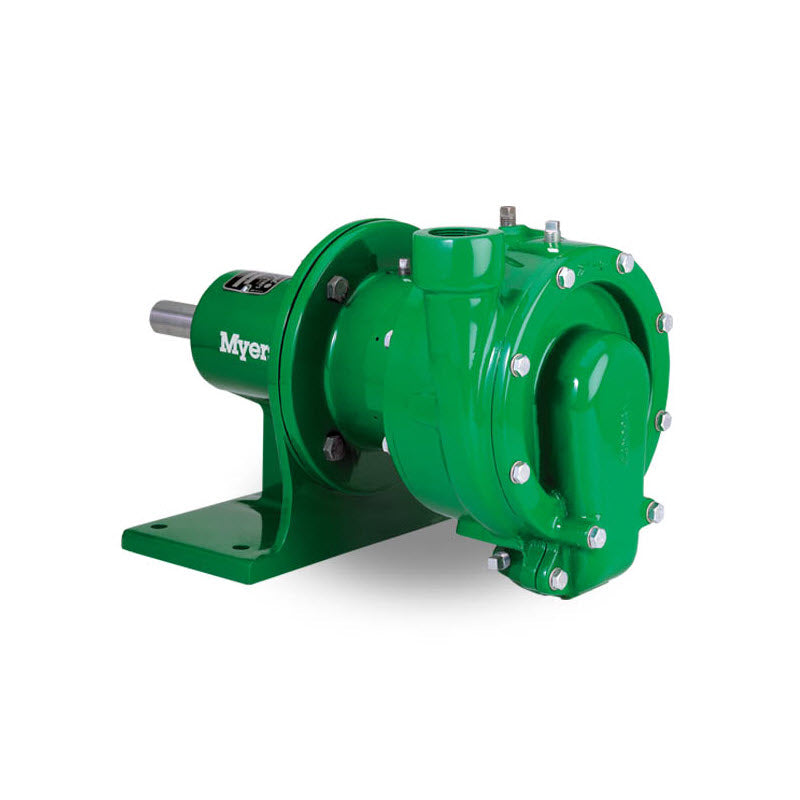

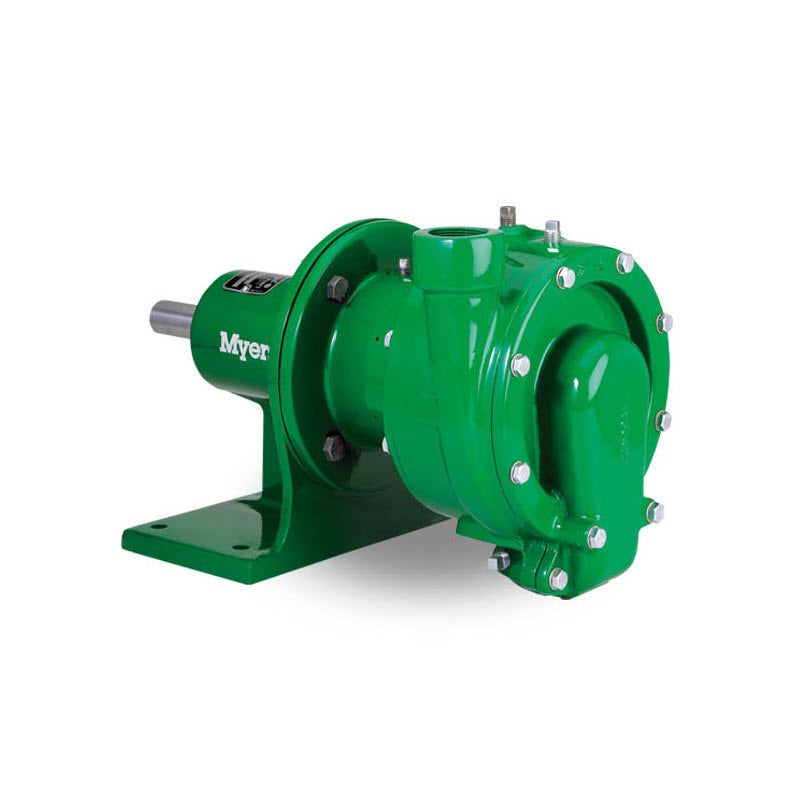

Myers I2C-10 Two Stage Centrifugal Pump

Myers I2C-10 Two Stage Centrifugal Pump

Item Code:
I2C10
Weight:
125.0 lb
Manufacturer:
Myers
Our price:
$2,378.30
List price:
$3,200.00
Overview:

Myers I2C-10 Two Stage Centrifugal Pump

Catalog Number:  15034E012

Features:

Suction/Discharge:  2" NPT x 1-1/2" NPT

Maximum Head Capability:  275 Feet

Flow Rate:  Up to 140 GPM

Impeller:  5-7/8" Diameter, Lead-Free Brass

Required Motor Size:  10 HP

Maximum Temperature:  220 Degrees F

Myers I2C and I2CI Two-Stage centrifugal pumps are designed and built for rugged continuous duty service.  This general service pump can be utilized in a wide variety of applications.  Over the years Myers multistage centrifugals have earned a reputation for dependable performance and quality workmanship, delivering maximum performance with smooth operation.

These high head (up to 400 feet) medium capacity (to 140 GPM) pumps are available in standard fitted (I2C) and all iron (I2CI) construction.  All frame mounted

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 15035D000
  • Qty Req: 1
Our price: $518.30 List price: $575.89
  • Ref No: 3
  • Part No: 11729A008
  • Qty Req: 2
Our price: $73.80 List price: $82.00
  • Ref No: 5
  • Part No: 19103A004
  • Qty Req: 4
Our price: $3.60 List price: $4.00
  • Ref No: 6
  • Part No: 05454A004
  • Qty Req: 4
Our price: $3.60 List price: $4.00
  • Ref No: 8
  • Part No: 12934A000
  • Qty Req: 1
Our price: $55.80 List price: $62.00
  • Ref No: 9
  • Part No: 15037C000
  • Qty Req: 1
Our price: $558.00 List price: $620.00
  • Ref No: 10
  • Part No: 05059A263
  • Qty Req: 2
Our price: $11.70 List price: $13.00
  • Ref No: 11
  • Part No: 21181A016
  • Qty Req: 1
Our price: $90.00 List price: $100.00
  • Ref No: 12
  • Part No: 12558A008
  • Qty Req: 1
Our price: $18.00 List price: $20.00
  • Ref No: 15
  • Part No: 05818A046
  • Qty Req: 1
Our price: $9.00 List price: $10.00
  • Ref No: 16
  • Part No: 08818A002
  • Qty Req: 1
Our price: $28.50 List price: $30.00
  • Ref No: 17
  • Part No: 17050A001
  • Qty Req: 1
Our price: $28.50 List price: $30.00
  • Ref No: 19
  • Part No: 07756A012
  • Qty Req: 1
Our price: $13.50 List price: $15.00
  • Ref No: 20
  • Part No: 05876A127
  • Qty Req: 1
Our price: $13.50 List price: $15.00
  • Ref No: 22
  • Part No: 15044A000
  • Qty Req: 1
Our price: $30.60 List price: $34.00
  • Ref No: 24
  • Part No: 15041B010
  • Qty Req: 1
Our price: $13.50 List price: $15.00
  • Ref No: 26
  • Part No: 15043A000
  • Qty Req: 1
Our price: $60.30 List price: $67.00
  • Ref No: 28
  • Part No: 19101A028
  • Qty Req: 2
Our price: $3.60 List price: $4.00
  • Ref No: 29
  • Part No: 05454A007
  • Qty Req: 19
Our price: $2.70 List price: $3.00
  • Ref No: 30
  • Part No: 20362A001
  • Qty Req: 1
Our price: $63.00 List price: $70.00
