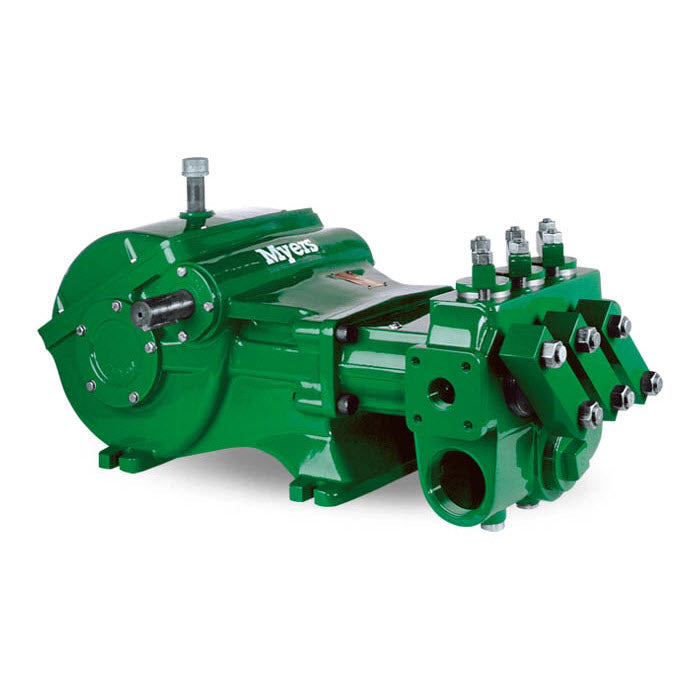

Myers E54-30 High Pressure Reciprocating Piston Pump

Myers E54-30 High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
525.0 lb
Item #
E5430
1 1

Myers E54-30 High Pressure Reciprocating Piston Pump

Myers E54-30 High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
525.0 lb
Item #
E5430

$23,106.00
$23,106.00 List Price: $38,510.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 69,318 points with this purchase.

See Details

View full details

Product Overview

Myers E54-30 High Pressure Reciprocating Piston Pump

KEY FEATURES

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Case, Gear
    • Ref No: 1
    • Part No: 04625E010E
    • Qty Req: 1
    Our price: $4,183.20 List price: $4,648.00
  • Shim, Plastic .015"
    • Ref No: 2
    • Part No: 05068A016
    • Qty Req: 6
    Our price: $26.35 List price: $31.00
  • Shim, Plastic .003"
    • Ref No: 3
    • Part No: 05068A018
    • Qty Req: 6
    Our price: $8.50 List price: $10.00
  • O-Ring
    • Ref No: 4
    • Part No: 05876A098
    • Qty Req: 2
    Our price: $8.50 List price: $10.00
  • Washer, Seal
    • Ref No: 5
    • Part No: 14946A003
    • Qty Req: 18
    Our price: $7.65 List price: $9.00
  • Screw Cap, 3/8"x1"
    • Ref No: 6
    • Part No: 19101A013
    • Qty Req: 18
    Our price: $3.60 List price: $4.00
  • Cap, Bearing
    • Ref No: 7
    • Part No: 04624B004
    • Qty Req: 2
    Our price: $246.50 List price: $290.00
  • Cup, Bearing
    • Ref No: 8
    • Part No: 05675A013
    • Qty Req: 2
    Our price: $112.50 List price: $125.00
  • Cone, Bearing
    • Ref No: 9
    • Part No: 05674A021
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Key
    • Ref No: 11
    • Part No: 05818A048
    • Qty Req: 1
    Our price: $9.00 List price: $10.00
  • Oil Seal
    • Ref No: 12
    • Part No: 05710A017
    • Qty Req: 1
    Our price: $102.00 List price: $120.00
  • Cap, Open
    • Ref No: 13
    • Part No: 04563A001
    • Qty Req: 1
    Our price: $187.00 List price: $220.00
  • Cup, Bearing
    • Ref No: 14
    • Part No: 05675A009
    • Qty Req: 2
    Our price: $189.00 List price: $210.00
  • Cone, Bearing
    • Ref No: 15
    • Part No: 05674A013
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Shim, Plastic, .015"
    • Ref No: 16
    • Part No: 05231A075
    • Qty Req: 4
    Our price: $15.30 List price: $18.00
  • Shim, Plastic, .003"
    • Ref No: 17
    • Part No: 05231A074
    • Qty Req: 4
    Our price: $8.50 List price: $10.00
  • Spacer
    • Ref No: 18A
    • Part No: 20164B022A
    • Qty Req: 1
    Our price: $80.75 List price: $95.00
  • Cap, Closed
    • Ref No: 19
    • Part No: 04741B001
    • Qty Req: 1
    Our price: $130.50 List price: $145.00
  • Plug, Pipe, 1/2" NPT, SQ
    • Ref No: 20
    • Part No: 05022A039
    • Qty Req: 1
    Our price: $9.00 List price: $9.00
  • Clamp, Cylinder Cap
    • Ref No: 21
    • Part No: 20856A000
    • Qty Req: 3
    Our price: $246.50 List price: $290.00
  • Crosshead Assembly
    • Ref No: 22
    • Part No: 06211B042
    • Qty Req: 3
    Our price: $1,314.00 List price: $1,460.00
  • Link, Ductile Iron
    • Ref No: 23
    • Part No: 17042C002K
    • Qty Req: 3
    Our price: $873.00 List price: $970.00
  • Lock Washer
    • Ref No: 23
    • Part No: 05454A004
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Screw, Cap
    • Ref No: 23
    • Part No: 19103A016
    • Qty Req: 6
    Our price: $4.75 List price: $5.00
  • Wrist Pin
    • Ref No: 24
    • Part No: M01525A001
    • Qty Req: 3
    Our price: $153.00 List price: $180.00
  • Bearing, Two Halves
    • Ref No: 25
    • Part No: 15245A101K
    • Qty Req: 3
    Our price: $221.00 List price: $260.00
  • Plug, Pipe, Magnetic
    • Ref No: 26
    • Part No: 17481A002
    • Qty Req: 1
    Our price: $15.30 List price: $17.00
  • Gasket, Lid
    • Ref No: 27
    • Part No: 06201C000
    • Qty Req: 1
    Our price: $49.50 List price: $66.00
  • Screw, Cap
    • Ref No: 28
    • Part No: 19100A033
    • Qty Req: 8
    Our price: $0.90 List price: $1.00
  • O-Ring, Oil Gauge
    • Ref No: 29
    • Part No: 110000110201
    • Qty Req: 1
    Our price: $8.50 List price: $10.00
  • Dipstick, Oil, With O-Ring
    • Ref No: 30
    • Part No: 7206009400K
    • Qty Req: 1
    Our price: $47.70 List price: $53.00
  • Lid
    • Ref No: 31
    • Part No: 04561B000
    • Qty Req: 1
    Our price: $969.00 List price: $1,140.00
  • Nipple, Special Vent
    • Ref No: 32
    • Part No: 17995A000
    • Qty Req: 1
    Our price: $37.05 List price: $39.00
  • Cap, Pipe
    • Ref No: 33
    • Part No: 05737A002
    • Qty Req: 1
    Our price: $39.60 List price: $44.00
  • Slinger
    • Ref No: 34
    • Part No: 05059A263
    • Qty Req: 3
    Our price: $16.15 List price: $19.00
  • Cap Screw
    • Ref No: 35
    • Part No: 19105A008
    • Qty Req: 4
    Our price: $4.75 List price: $5.00
  • Allen Screw
    • Ref No: 36
    • Part No: 06106A034
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Spring
    • Ref No: 38
    • Part No: M01643A000
    • Qty Req: 3
    Our price: $26.10 List price: $29.00
  • Gasket, Seal Housing
    • Ref No: 39
    • Part No: 05059A434
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Gasket, Retainer
    • Ref No: 40
    • Part No: 05059A058
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Retainer, Oil Seal Housing
    • Ref No: 41
    • Part No: 24958A000
    • Qty Req: 3
    Our price: $261.00 List price: $290.00
  • Oil Seal
    • Ref No: 42
    • Part No: 22835A003
    • Qty Req: 6
    Our price: $43.50 List price: $58.00
  • Screw, Socket
    • Ref No: 43
    • Part No: 06106A038
    • Qty Req: 4
    Our price: $9.00 List price: $10.00
  • Lock Washer
    • Ref No: 44
    • Part No: 05454A003
    • Qty Req: 4
    Our price: $2.49 List price: $2.49
  • Stud
    • Ref No: 46
    • Part No: 05659A089
    • Qty Req: 6
    Our price: $41.65 List price: $49.00
  • Plug, Pipe, 1-1/4" NPT
    • Ref No: 48
    • Part No: 05022A041
    • Qty Req: 1
    Our price: $41.65 List price: $49.00
  • Body, Cylinder
    • Ref No: 49
    • Part No: 18639F008
    • Qty Req: 1
    Our price: $4,479.50 List price: $5,270.00
  • Lid, Cylinder
    • Ref No: 50
    • Part No: M01520A000
    • Qty Req: 1
    Our price: $68.00 List price: $80.00
  • Clamp, Lid
    • Ref No: 51
    • Part No: 26842A000
    • Qty Req: 2
    Our price: $41.65 List price: $49.00
  • O-Ring
    • Ref No: 53
    • Part No: 110000024218
    • Qty Req: 3
    Our price: $11.70 List price: $13.00
  • Piston Hub E54-30
    • Ref No: 54
    • Part No: 7206035400A
    • Qty Req: 3
    Our price: $297.50 List price: $350.00
  • Liner, Cyl. E54-30
    • Ref No: 55
    • Part No: 26849A000
    • Qty Req: 3
    Our price: $697.00 List price: $820.00
  • Piston, Cup, E54-30
    • Ref No: 56
    • Part No: 7206036100A
    • Qty Req: 3
    Our price: $153.00 List price: $180.00
  • Retainer, Piston E54-30
    • Ref No: 57
    • Part No: 7206035600A
    • Qty Req: 3
    Our price: $55.25 List price: $65.00
  • Screw, Cap
    • Ref No: 58
    • Part No: 16654A006
    • Qty Req: 3
    Our price: $65.70 List price: $73.00
  • Seal, Ring, Valve Cap
    • Ref No: 60
    • Part No: 26862A001
    • Qty Req: 3
    Our price: $119.00 List price: $140.00
  • Cap, Valve
    • Ref No: 61
    • Part No: 26848A000
    • Qty Req: 3
    Our price: $229.50 List price: $270.00
  • Clamp, Valve Cap
    • Ref No: 62
    • Part No: 20848A000
    • Qty Req: 3
    Our price: $102.00 List price: $120.00
  • Stud
    • Ref No: 63
    • Part No: 05659A560
    • Qty Req: 6
    Our price: $13.50 List price: $15.00
  • Cage, Valve
    • Ref No: 65
    • Part No: 7203054400B
    • Qty Req: 6
    Our price: $198.00 List price: $220.00
  • Spring, Valve
    • Ref No: 66
    • Part No: 7206030200A
    • Qty Req: 6
    Our price: $66.60 List price: $74.00
  • Valve, Guide
    • Ref No: 67
    • Part No: 7203054200A
    • Qty Req: 6
    Our price: $234.00 List price: $260.00
  • Insert, Valve, Polyurethane
    • Ref No: 68
    • Part No: 7203054600A
    • Qty Req: 6
    Our price: $46.80 List price: $52.00
  • O-Ring
    • Ref No: 69
    • Part No: 05876A236
    • Qty Req: 6
    Our price: $3.60 List price: $4.00
  • Seat, Valve
    • Ref No: 70
    • Part No: 7203054300B
    • Qty Req: 6
    Our price: $369.00 List price: $410.00
  • Cap, Cylinder
    • Ref No: 72
    • Part No: 26805A000
    • Qty Req: 3
    Our price: $229.50 List price: $270.00
  • Plug, Pipe, 3"
    • Ref No: 73
    • Part No: 03210A000
    • Qty Req: 2
    Our price: $110.50 List price: $130.00
  • Plug, Pipe, 1"
    • Ref No: 74
    • Part No: 05022A043
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Plug, Pipe, 1/2"
    • Ref No: 75
    • Part No: 05022A015
    • Qty Req: 3
    Our price: $5.95 List price: $7.00
  • Spring
    • Ref No: 76
    • Part No: 20853A000
    • Qty Req: 3
    Our price: $41.65 List price: $49.00
  • Retainer, Spring
    • Ref No: 77
    • Part No: 20852A003
    • Qty Req: 3
    Our price: $153.00 List price: $180.00
