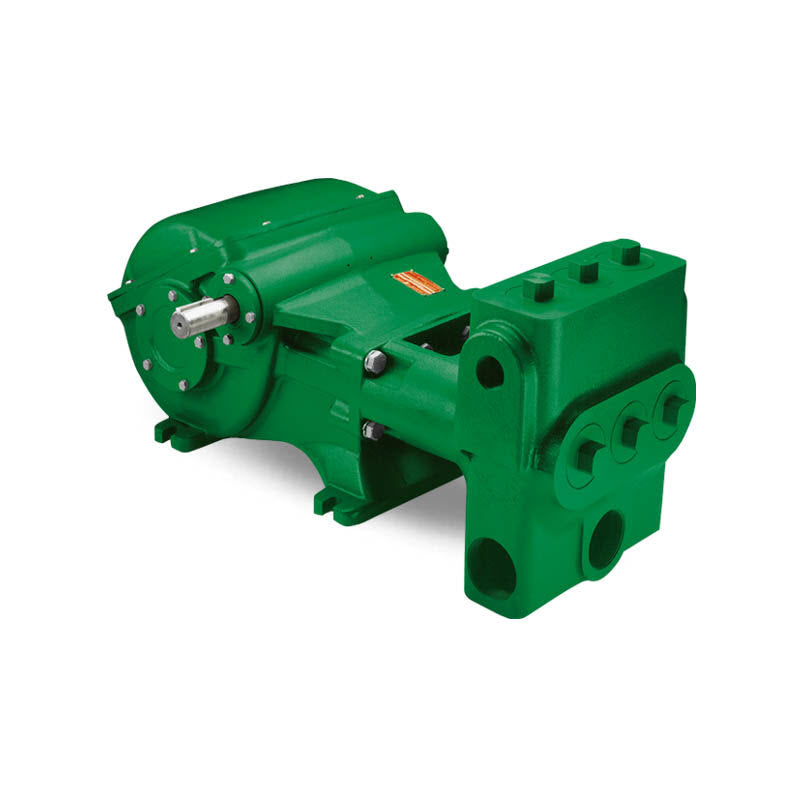

Myers DP70-22 High Pressure Reciprocating Plunger Pump

Myers DP70-22 High Pressure Reciprocating Plunger Pump

Brand:
Myers
Weight:
725.0 lb
Item #
DP7022
1 1

Myers DP70-22 High Pressure Reciprocating Plunger Pump

Myers DP70-22 High Pressure Reciprocating Plunger Pump

Brand:
Myers
Weight:
725.0 lb
Item #
DP7022

$30,786.00
$30,786.00 List Price: $51,310.00

Earn 92,358 points with this purchase.

See Details

View full details

Product Overview

Myers DP70-22 High Pressure Reciprocating Plunger Pump

KEY FEATURES
  • Flows to 65 GP

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Case, Gear
    • Ref No: 1
    • Part No: 04625E010E
    • Qty Req: 1
    Our price: $4,183.20 List price: $4,648.00
  • Gasket, Lid
    • Ref No: 2
    • Part No: 6201C000
    • Qty Req: 1
    Our price: $55.25 List price: $65.00
  • Cap Screw
    • Ref No: 2
    • Part No: 19100A005
    • Qty Req: 8
    Our price: $3.80 List price: $4.00
  • Lid
    • Ref No: 3
    • Part No: 4561B000
    • Qty Req: 1
    Our price: $665.00 List price: $700.00
  • Nipple, Special Vent
    • Ref No: 4
    • Part No: 17995A000
    • Qty Req: 1
    Our price: $37.05 List price: $39.00
  • Dipstick, Oil, With O-Ring
    • Ref No: 6
    • Part No: 7206009400K
    • Qty Req: 1
    Our price: $47.70 List price: $53.00
  • Spacer
    • Ref No: 7
    • Part No: 20164B022A
    • Qty Req: 1
    Our price: $80.75 List price: $95.00
  • Shim, Plastic, .003"
    • Ref No: 7
    • Part No: 05231A074
    • Qty Req: 4
    Our price: $8.50 List price: $10.00
  • Shim, Plastic, .015"
    • Ref No: 7
    • Part No: 05231A075
    • Qty Req: 4
    Our price: $15.30 List price: $18.00
  • Cone, Bearing
    • Ref No: 7
    • Part No: 05674A013
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Cup, Bearing
    • Ref No: 7
    • Part No: 05675A009
    • Qty Req: 2
    Our price: $189.00 List price: $210.00
  • Cap, Open
    • Ref No: 7
    • Part No: 04563A001
    • Qty Req: 1
    Our price: $187.00 List price: $220.00
  • Cap, Closed
    • Ref No: 7
    • Part No: 04741B001
    • Qty Req: 1
    Our price: $130.50 List price: $145.00
  • Oil Seal
    • Ref No: 7
    • Part No: 05710A017
    • Qty Req: 1
    Our price: $102.00 List price: $120.00
  • Cap Screw
    • Ref No: 7
    • Part No: 19101A009
    • Qty Req: 18
    Our price: $5.10 List price: $6.00
  • Washer, Seal
    • Ref No: 7
    • Part No: 14946A003
    • Qty Req: 18
    Our price: $7.65 List price: $9.00
  • Cone, Bearing
    • Ref No: 7
    • Part No: 05674A021
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Cup, Bearing
    • Ref No: 7
    • Part No: 05675A013
    • Qty Req: 2
    Our price: $112.50 List price: $125.00
  • Cap, Bearing
    • Ref No: 7
    • Part No: 04624B004
    • Qty Req: 2
    Our price: $246.50 List price: $290.00
  • Shim, Plastic .003"
    • Ref No: 7
    • Part No: 05068A018
    • Qty Req: 6
    Our price: $8.50 List price: $10.00
  • Shim, Plastic .015"
    • Ref No: 7
    • Part No: 05068A016
    • Qty Req: 6
    Our price: $26.35 List price: $31.00
  • O-Ring
    • Ref No: 7
    • Part No: 05876A098
    • Qty Req: 2
    Our price: $8.50 List price: $10.00
  • Link, Ductile Iron
    • Ref No: 9
    • Part No: 17042C002
    • Qty Req: 3
    Our price: $850.00 List price: $1,000.00
  • Screw, Cap
    • Ref No: 9
    • Part No: 19103A016
    • Qty Req: 6
    Our price: $4.75 List price: $5.00
  • Bearing, Two Halves
    • Ref No: 10
    • Part No: 15245A002
    • Qty Req: 3
    Our price: $221.00 List price: $260.00
  • Wrist Pin
    • Ref No: 11
    • Part No: M01525A001
    • Qty Req: 3
    Our price: $153.00 List price: $180.00
  • Oil Seal
    • Ref No: 13
    • Part No: 22835A003
    • Qty Req: 6
    Our price: $43.50 List price: $58.00
  • Retainer, Oil Seal Housing
    • Ref No: 14
    • Part No: 24958A000
    • Qty Req: 3
    Our price: $261.00 List price: $290.00
  • Allen Screw
    • Ref No: 14
    • Part No: 06106A034
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Gasket, Seal Housing
    • Ref No: 14
    • Part No: 05059A434
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Gasket, Retainer
    • Ref No: 14
    • Part No: 05059A058
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Plug, Pipe, Magnetic
    • Ref No: 15
    • Part No: 17481A002
    • Qty Req: 1
    Our price: $15.30 List price: $17.00
  • Screw, Socket
    • Ref No: 15
    • Part No: 06106A038
    • Qty Req: 4
    Our price: $9.00 List price: $10.00
  • Cap Screw
    • Ref No: 15
    • Part No: 19105A008
    • Qty Req: 4
    Our price: $4.75 List price: $5.00
  • Spring
    • Ref No: 15
    • Part No: M01643A000
    • Qty Req: 3
    Our price: $26.10 List price: $29.00
  • Body, Fluid End A (Model DP120-12, DP90-18, DP85-20, DP80-20, DP70-22)
    • Ref No: 16
    • Part No: 24961F000
    • Qty Req: 1
    Our price: $5,085.00 List price: $6,780.00
  • Cap, Valve
    • Ref No: 17
    • Part No: 24797A000JPD
    • Qty Req: 6
    Our price: $136.00 List price: $160.00
  • O-Ring
    • Ref No: 17
    • Part No: 5876A168
    • Qty Req: 6
    Our price: $26.35 List price: $31.00
  • Ring, Backup
    • Ref No: 17
    • Part No: 18753A007
    • Qty Req: 6
    Our price: $11.05 List price: $13.00
  • Valve, Delrin
    • Ref No: 18
    • Part No: 18834A003
    • Qty Req: 3
    Our price: $127.50 List price: $170.00
  • Seat, Suction Valve
    • Ref No: 19
    • Part No: 24796A000
    • Qty Req: 3
    Our price: $285.00 List price: $380.00
  • Seat, Discharge Valve
    • Ref No: 20
    • Part No: 24796A001
    • Qty Req: 3
    Our price: $285.00 List price: $380.00
  • Spring, Suction Valve
    • Ref No: 21
    • Part No: 11829A000
    • Qty Req: 3
    Our price: $14.11 List price: $17.00
  • Spring, Discharge Valve
    • Ref No: 22
    • Part No: 11829A001
    • Qty Req: 6
    Our price: $21.75 List price: $29.00
  • Retainer, Spring
    • Ref No: 23
    • Part No: 18833A001
    • Qty Req: 6
    Our price: $12.75 List price: $17.00
  • Screw, Cap, Thread Lock
    • Ref No: 24
    • Part No: 18832A002
    • Qty Req: 3
    Our price: $67.15 List price: $79.00
  • Spring, Packing
    • Ref No: 25
    • Part No: 24799A001
    • Qty Req: 3
    Our price: $187.00 List price: $220.00
  • Plunger, Coated (2")
    • Ref No: 26
    • Part No: 24798B023
    • Qty Req: 3
    Our price: $1,058.30 List price: $1,114.00
  • Cartridge, Seal (2")
    • Ref No: 27
    • Part No: 24953B000
    • Qty Req: 3
    Our price: $570.00 List price: $600.00
  • O-Ring, Seal Cartridge
    • Ref No: 28
    • Part No: 5876A167
    • Qty Req: 3
    Our price: $28.90 List price: $34.00
  • Ring, Backup, Seal Cartridge
    • Ref No: 29
    • Part No: 18753A006
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Packing, Plunger 2"
    • Ref No: 30
    • Part No: 24962A004
    • Qty Req: 3
    Our price: $314.50 List price: $370.00
  • Washer, Spring
    • Ref No: 31
    • Part No: 24955A003
    • Qty Req: 3
    Our price: $314.50 List price: $370.00
  • Lid, Cylinder
    • Ref No: 31
    • Part No: M01520A000
    • Qty Req: 1
    Our price: $68.00 List price: $80.00
  • Plug, Pipe, 3"
    • Ref No: 31
    • Part No: 03210A000
    • Qty Req: 2
    Our price: $110.50 List price: $130.00
  • Plug, Pipe, 1"
    • Ref No: 31
    • Part No: 05022A043
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
