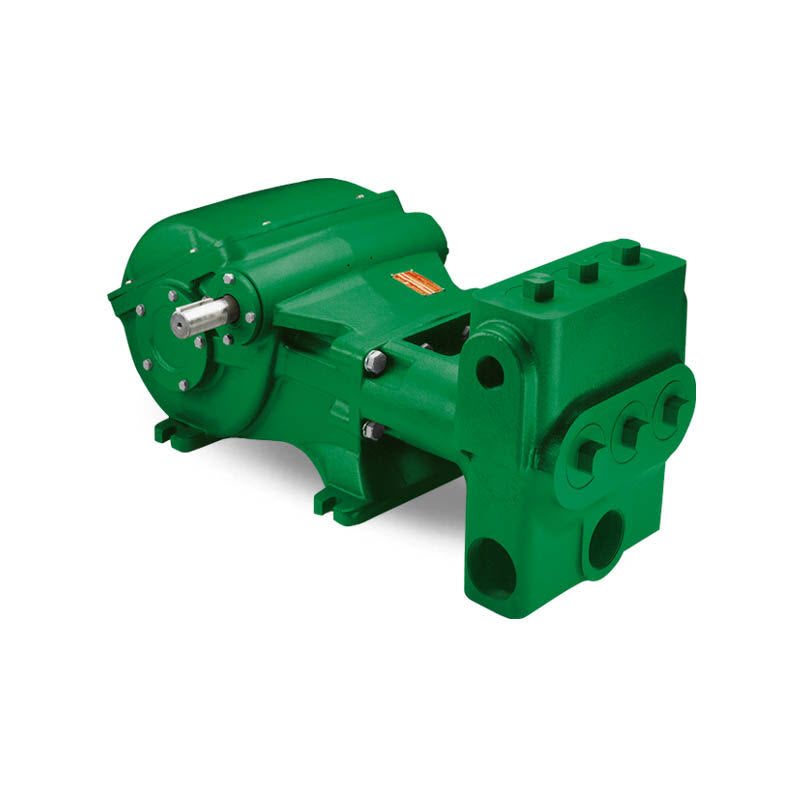

Myers DP40-38 High Pressure Reciprocating Plunger Pump

Myers DP40-38 High Pressure Reciprocating Plunger Pump

Brand:
Myers
Weight:
725.0 lb
Item #
DP4038

Regular price $28,326.00
Sale price $28,326.00 Regular price List Price: $47,210.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 84,978 points with this purchase.

View full details

Collapsible content

Product Overview

The DP4038 High Pressure Reciprocating Plunger Pump is part of Myers' largest high volume and pressure series and delivers flows to 40 GPM with pressure ratings up to 3,800. Seven interchangeable accessory plunger and seal packages provide a variety of flow and pressure ratings. This pump is also available in a configuration for hydraulic drive.

Manufacturer description

Myers largest high volume/pressure series offers interchangeable plungers, seals, and fluid ends to provide various flow/pressure ratings. Also available in hydraulic drive configuration. The DP Series plunger pump adds a new dimension of rugged versatility to Pentair's line of Myers® high pressure industrial pumps. In one power end, two fluid ends, the DP offers seven interchangeable plunger and seal packages, allowing complete hydraulic coverage between 1200 psi/120 gpm and 5500 psi/27 gpm. The DP handles liquids of PH4~11, up to 180ûF (82ûC) with a maximum inlet pressure of 100 psi. Optimum flow and pressure are easily converted, even in the field, by changing the plunger and seal kit. Two sets of different valve seats with different flow areas (valves A and B) fit into the same valve deck and are also interchangeable. The DP Series combine Pentair's manufacturing expertise and understanding of applications to provide a pump with the strength and versatility for any demanding high pressure job.

Features

  • Max flow: 40 gpm
  • Max pressure: 3800 psi
  • Plunger size: 1-1/2"
  • Suction: 3"
  • Discharge: 1-1/2"
  • Shaft: 1-5/8"
  • Max temperature rating: 180°F
  • Weight: 725 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Case, Gear
    • Ref No: 1
    • Part No: 04625E010E
    • Qty Req: 1
    Our price: $4,183.20 List price: $4,648.00
  • Gasket, Lid
    • Ref No: 2
    • Part No: 6201C000
    • Qty Req: 1
    Our price: $55.25 List price: $65.00
  • Cap Screw
    • Ref No: 2
    • Part No: 19100A005
    • Qty Req: 8
    Our price: $3.80 List price: $4.00
  • Lid
    • Ref No: 3
    • Part No: 4561B000
    • Qty Req: 1
    Our price: $665.00 List price: $700.00
  • Nipple, Special Vent
    • Ref No: 4
    • Part No: 17995A000
    • Qty Req: 1
    Our price: $19.00 List price: $20.00
  • Dipstick, Oil, With O-Ring
    • Ref No: 6
    • Part No: 7206009400K
    • Qty Req: 1
    Our price: $47.70 List price: $53.00
  • Spacer
    • Ref No: 7
    • Part No: 20164B022A
    • Qty Req: 1
    Our price: $80.75 List price: $95.00
  • Shim, Plastic, .003"
    • Ref No: 7
    • Part No: 05231A074
    • Qty Req: 4
    Our price: $8.50 List price: $10.00
  • Shim, Plastic, .015"
    • Ref No: 7
    • Part No: 05231A075
    • Qty Req: 4
    Our price: $15.30 List price: $18.00
  • Cone, Bearing
    • Ref No: 7
    • Part No: 05674A013
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Cup, Bearing
    • Ref No: 7
    • Part No: 05675A009
    • Qty Req: 2
    Our price: $189.00 List price: $210.00
  • Cap, Open
    • Ref No: 7
    • Part No: 04563A001
    • Qty Req: 1
    Our price: $187.00 List price: $220.00
  • Cap, Closed
    • Ref No: 7
    • Part No: 04741B001
    • Qty Req: 1
    Our price: $130.50 List price: $145.00
  • Oil Seal
    • Ref No: 7
    • Part No: 05710A017
    • Qty Req: 1
    Our price: $102.00 List price: $120.00
  • Cap Screw
    • Ref No: 7
    • Part No: 19101A009
    • Qty Req: 18
    Our price: $5.10 List price: $6.00
  • Washer, Seal
    • Ref No: 7
    • Part No: 14946A003
    • Qty Req: 18
    Our price: $7.65 List price: $9.00
  • Cone, Bearing
    • Ref No: 7
    • Part No: 05674A021
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Cup, Bearing
    • Ref No: 7
    • Part No: 05675A013
    • Qty Req: 2
    Our price: $112.50 List price: $125.00
  • Cap, Bearing
    • Ref No: 7
    • Part No: 04624B004
    • Qty Req: 2
    Our price: $246.50 List price: $290.00
  • Shim, Plastic .003"
    • Ref No: 7
    • Part No: 05068A018
    • Qty Req: 6
    Our price: $8.50 List price: $10.00
  • Shim, Plastic .015"
    • Ref No: 7
    • Part No: 05068A016
    • Qty Req: 6
    Our price: $26.35 List price: $31.00
  • O-Ring
    • Ref No: 7
    • Part No: 05876A098
    • Qty Req: 2
    Our price: $8.50 List price: $10.00
  • Link, Ductile Iron
    • Ref No: 9
    • Part No: 17042C002
    • Qty Req: 3
    Our price: $824.50 List price: $970.00
  • Screw, Cap
    • Ref No: 9
    • Part No: 19103A016
    • Qty Req: 6
    Our price: $4.75 List price: $5.00
  • Bearing, Two Halves
    • Ref No: 10
    • Part No: 15245A002
    • Qty Req: 3
    Our price: $221.00 List price: $260.00
  • Wrist Pin
    • Ref No: 11
    • Part No: M01525A001
    • Qty Req: 3
    Our price: $102.00 List price: $120.00
  • Oil Seal
    • Ref No: 13
    • Part No: 22835A003
    • Qty Req: 6
    Our price: $43.50 List price: $58.00
  • Retainer, Oil Seal Housing
    • Ref No: 14
    • Part No: 24958A000
    • Qty Req: 3
    Our price: $261.00 List price: $290.00
  • Allen Screw
    • Ref No: 14
    • Part No: 06106A034
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Gasket, Seal Housing
    • Ref No: 14
    • Part No: 05059A434
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Gasket, Retainer
    • Ref No: 14
    • Part No: 05059A058
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Plug, Pipe, Magnetic
    • Ref No: 15
    • Part No: 17481A002
    • Qty Req: 1
    Our price: $15.30 List price: $17.00
  • Screw, Socket
    • Ref No: 15
    • Part No: 06106A038
    • Qty Req: 4
    Our price: $9.00 List price: $10.00
  • Cap Screw
    • Ref No: 15
    • Part No: 19105A008
    • Qty Req: 4
    Our price: $4.75 List price: $5.00
  • Spring
    • Ref No: 15
    • Part No: M01643A000
    • Qty Req: 3
    Our price: $26.10 List price: $29.00
  • Body, Fluid End B
    • Ref No: 16
    • Part No: 24961F001
    • Qty Req: 1
    Our price: $3,177.75 List price: $3,345.00
  • Cap, Valve
    • Ref No: 17
    • Part No: 24797A000JPD
    • Qty Req: 6
    Our price: $136.00 List price: $160.00
  • O-Ring
    • Ref No: 17
    • Part No: 5876A168
    • Qty Req: 6
    Our price: $26.35 List price: $31.00
  • Ring, Backup
    • Ref No: 17
    • Part No: 18753A007
    • Qty Req: 6
    Our price: $11.05 List price: $13.00
  • Valve, Delrin
    • Ref No: 18
    • Part No: 18834A003
    • Qty Req: 3
    Our price: $127.50 List price: $170.00
  • Seat, Suction Valve F.E.C
    • Ref No: 19
    • Part No: 24796A012
    • Qty Req: 3
    Our price: $671.50 List price: $790.00
  • Seat, Discharge Valve F.E.C
    • Ref No: 20
    • Part No: 24796A013
    • Qty Req: 3
    Our price: $739.50 List price: $870.00
  • Spring, Suction Valve
    • Ref No: 21
    • Part No: 11829A000
    • Qty Req: 3
    Our price: $14.11 List price: $17.00
  • Spring, Discharge Valve
    • Ref No: 22
    • Part No: 11829A001
    • Qty Req: 6
    Our price: $21.75 List price: $29.00
  • Retainer, Spring
    • Ref No: 23
    • Part No: 18833A001
    • Qty Req: 6
    Our price: $12.75 List price: $17.00
  • Screw, Cap, Thread Lock
    • Ref No: 24
    • Part No: 18832A002
    • Qty Req: 3
    Our price: $67.15 List price: $79.00
  • Spring, Packing
    • Ref No: 25
    • Part No: 24799A002
    • Qty Req: 3
    Our price: $117.00 List price: $130.00
  • Plunger, Coated (1-1/2")
    • Ref No: 26
    • Part No: 24798B025
    • Qty Req: 3
    Our price: $1,017.45 List price: $1,071.00
  • Cartridge, Seal (1-1/2")
    • Ref No: 27
    • Part No: 24953B002
    • Qty Req: 3
    Our price: $549.00 List price: $610.00
  • O-Ring, Seal Cartridge
    • Ref No: 28
    • Part No: 5876A166
    • Qty Req: 3
    Our price: $11.40 List price: $12.00
  • Ring, Backup, Seal Cartridge
    • Ref No: 29
    • Part No: 18753A005
    • Qty Req: 3
    Our price: $8.50 List price: $10.00
  • Packing, Plunger 1-1/2
    • Ref No: 30
    • Part No: 24962A006
    • Qty Req: 3
    Our price: $279.00 List price: $310.00
  • Washer, Spring 1-1/2
    • Ref No: 31
    • Part No: 24955A005
    • Qty Req: 3
    Our price: $261.00 List price: $290.00
  • Lid, Cylinder
    • Ref No: 31
    • Part No: M01520A000
    • Qty Req: 1
    Our price: $68.00 List price: $80.00
  • Plug, Pipe, 3"
    • Ref No: 31
    • Part No: 03210A000
    • Qty Req: 2
    Our price: $110.50 List price: $130.00
  • Plug, Pipe, 1"
    • Ref No: 31
    • Part No: 05022A043
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
