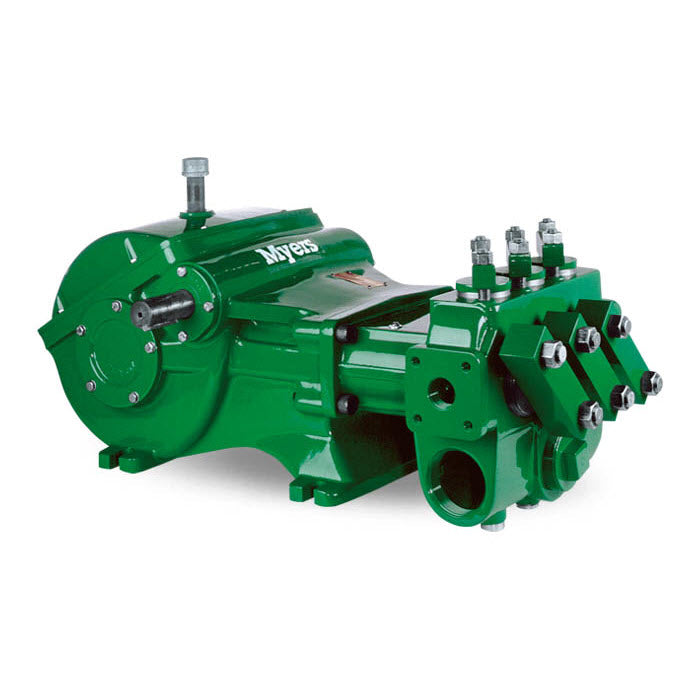

Myers D65-20 High Pressure Reciprocating Piston Pump

Myers D65-20 High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
525.0 lb
Item #
D6520

$21,540.00
$21,540.00 List Price: $35,900.00

Earn 64,620 points with this purchase.

See Details

View full details

Product Overview

Reliable, durable and powerful - the Myers D65-20 high pressure reciprocating plunger pump is the pump is an industry staple. If you are performing any application where up to 65 gpm and 2000 psi is needed this pump is a great fit!

Manufacturer description

Slow operating speed reduces wear and prolongs pump life. The fluid end is available in ductile iron or aluminum bronze with flat valves, making routine maintenance easy without removing the pump from the system. All the valve and piston assemblies are serviceable through convenient front and top openings. Key specs and features: Flows to 65 GPM, pressure ratings up to 2,000 PSI, internal gear reduction, continuous splash lubrication provided either direction of rotation.

Resources

Download Product Manual

Features

Max flow: 65 gpm

Max pressure: 2000 psi

Parts breakdown

Diagram

Diagram parts

Parts list

  • Case, Gear
    • Ref No: 1
    • Part No: 04625E001K
    • Qty Req: 1
    Our price: $5,400.00 List price: $7,200.00
  • Gasket, Lid
    • Ref No: 2
    • Part No: 06201C000
    • Qty Req: 1
    Our price: $49.50 List price: $66.00
  • Cap Screw
    • Ref No: 3
    • Part No: 19100A005
    • Qty Req: 8
    Our price: $3.80 List price: $4.00
  • Lid
    • Ref No: 4
    • Part No: 04561B000
    • Qty Req: 1
    Our price: $969.00 List price: $1,140.00
  • Nipple, Special Vent
    • Ref No: 5
    • Part No: 17995A000
    • Qty Req: 1
    Our price: $19.00 List price: $20.00
  • Cap, Pipe
    • Ref No: 5
    • Part No: 05737A002
    • Qty Req: 1
    Our price: $10.80 List price: $12.00
  • Dipstick, Oil, With O-Ring
    • Ref No: 6
    • Part No: 7206009400K
    • Qty Req: 1
    Our price: $47.70 List price: $53.00
  • Shaft, Pinion (Includes Spacer)
    • Ref No: 8
    • Part No: 20164B020K
    • Qty Req: 1
    Our price: $1,098.90 List price: $1,221.00
  • Spacer
    • Ref No: 8
    • Part No: 20164B022A
    • Qty Req: 1
    Our price: $80.75 List price: $95.00
  • Shim, Plastic, .003"
    • Ref No: 8
    • Part No: 05231A074
    • Qty Req: 4
    Our price: $8.50 List price: $10.00
  • Shim, Plastic, .015"
    • Ref No: 8
    • Part No: 05231A075
    • Qty Req: 4
    Our price: $15.30 List price: $18.00
  • Cone, Bearing
    • Ref No: 9
    • Part No: 05674A013
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Cup, Bearing
    • Ref No: 9
    • Part No: 05675A009
    • Qty Req: 2
    Our price: $189.00 List price: $210.00
  • Cap, Open
    • Ref No: 10
    • Part No: 04563A001
    • Qty Req: 1
    Our price: $187.00 List price: $220.00
  • Cap, Closed
    • Ref No: 10
    • Part No: 04741B000
    • Qty Req: 1
    Our price: $124.20 List price: $138.00
  • Oil Seal
    • Ref No: 10
    • Part No: 05710A017
    • Qty Req: 1
    Our price: $102.00 List price: $120.00
  • Screw Cap, 3/8"x1"
    • Ref No: 10
    • Part No: 19101A013
    • Qty Req: 18
    Our price: $3.60 List price: $4.00
  • Washer, Seal
    • Ref No: 10
    • Part No: 14946A003
    • Qty Req: 18
    Our price: $7.65 List price: $9.00
  • Crankshaft
    • Ref No: 11
    • Part No: 20355C022K
    • Qty Req: 1
    Our price: $3,264.00 List price: $4,080.00
  • Cone, Bearing
    • Ref No: 12
    • Part No: 05674A021
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Cup, Bearing
    • Ref No: 12
    • Part No: 05675A013
    • Qty Req: 2
    Our price: $112.50 List price: $125.00
  • Cap, Bearing
    • Ref No: 12
    • Part No: 04624B004
    • Qty Req: 2
    Our price: $246.50 List price: $290.00
  • Shim, Plastic .015"
    • Ref No: 12
    • Part No: 05068A016
    • Qty Req: 6
    Our price: $26.35 List price: $31.00
  • Shim, Plastic .003"
    • Ref No: 12
    • Part No: 05068A018
    • Qty Req: 6
    Our price: $8.50 List price: $10.00
  • O-Ring
    • Ref No: 12
    • Part No: 05876A098
    • Qty Req: 2
    Our price: $8.50 List price: $10.00
  • Crosshead and Piston Rod
    • Ref No: 13
    • Part No: 06211B041
    • Qty Req: 3
    Our price: $693.00 List price: $770.00
  • Link, Ductile Iron
    • Ref No: 14
    • Part No: 17042C002
    • Qty Req: 3
    Our price: $824.50 List price: $970.00
  • Screw, Cap
    • Ref No: 16
    • Part No: 06171A010K
    • Qty Req: 6
    Our price: $11.70 List price: $13.00
  • Lock Washer
    • Ref No: 16
    • Part No: 05454A004
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Wrist Pin
    • Ref No: 18
    • Part No: M01525A001
    • Qty Req: 3
    Our price: $102.00 List price: $120.00
  • Housing, Oil Seal
    • Ref No: 19
    • Part No: 24959A001
    • Qty Req: 3
    Our price: $333.00 List price: $370.00
  • Retainer, Oil Seal Housing
    • Ref No: 20
    • Part No: 24958A000
    • Qty Req: 3
    Our price: $261.00 List price: $290.00
  • Allen Screw
    • Ref No: 20
    • Part No: 06106A034
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Gasket, Seal Housing
    • Ref No: 20
    • Part No: 05059A434
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Oil Seal Kit
    • Ref No: 20
    • Part No: 24648A000
    • Qty Req: 1
    Our price: $700.00 List price: $1,000.00
  • Spring
    • Ref No: 21
    • Part No: M01643A000
    • Qty Req: 3
    Our price: $26.10 List price: $29.00
  • Gasket, Retainer
    • Ref No: 22
    • Part No: 05059A058
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Plug, Pipe, Magnetic
    • Ref No: 23
    • Part No: 17481A002
    • Qty Req: 1
    Our price: $15.30 List price: $17.00
  • Screw, Socket
    • Ref No: 24
    • Part No: 06106A038
    • Qty Req: 4
    Our price: $9.00 List price: $10.00
  • Lock Washer
    • Ref No: 24
    • Part No: 05454A003
    • Qty Req: 4
    Our price: $2.49 List price: $2.49
  • Cap Screw
    • Ref No: 25
    • Part No: 19105A008
    • Qty Req: 4
    Our price: $4.75 List price: $5.00
  • Screw, Cap
    • Ref No: 26
    • Part No: 16654A006
    • Qty Req: 3
    Our price: $65.70 List price: $73.00
  • Follower
    • Ref No: 27
    • Part No: 18923A002
    • Qty Req: 3
    Our price: $93.50 List price: $110.00
  • Cover-Lower, Body, Cylinder
    • Ref No: 28
    • Part No: M01520A001
    • Qty Req: 1
    Our price: $22.50 List price: $25.00
  • Packing - V-Ring
    • Ref No: 29
    • Part No: 18922A000
    • Qty Req: 3
    Our price: $153.00 List price: $180.00
  • Stud
    • Ref No: 30
    • Part No: 18924A012
    • Qty Req: 3
    Our price: $263.00 List price: $310.00
  • Retainer
    • Ref No: 31
    • Part No: 18879A002
    • Qty Req: 3
    Our price: $110.50 List price: $130.00
  • Washer
    • Ref No: 32
    • Part No: 05030A128
    • Qty Req: 3
    Our price: $9.35 List price: $11.00
  • Spring
    • Ref No: 33
    • Part No: 18920A000
    • Qty Req: 3
    Our price: $42.50 List price: $50.00
  • Ring
    • Ref No: 34
    • Part No: 18921A000
    • Qty Req: 3
    Our price: $81.60 List price: $96.00
  • Stud
    • Ref No: 38
    • Part No: 05659A560
    • Qty Req: 6
    Our price: $13.50 List price: $15.00
  • Stud
    • Ref No: 39
    • Part No: 05659A089
    • Qty Req: 6
    Our price: $41.65 List price: $49.00
  • Clamp, Valve Cap
    • Ref No: 40
    • Part No: 20848A000
    • Qty Req: 3
    Our price: $102.00 List price: $120.00
  • Clamp, Cylinder Cap
    • Ref No: 41
    • Part No: 20856A000
    • Qty Req: 3
    Our price: $246.50 List price: $290.00
  • Cap, Valve
    • Ref No: 42
    • Part No: 17390A000
    • Qty Req: 3
    Our price: $117.00 List price: $130.00
  • O-Ring
    • Ref No: 43
    • Part No: 05876A064
    • Qty Req: 3
    Our price: $5.95 List price: $7.00
  • Cap, Cylinder
    • Ref No: 44
    • Part No: 20849A000
    • Qty Req: 3
    Our price: $153.00 List price: $180.00
  • O-Ring
    • Ref No: 45
    • Part No: 05876A096
    • Qty Req: 3
    Our price: $7.20 List price: $8.00
  • Suction Valve and Seat Complete
    • Ref No: 46
    • Part No: 18925A013K
    • Qty Req: 3
    Our price: $501.50 List price: $590.00
  • Discharge Valve and Seat Complete
    • Ref No: 47
    • Part No: 18925A014K
    • Qty Req: 3
    Our price: $501.50 List price: $590.00
  • Seat, Valve
    • Ref No: 47
    • Part No: 18835A004
    • Qty Req: 6
    Our price: $242.10 List price: $269.00
  • Spring, Valve, Suction
    • Ref No: 47
    • Part No: 18463A000
    • Qty Req: 3
    Our price: $70.00 List price: $20.00
  • Spring, Suction Valve
    • Ref No: 47
    • Part No: 11829A000
    • Qty Req: 3
    Our price: $14.11 List price: $17.00
  • Retainer, Spring
    • Ref No: 47
    • Part No: 18833A001
    • Qty Req: 6
    Our price: $12.75 List price: $17.00
  • Screw Cap 316
    • Ref No: 47
    • Part No: 18832A001
    • Qty Req: 6
    Our price: $41.65 List price: $49.00
  • Cylinder Liner
    • Ref No: 48
    • Part No: 20851A001
    • Qty Req: 3
    Our price: $927.00 List price: $1,030.00
  • Plug, Pipe 1-1/4" NPT, Alum, Bronze
    • Ref No: 48
    • Part No: 05022A065
    • Qty Req: 1
    Our price: $202.50 List price: $225.00
  • Plug, 3" Pipe
    • Ref No: 48
    • Part No: 03210A010
    • Qty Req: 2
    Our price: $450.00 List price: $500.00
  • Washer
    • Ref No: 49
    • Part No: 05030A020
    • Qty Req: 2
    Our price: $3.60 List price: $4.00
  • Plug, 1/2" Pipe
    • Ref No: 50
    • Part No: 05022A063
    • Qty Req: 3
    Our price: $12.60 List price: $14.00
  • Plug, 1" Pipe
    • Ref No: 51
    • Part No: 05022A064
    • Qty Req: 3
    Our price: $97.20 List price: $108.00
