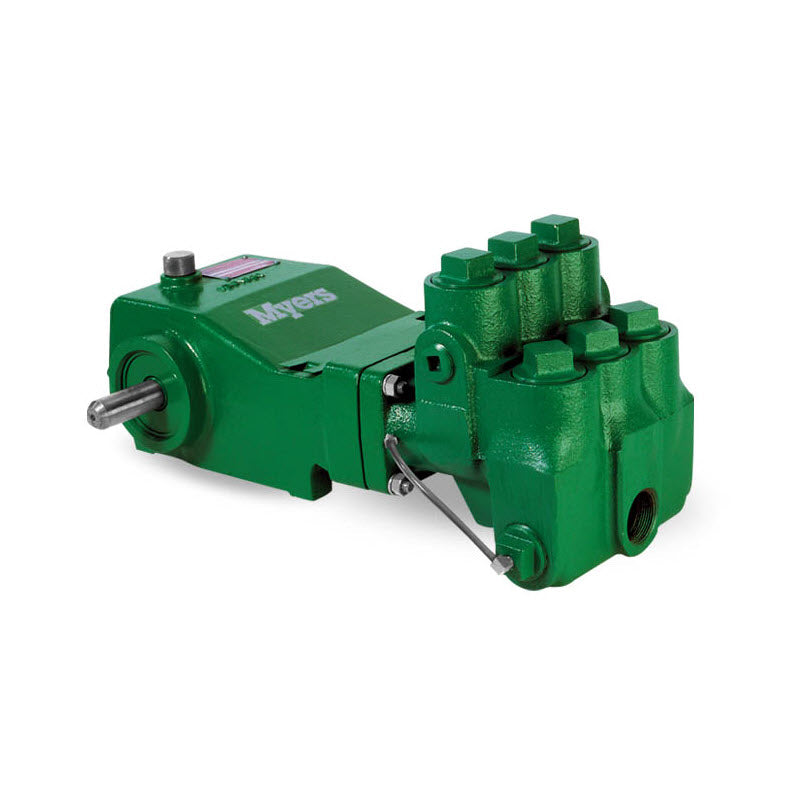

Myers CXP30-12 High Pressure Reciprocating Plunger Pump

Myers CXP30-12 High Pressure Reciprocating Plunger Pump

Brand:
Myers
Weight:
155.0 lb
Item #
CXP3012
1 1

Myers CXP30-12 High Pressure Reciprocating Plunger Pump

Myers CXP30-12 High Pressure Reciprocating Plunger Pump

Brand:
Myers
Weight:
155.0 lb
Item #
CXP3012

$15,102.00
$15,102.00 List Price: $25,170.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 45,306 points with this purchase.

See Details

View full details

Product Overview

Myers CXP30-12 High Pressure Reciprocating Plunger Pump

KEY FEATURES
  • Flows to 30 G

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Plunger Cover
    • Ref No: 1
    • Part No: 19324A000
    • Qty Req: 1
    Our price: $27.00 List price: $30.00
  • Oil Gauge
    • Ref No: 2
    • Part No: 20360A000
    • Qty Req: 1
    Our price: $382.50 List price: $450.00
  • O-Ring
    • Ref No: 3
    • Part No: 05876A074
    • Qty Req: 1
    Our price: $4.50 List price: $5.00
  • Gasket
    • Ref No: 5
    • Part No: 19314B000
    • Qty Req: 1
    Our price: $14.45 List price: $17.00
  • Cover, Rear
    • Ref No: 6
    • Part No: 19315B000
    • Qty Req: 1
    Our price: $38.95 List price: $41.00
  • Cap, Screw, Rear Cover
    • Ref No: 7
    • Part No: 19100A001
    • Qty Req: 8
    Our price: $0.90 List price: $1.00
  • Crankshaft
    • Ref No: 8
    • Part No: 18451C002
    • Qty Req: 1
    Our price: $702.90 List price: $781.00
  • Key
    • Ref No: 8A
    • Part No: 05818A003
    • Qty Req: 1
    Our price: $7.20 List price: $8.00
  • Bearing, Roller, Crankshaft
    • Ref No: 9
    • Part No: 06114A003
    • Qty Req: 2
    Our price: $357.00 List price: $420.00
  • Retaining Ring
    • Ref No: 11
    • Part No: 10848A016
    • Qty Req: 1
    Our price: $68.00 List price: $80.00
  • O-Ring
    • Ref No: 12
    • Part No: 05876A035
    • Qty Req: 1
    Our price: $8.50 List price: $10.00
  • Cap, Bearing
    • Ref No: 13
    • Part No: 18452A000
    • Qty Req: 1
    Our price: $180.00 List price: $200.00
  • Plug, Pipe, 1/4" NPT
    • Ref No: 14
    • Part No: 05022A009
    • Qty Req: 1
    Our price: $16.00 List price: $20.00
  • Link Complete
    • Ref No: 15
    • Part No: 18836B000
    • Qty Req: 3
    Our price: $493.00 List price: $580.00
  • Half Bearing
    • Ref No: 16
    • Part No: 18837A000
    • Qty Req: 3
    Our price: $108.00 List price: $120.00
  • Pin, Link to Crosshead
    • Ref No: 17
    • Part No: 18448A000
    • Qty Req: 3
    Our price: $76.50 List price: $90.00
  • Bushing
    • Ref No: 17A
    • Part No: 27877A000K
    • Qty Req: 3
    Our price: $144.00 List price: $160.00
  • Crosshead
    • Ref No: 18
    • Part No: 18449B001
    • Qty Req: 3
    Our price: $807.50 List price: $950.00
  • Oil Seal, Crosshead to Crankcase
    • Ref No: 19
    • Part No: 14383A003
    • Qty Req: 3
    Our price: $46.75 List price: $55.00
  • Washer, Splash, Nylon
    • Ref No: 20
    • Part No: 05030A198
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Valve
    • Ref No: 31
    • Part No: 18834A000
    • Qty Req: 6
    Our price: $68.00 List price: $80.00
  • Valve Seat
    • Ref No: 32
    • Part No: 18835A000
    • Qty Req: 6
    Our price: $255.00 List price: $300.00
  • Screw
    • Ref No: 33
    • Part No: 18832A000
    • Qty Req: 6
    Our price: $76.50 List price: $90.00
  • Retainer, Spring
    • Ref No: 34
    • Part No: 18833A001
    • Qty Req: 6
    Our price: $12.75 List price: $17.00
  • Spring, Suction Valve
    • Ref No: 35
    • Part No: 11829A000
    • Qty Req: 6
    Our price: $14.11 List price: $17.00
  • Spring, Valve
    • Ref No: 36
    • Part No: 18462A000
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Cap, Valve Iron
    • Ref No: 37
    • Part No: 24893A001
    • Qty Req: 6
    Our price: $153.00 List price: $180.00
  • Plate, Seal
    • Ref No: 38
    • Part No: 24895B000
    • Qty Req: 3
    Our price: $501.50 List price: $590.00
  • Washer, Seal
    • Ref No: 39
    • Part No: 24894A000
    • Qty Req: 3
    Our price: $56.70 List price: $63.00
  • Seal, High Pressure
    • Ref No: 40
    • Part No: 24897A001
    • Qty Req: 6
    Our price: $110.50 List price: $130.00
  • Ring, Back-Up
    • Ref No: 41
    • Part No: 24898A001
    • Qty Req: 3
    Our price: $37.80 List price: $42.00
  • Plunger, Ceramic
    • Ref No: 42
    • Part No: 24896B000
    • Qty Req: 3
    Our price: $986.00 List price: $1,160.00
  • O-Ring
    • Ref No: 43
    • Part No: 05876A030
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Back-Up Ring
    • Ref No: 44
    • Part No: 18753A004
    • Qty Req: 6
    Our price: $8.50 List price: $10.00
  • O-Ring
    • Ref No: 45
    • Part No: 05876A158
    • Qty Req: 3
    Our price: $10.20 List price: $12.00
  • Gasket, Flange
    • Ref No: 46
    • Part No: 24792B000
    • Qty Req: 1
    Our price: $22.10 List price: $26.00
  • O-Ring
    • Ref No: 47
    • Part No: 05876A092
    • Qty Req: 3
    Our price: $6.80 List price: $8.00
  • Fitting, Straight
    • Ref No: 49
    • Part No: 10519A002
    • Qty Req: 1
    Our price: $22.10 List price: $26.00
  • Fitting, 90 degree
    • Ref No: 49A
    • Part No: 23188A001
    • Qty Req: 1
    Our price: $7.65 List price: $8.50
  • Studs
    • Ref No: 51
    • Part No: 05659A116
    • Qty Req: 8
    Our price: $12.60 List price: $14.00
  • Nut, Hex
    • Ref No: 52
    • Part No: 19109A026
    • Qty Req: 8
    Our price: $3.60 List price: $4.00
  • Lockwasher
    • Ref No: 53
    • Part No: 05454A005
    • Qty Req: 8
    Our price: $3.60 List price: $4.00
