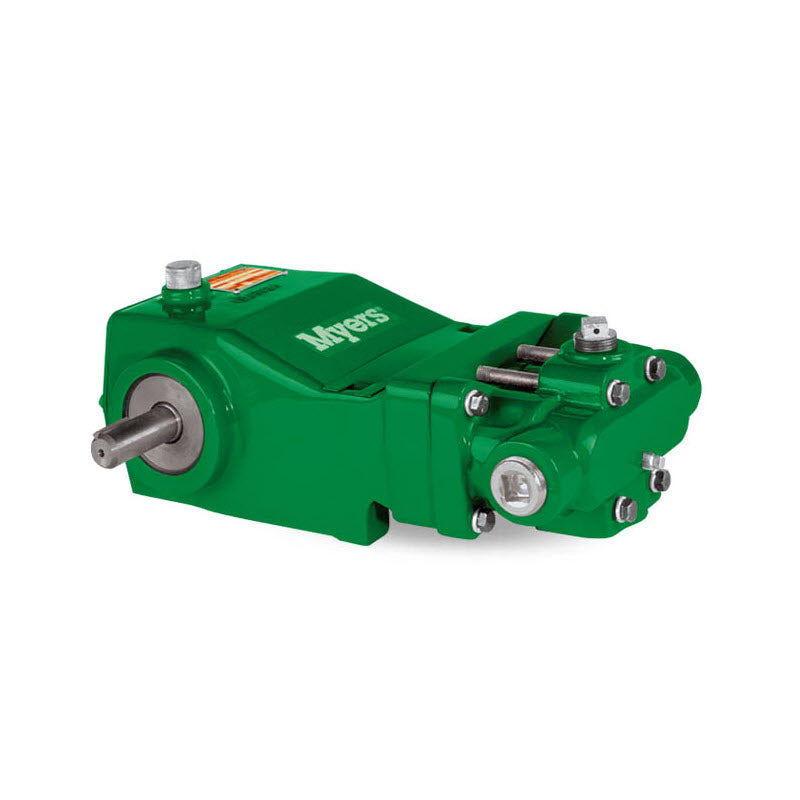

Myers CX20-10AV High Pressure Reciprocating Piston Pump

Myers CX20-10AV High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
150.0 lb
Item #
CX2010AV
Skip to product information
1 of 1

Myers CX20-10AV High Pressure Reciprocating Piston Pump

Myers CX20-10AV High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
150.0 lb
Item #
CX2010AV

Regular price $8,232.00
Sale price $8,232.00 Regular price List Price: $13,720.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 24,696 points with this purchase.

View full details

Collapsible content

Product Overview

This reciprocating pump features spring-loaded, chevron style packaging that can handle pressure ratings up to 1,000 PSI and flows up to 20 GPM. With constant lubrication in all end parts, the smooth ceramic cylinder liners can operate continuously even at maximum flow and pressure. The fluid end is available in 316 stainless steel, aluminum-bronze, or high-strength cast iron. This pump includes three suction ports.

Manufacturer description

Rugged design for continuous operation. Three suction ports for installation versatility. Smooth solid ceramic cylinder liners allow continuous operation at maximum pressure and flow. Large concentric suction and discharge valves allow complete filling of cylinders. Solid cast iron power end with constant lubrication of all working parts. Fluid end available in high-strength cast iron, aluminum-bronze, or 316 stainless steel.

Features

  • Max flow: 20.8 gpm
  • Max pressure: 1000 psi
  • Max speed: 560 rpm
  • Port sizes: 1-1/2" NPT suction, 1" NPT discharge
  • Cylinder bore: 1-3/4"
  • Max HP: 14.4
  • Fluid end: Aluminum bronze
  • Maximum temperature rating: 180°F
  • Weight: 104 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Body, Liquid End, w/ Spring Guide, Ductile Iron (CX10, CX20)
    • Ref No: 1
    • Part No: 19319D012K
    • Qty Req: 1
    Our price: $1,453.50 List price: $1,710.00
  • Spring Guide
    • Ref No: 2
    • Part No: 20488A000
    • Qty Req: 3
    Our price: $68.00 List price: $80.00
  • Spring, Discharge
    • Ref No: 3
    • Part No: 18318A000
    • Qty Req: 3
    Our price: $46.75 List price: $55.00
  • Valve, Discharge
    • Ref No: 4
    • Part No: 18317A000
    • Qty Req: 3
    Our price: $27.00 List price: $30.00
  • Valve Seat
    • Ref No: 5
    • Part No: 19320A000
    • Qty Req: 3
    Our price: $342.00 List price: $380.00
  • O-Ring
    • Ref No: 6
    • Part No: 5876A203
    • Qty Req: 3
    Our price: $6.80 List price: $8.00
  • O-Ring
    • Ref No: 7
    • Part No: 5876A092
    • Qty Req: 6
    Our price: $8.10 List price: $9.00
  • Valve, Suction
    • Ref No: 8
    • Part No: 19321A000
    • Qty Req: 3
    Our price: $56.10 List price: $66.00
  • Spring, Suction
    • Ref No: 9
    • Part No: 19322A000
    • Qty Req: 3
    Our price: $31.45 List price: $37.00
  • Spacer, Cylinder Liner to Seat
    • Ref No: 10
    • Part No: 19323A000
    • Qty Req: 3
    Our price: $161.50 List price: $190.00
  • Gasket
    • Ref No: 11
    • Part No: 5059A398
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Screw
    • Ref No: 12
    • Part No: 17050A001
    • Qty Req: 3
    Our price: $49.50 List price: $55.00
  • Washer, Cap Screw to Packing
    • Ref No: 13
    • Part No: 05030A205
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Spring, Spacer, Plunger
    • Ref No: 14
    • Part No: 19606A000
    • Qty Req: 3
    Our price: $17.85 List price: $21.00
  • Washer, Packing, Plunger
    • Ref No: 15
    • Part No: 5030A145
    • Qty Req: 3
    Our price: $21.85 List price: $23.00
  • "V" Packing, for Plunger
    • Ref No: 16
    • Part No: 18922A002
    • Qty Req: 3
    Our price: $127.50 List price: $150.00
  • Follower, Plunger
    • Ref No: 17
    • Part No: 19328A000
    • Qty Req: 3
    Our price: $127.50 List price: $150.00
  • Washer, Plunger, Stainless Steel
    • Ref No: 18
    • Part No: 5030A143
    • Qty Req: 3
    Our price: $20.90 List price: $22.00
  • Stem, Plunger
    • Ref No: 19
    • Part No: 19326A000
    • Qty Req: 3
    Our price: $221.00 List price: $260.00
  • Drain Plug, 1/4" NPT SST
    • Ref No: 19
    • Part No: 5022A061
    • Qty Req: 1
    Our price: $10.45 List price: $11.00
  • Cylinder Liner, Ceramic
    • Ref No: 20
    • Part No: 19346A001
    • Qty Req: 3
    Our price: $620.50 List price: $730.00
  • Washer, Packing, Plunger
    • Ref No: 21
    • Part No: 5030A141
    • Qty Req: 3
    Our price: $5.95 List price: $7.00
  • Crosshead
    • Ref No: 22
    • Part No: 18449B001
    • Qty Req: 3
    Our price: $475.00 List price: $500.00
  • Washer, Nylon
    • Ref No: 22
    • Part No: 5030A198
    • Qty Req: 3
    Our price: $14.96 List price: $17.00
  • Oil Seal, Crosshead to Crankcase
    • Ref No: 23
    • Part No: 14383A003
    • Qty Req: 3
    Our price: $46.75 List price: $55.00
  • Pin, Link to Crosshead
    • Ref No: 24
    • Part No: 18448A000
    • Qty Req: 3
    Our price: $76.50 List price: $90.00
  • Link Complete
    • Ref No: 25
    • Part No: 18836B000
    • Qty Req: 3
    Our price: $493.00 List price: $580.00
  • Bearing Halves, pair
    • Ref No: 25A
    • Part No: 18837A100K
    • Qty Req: 1
    Our price: $161.50 List price: $190.00
  • Cap Screw for Link
    • Ref No: 26
    • Part No: 6106A016
    • Qty Req: 6
    Our price: $5.10 List price: $6.00
  • Sleeve Bearing
    • Ref No: 26
    • Part No: 18837A020
    • Qty Req: 3
    Our price: $680.00 List price: $800.00
  • O-Ring
    • Ref No: 27
    • Part No: 5876A035
    • Qty Req: 1
    Our price: $8.50 List price: $10.00
  • Bearing, Roller, Crankshaft
    • Ref No: 28
    • Part No: 6114A003
    • Qty Req: 2
    Our price: $158.65 List price: $167.00
  • Oil Seal, Crankshaft to Crankcase
    • Ref No: 29
    • Part No: 14383A004
    • Qty Req: 2
    Our price: $36.00 List price: $40.00
  • Crankshaft
    • Ref No: 30
    • Part No: 18451C002
    • Qty Req: 1
    Our price: $702.90 List price: $781.00
  • Retaining Ring
    • Ref No: 31
    • Part No: 10848A016
    • Qty Req: 1
    Our price: $68.00 List price: $80.00
  • Cap, Bearing
    • Ref No: 32
    • Part No: 18452A000
    • Qty Req: 1
    Our price: $180.00 List price: $200.00
  • Gasket
    • Ref No: 33
    • Part No: 19314B000
    • Qty Req: 1
    Our price: $14.45 List price: $17.00
  • Cover, Rear
    • Ref No: 34
    • Part No: 19315B000
    • Qty Req: 1
    Our price: $38.95 List price: $41.00
  • Cap, Screw, Rear Cover
    • Ref No: 35
    • Part No: 19100A001
    • Qty Req: 8
    Our price: $0.90 List price: $1.00
  • Oil Gauge w/ O-Ring 5876A074
    • Ref No: 36
    • Part No: 20360A010
    • Qty Req: 1
    Our price: $382.50 List price: $450.00
  • Crankcase and Cylinder Body
    • Ref No: 37
    • Part No: 19313E001
    • Qty Req: 1
    Our price: $1,842.30 List price: $2,047.00
  • Cap Screw, Liquid Body to Cylinder Body
    • Ref No: 38
    • Part No: 19102A014
    • Qty Req: 4
    Our price: $3.60 List price: $4.00
  • Lockwasher, 7/16"
    • Ref No: 38
    • Part No: 5454A005
    • Qty Req: 8
    Our price: $3.80 List price: $4.00
  • Cap Screw
    • Ref No: 39
    • Part No: 19102A015
    • Qty Req: 4
    Our price: $41.65 List price: $49.00
  • Plug, Pipe, 1-1/4" NPT
    • Ref No: 39
    • Part No: 5022A041
    • Qty Req: 2
    Our price: $11.40 List price: $12.00
  • Plunger Cover
    • Ref No: 40
    • Part No: 19324A000
    • Qty Req: 1
    Our price: $27.00 List price: $30.00
