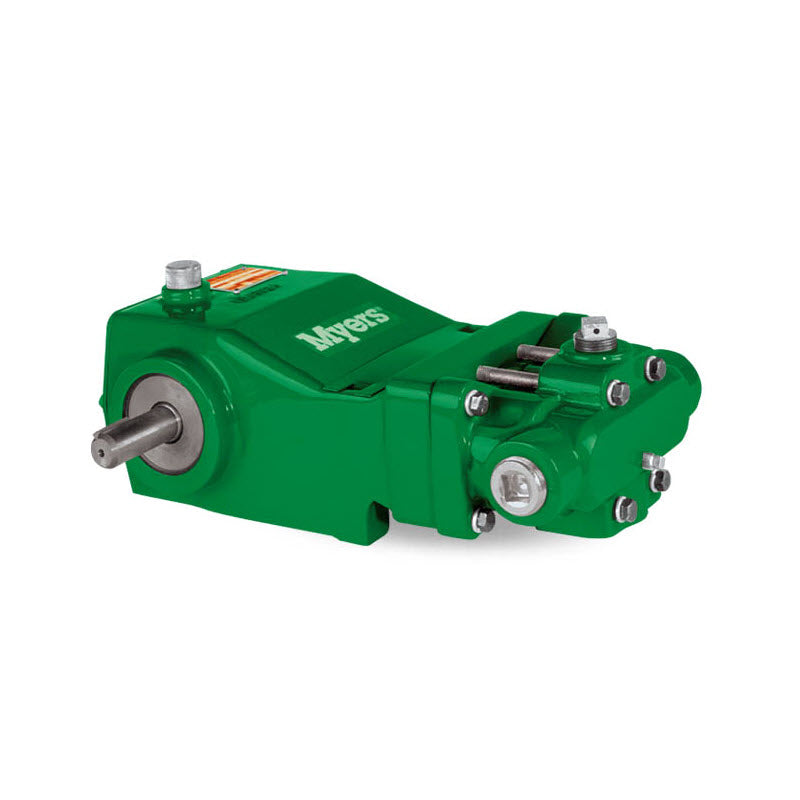

Myers CX10-15AV High Pressure Reciprocating Piston Pump

Myers CX10-15AV High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
150.0 lb
Item #
CX1015AV

$7,314.00
$7,314.00 List Price: $12,190.00

Earn 21,942 points with this purchase.

See Details

View full details

Product Overview

Myers CX10-15AV High Pressure Reciprocating Piston Pump

KEY FEATURES
  • Flows to 10 GPM

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Body, Liquid End, w/ Spring Guide, Ductile Iron (CX10, CX20)
    • Ref No: 1
    • Part No: 19319D012K
    • Qty Req: 1
    Our price: $1,453.50 List price: $1,710.00
  • Spring Guide
    • Ref No: 2
    • Part No: 20488A000
    • Qty Req: 3
    Our price: $68.00 List price: $80.00
  • Spring, Discharge
    • Ref No: 3
    • Part No: 18318A000
    • Qty Req: 3
    Our price: $45.05 List price: $53.00
  • Valve, Discharge
    • Ref No: 4
    • Part No: 18317A000
    • Qty Req: 3
    Our price: $26.10 List price: $29.00
  • Valve Seat
    • Ref No: 5
    • Part No: 19320A000
    • Qty Req: 3
    Our price: $342.00 List price: $380.00
  • O-Ring
    • Ref No: 6
    • Part No: 5876A203
    • Qty Req: 3
    Our price: $1.80 List price: $2.00
  • O-Ring
    • Ref No: 7
    • Part No: 5876A092
    • Qty Req: 6
    Our price: $6.80 List price: $8.00
  • Valve, Suction
    • Ref No: 8
    • Part No: 19321A000
    • Qty Req: 3
    Our price: $54.40 List price: $64.00
  • Spring, Suction
    • Ref No: 9
    • Part No: 19322A000
    • Qty Req: 3
    Our price: $31.45 List price: $37.00
  • Spacer, Cylinder Liner to Seat
    • Ref No: 10
    • Part No: 19323A000
    • Qty Req: 3
    Our price: $161.50 List price: $190.00
  • Gasket
    • Ref No: 11
    • Part No: 5059A398
    • Qty Req: 3
    Our price: $11.90 List price: $14.00
  • Screw
    • Ref No: 12
    • Part No: 17050A001
    • Qty Req: 3
    Our price: $45.05 List price: $53.00
  • Washer, 316 SST
    • Ref No: 13
    • Part No: 5030A204
    • Qty Req: 3
    Our price: $19.00 List price: $20.00
  • Spring, Spacer, Plunger
    • Ref No: 14
    • Part No: 19605A000
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Washer, Packing, Plunger
    • Ref No: 15
    • Part No: 5030A141
    • Qty Req: 3
    Our price: $5.95 List price: $7.00
  • "V" Packing for Plunger
    • Ref No: 16
    • Part No: 18922A001
    • Qty Req: 3
    Our price: $85.00 List price: $100.00
  • Follower, Plunger
    • Ref No: 17
    • Part No: 19327A000
    • Qty Req: 3
    Our price: $54.40 List price: $64.00
  • Washer, Plunger, Stainless Steel
    • Ref No: 18
    • Part No: 5030A142
    • Qty Req: 3
    Our price: $8.55 List price: $9.00
  • Stem, Plunger
    • Ref No: 19
    • Part No: 19325A000
    • Qty Req: 3
    Our price: $161.50 List price: $190.00
  • Drain Plug, 1/4" NPT SST
    • Ref No: 19
    • Part No: 5022A061
    • Qty Req: 1
    Our price: $10.45 List price: $11.00
  • Cylinder Liner, Ceramic
    • Ref No: 20
    • Part No: 19346A000
    • Qty Req: 3
    Our price: $433.50 List price: $510.00
  • Crosshead
    • Ref No: 22
    • Part No: 18449B001
    • Qty Req: 3
    Our price: $475.00 List price: $500.00
  • Washer, Nylon
    • Ref No: 22
    • Part No: 5030A198
    • Qty Req: 3
    Our price: $14.96 List price: $17.00
  • Oil Seal, Crosshead to Crankcase
    • Ref No: 23
    • Part No: 14383A003
    • Qty Req: 3
    Our price: $45.05 List price: $53.00
  • Pin, Link to Crosshead
    • Ref No: 24
    • Part No: 18448A000
    • Qty Req: 3
    Our price: $68.00 List price: $80.00
  • Link Complete
    • Ref No: 25
    • Part No: 18836B000
    • Qty Req: 3
    Our price: $476.00 List price: $560.00
  • Bearing Halves, pair
    • Ref No: 25A
    • Part No: 18837A100K
    • Qty Req: 1
    Our price: $161.50 List price: $190.00
  • Cap Screw for Link
    • Ref No: 26
    • Part No: 6106A016
    • Qty Req: 6
    Our price: $5.10 List price: $6.00
  • Sleeve Bearing
    • Ref No: 26
    • Part No: 18837A020
    • Qty Req: 3
    Our price: $680.00 List price: $800.00
  • O-Ring
    • Ref No: 27
    • Part No: 5876A035
    • Qty Req: 1
    Our price: $8.50 List price: $10.00
  • Ball Bearing, Crankshaft
    • Ref No: 28
    • Part No: 8565A011
    • Qty Req: 2
    Our price: $246.50 List price: $290.00
  • Oil Seal, Crankshaft to Crankcase
    • Ref No: 29
    • Part No: 14383A004
    • Qty Req: 2
    Our price: $36.00 List price: $40.00
  • Crankshaft
    • Ref No: 30
    • Part No: 18451C002
    • Qty Req: 1
    Our price: $702.90 List price: $781.00
  • Retaining Ring
    • Ref No: 31
    • Part No: 10848A016
    • Qty Req: 1
    Our price: $68.00 List price: $80.00
  • Cap, Bearing
    • Ref No: 32
    • Part No: 18452A000
    • Qty Req: 1
    Our price: $180.00 List price: $200.00
  • Gasket
    • Ref No: 33
    • Part No: 19314B000
    • Qty Req: 1
    Our price: $13.60 List price: $16.00
  • Cover, Rear
    • Ref No: 34
    • Part No: 19315B000
    • Qty Req: 1
    Our price: $38.95 List price: $41.00
  • Cap, Screw, Rear Cover
    • Ref No: 35
    • Part No: 19100A001
    • Qty Req: 8
    Our price: $0.90 List price: $1.00
  • Oil Gauge w/ O-Ring 5876A074
    • Ref No: 36
    • Part No: 20360A010
    • Qty Req: 1
    Our price: $382.50 List price: $450.00
  • Crankcase and Cylinder Body
    • Ref No: 37
    • Part No: 19313E001
    • Qty Req: 1
    Our price: $1,842.30 List price: $2,047.00
  • Cap Screw, Liquid Body to Cylinder Body
    • Ref No: 38
    • Part No: 19102A014
    • Qty Req: 4
    Our price: $3.60 List price: $4.00
  • Lockwasher, 7/16"
    • Ref No: 38
    • Part No: 5454A005
    • Qty Req: 8
    Our price: $3.80 List price: $4.00
  • Cap Screw
    • Ref No: 39
    • Part No: 19102A015
    • Qty Req: 4
    Our price: $41.65 List price: $49.00
  • Plug, Pipe, 1-1/4" NPT
    • Ref No: 39
    • Part No: 5022A041
    • Qty Req: 2
    Our price: $11.40 List price: $12.00
  • Plunger Cover
    • Ref No: 40
    • Part No: 19324A000
    • Qty Req: 1
    Our price: $27.00 List price: $30.00
