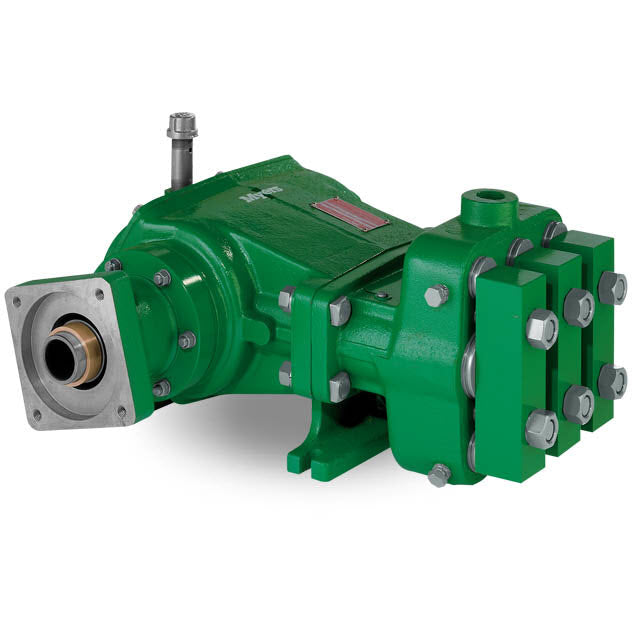

Myers C40-20 High Pressure Reciprocating Piston Pump

Myers C40-20 High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
230.0 lb
Item #
C4020
  • Myers C40-20 High Pressure Reciprocating Piston Pump
1 1

Myers C40-20 High Pressure Reciprocating Piston Pump

Myers C40-20 High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
230.0 lb
Item #
C4020

$13,200.00
$13,200.00 List Price: $22,000.00

Earn 39,600 points with this purchase.

See Details

View full details

Product Overview

Myers C40-20 High Pressure Reciprocating Piston Pump

KEY FEATURES

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Washer, Seal
    • Ref No: 1
    • Part No: 14946A003
    • Qty Req: 12
    Our price: $10.65 List price: $12.00
  • Screw Cap, 3/8"x1"
    • Ref No: 2
    • Part No: 19101A013
    • Qty Req: 12
    Our price: $3.60 List price: $4.00
  • O-Ring
    • Ref No: 3
    • Part No: 05876A240
    • Qty Req: 2
    Our price: $11.90 List price: $14.00
  • Key, Square
    • Ref No: 4
    • Part No: 05818A077
    • Qty Req: 1
    Our price: $8.50 List price: $10.00
  • Crankshaft
    • Ref No: 5
    • Part No: 06074D016
    • Qty Req: 1
    Our price: $2,018.70 List price: $2,243.00
  • Cap, Bearing Open
    • Ref No: 7
    • Part No: 10414B002
    • Qty Req: 1
    Our price: $229.50 List price: $270.00
  • Gasket, Shim .003 Green
    • Ref No: 8A
    • Part No: 05011A027
    • Qty Req: 6
    Our price: $9.35 List price: $11.00
  • Gasket, Shim .015 Pink
    • Ref No: 8B
    • Part No: 05011A028
    • Qty Req: 4
    Our price: $9.35 List price: $11.00
  • Bearing Cup
    • Ref No: 9
    • Part No: 05675A018
    • Qty Req: 2
    Our price: $263.50 List price: $310.00
  • Bearing Cone
    • Ref No: 10
    • Part No: 05674A019
    • Qty Req: 2
    Our price: $425.00 List price: $500.00
  • Cap, Bearing Closed
    • Ref No: 11
    • Part No: 10414B001
    • Qty Req: 1
    Our price: $204.00 List price: $240.00
  • Pin, CRK & WR
    • Ref No: 12
    • Part No: 06116A000
    • Qty Req: 3
    Our price: $153.00 List price: $180.00
  • Crosshead & Piston Rod
    • Ref No: 13
    • Part No: 17515B001
    • Qty Req: 3
    Our price: $697.00 List price: $820.00
  • Link
    • Ref No: 14
    • Part No: 27300B000
    • Qty Req: 3
    Our price: $450.00 List price: $500.00
  • Bearing
    • Ref No: 15
    • Part No: 06109A000
    • Qty Req: 6
    Our price: $178.50 List price: $210.00
  • Plug, Magnetic 1/2
    • Ref No: 16
    • Part No: 17481A001
    • Qty Req: 1
    Our price: $14.40 List price: $16.00
  • Oil Gauge
    • Ref No: 17
    • Part No: 17360A014
    • Qty Req: 1
    Our price: $18.30 List price: $21.00
  • O-Ring, Oil Gauge
    • Ref No: 18
    • Part No: 110000110201
    • Qty Req: 1
    Our price: $8.50 List price: $10.00
  • Oil Fill Nipple
    • Ref No: 19
    • Part No: 17995A001
    • Qty Req: 1
    Our price: $8.10 List price: $9.00
  • Oil Fill Cap
    • Ref No: 20
    • Part No: 05737A021
    • Qty Req: 1
    Our price: $8.10 List price: $9.00
  • Lid
    • Ref No: 21
    • Part No: 06077C000
    • Qty Req: 1
    Our price: $416.50 List price: $490.00
  • Cap Screw
    • Ref No: 22
    • Part No: 19101A007
    • Qty Req: 6
    Our price: $3.60 List price: $4.00
  • Gasket
    • Ref No: 23
    • Part No: 06089B000
    • Qty Req: 1
    Our price: $28.90 List price: $34.00
  • Case, Gear
    • Ref No: 24
    • Part No: 06076D000
    • Qty Req: 1
    Our price: $952.00 List price: $1,120.00
  • Screw, Drive
    • Ref No: 26
    • Part No: 05160A004
    • Qty Req: 4
    Our price: $4.50 List price: $5.00
  • Bolt, Square
    • Ref No: 27
    • Part No: 19108A027
    • Qty Req: 4
    Our price: $4.50 List price: $5.00
  • Cup, U Metric 22
    • Ref No: 28
    • Part No: 22835A004
    • Qty Req: 6
    Our price: $15.30 List price: $17.00
  • Retainer
    • Ref No: 29
    • Part No: 24958A001
    • Qty Req: 3
    Our price: $238.00 List price: $280.00
  • O-Ring
    • Ref No: 30
    • Part No: 05876A224
    • Qty Req: 3
    Our price: $9.90 List price: $11.00
  • Gasket
    • Ref No: 31
    • Part No: 05059A052
    • Qty Req: 3
    Our price: $17.00 List price: $20.00
  • Gasket
    • Ref No: 32
    • Part No: 05059A435
    • Qty Req: 3
    Our price: $17.00 List price: $20.00
  • Spring
    • Ref No: 33
    • Part No: 06120A000
    • Qty Req: 3
    Our price: $9.35 List price: $11.00
  • Housing
    • Ref No: 34
    • Part No: 24959A002
    • Qty Req: 3
    Our price: $178.50 List price: $210.00
  • Allen Screw
    • Ref No: 35
    • Part No: 06106A034
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Washer, Lock
    • Ref No: 36
    • Part No: 05454A011
    • Qty Req: 4
    Our price: $1.80 List price: $2.00
  • Screw
    • Ref No: 38
    • Part No: 19103A008
    • Qty Req: 4
    Our price: $7.20 List price: $8.00
  • Washer
    • Ref No: 39
    • Part No: 05030A020
    • Qty Req: 2
    Our price: $3.60 List price: $4.00
  • Screw
    • Ref No: 40
    • Part No: 05028A002
    • Qty Req: 2
    Our price: $4.50 List price: $5.00
  • Lid, Cylinder Body
    • Ref No: 41
    • Part No: 06123A000
    • Qty Req: 1
    Our price: $12.75 List price: $15.00
  • Body, Cylinder
    • Ref No: 42
    • Part No: 18790E006
    • Qty Req: 1
    Our price: $1,814.40 List price: $2,016.00
  • Seat, Valve
    • Ref No: 45
    • Part No: 06125A004
    • Qty Req: 6
    Our price: $170.00 List price: $200.00
  • Valve
    • Ref No: 46
    • Part No: 17714A003
    • Qty Req: 6
    Our price: $39.10 List price: $46.00
  • Spring, Valve, Discharge
    • Ref No: 47
    • Part No: 06127A003
    • Qty Req: 3
    Our price: $33.15 List price: $39.00
  • O-Ring
    • Ref No: 48
    • Part No: 05876A171
    • Qty Req: 6
    Our price: $20.40 List price: $24.00
  • Ring, Back-Up
    • Ref No: 49
    • Part No: 18753A008
    • Qty Req: 6
    Our price: $9.35 List price: $11.00
  • Cap, Valve
    • Ref No: 50
    • Part No: 18456A007
    • Qty Req: 6
    Our price: $229.50 List price: $270.00
  • Gasket, Nylon
    • Ref No: 51
    • Part No: 05059A436
    • Qty Req: 6
    Our price: $17.00 List price: $20.00
  • Stud
    • Ref No: 52
    • Part No: 05659A130
    • Qty Req: 6
    Our price: $28.80 List price: $32.00
  • Gasket, Nylon
    • Ref No: 53
    • Part No: 05059A437
    • Qty Req: 3
    Our price: $18.70 List price: $22.00
  • Cap, Cylinder
    • Ref No: 54
    • Part No: 18457A008
    • Qty Req: 3
    Our price: $195.50 List price: $230.00
  • Ring, Back-Up
    • Ref No: 56
    • Part No: 18753A009
    • Qty Req: 3
    Our price: $8.50 List price: $10.00
  • O-Ring
    • Ref No: 57
    • Part No: 05876A172
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Plate, Steel
    • Ref No: 58
    • Part No: 26980B000
    • Qty Req: 1
    Our price: $268.20 List price: $298.00
  • Cap Screw, Nylok
    • Ref No: 59
    • Part No: 17050A004
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Plug, Pipe 3/8 BR
    • Ref No: 60
    • Part No: 06136A000
    • Qty Req: 4
    Our price: $19.80 List price: $22.00
  • Retainer, Spring
    • Ref No: 61
    • Part No: 18879A004
    • Qty Req: 3
    Our price: $110.50 List price: $130.00
  • Spring, Valve, Suction
    • Ref No: 62
    • Part No: 06127A002
    • Qty Req: 3
    Our price: $33.15 List price: $39.00
  • Spring
    • Ref No: 63
    • Part No: 18920A000
    • Qty Req: 3
    Our price: $42.50 List price: $50.00
  • Ring
    • Ref No: 64
    • Part No: 18921A000
    • Qty Req: 3
    Our price: $81.60 List price: $96.00
  • Packing - V-Ring
    • Ref No: 65
    • Part No: 18922A000
    • Qty Req: 3
    Our price: $170.00 List price: $200.00
  • Follower
    • Ref No: 66
    • Part No: 18923A002
    • Qty Req: 3
    Our price: $93.50 List price: $110.00
  • Stud, Piston
    • Ref No: 67
    • Part No: 20850A004
    • Qty Req: 3
    Our price: $323.00 List price: $380.00
  • Washer
    • Ref No: 68
    • Part No: 05030A128
    • Qty Req: 3
    Our price: $14.45 List price: $17.00
