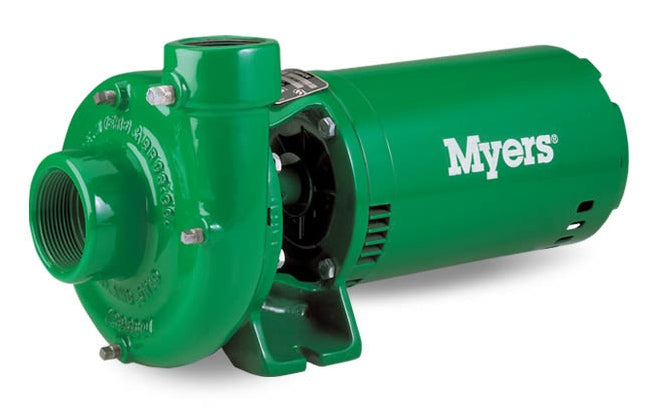

Myers 200M-7-1/2-3 Centri-Thrift Centrifugal Pump

Myers 200M-7-1/2-3 Centri-Thrift Centrifugal Pump

Brand:
Myers
Weight:
133.0 lb
Item #
200M7123
Skip to product information
1 of 1

Myers 200M-7-1/2-3 Centri-Thrift Centrifugal Pump

Myers 200M-7-1/2-3 Centri-Thrift Centrifugal Pump

Brand:
Myers
Weight:
133.0 lb
Item #
200M7123

Regular price $3,858.00
Sale price $3,858.00 Regular price List Price: $6,430.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 11,574 points with this purchase.

View full details

Collapsible content

Product Overview

Myers 200M-7-1/2-3 Centri-Thrift Centrifugal Pump

Features:

Suction/Discharge:  2-1/2" NPT, 2" NPT

High Head Capability:  Up to 240 Feet

Flow Rate:  Up to 130 GPM

Maximum Discharge Pressure:  60 PSI

Impeller:  Brass, 5-3/4" Diameter

Max Lift:  25'

Motor:  7-1/2 HP Three Phase (230/460V), Standard NEMA C Face, 60Hz/3600RPM

Myers Centri-Thrift continuous service pumps are rugged and reliable.  Over the years, these pumps have earned a reputation for dependable and efficient performance in demanding continuous service applications.

The Centri-Thrift line is available in 1-1/4", 1-1/2" and 2" discharge sizes.  Horsepower requirements range from 2 HP to 7-1/2 HP.  Capacities range to 240 gpm and heads to 140 feet.  The pumps are only available as standard fitted and can be either close-coupled or belt driven.

For adde

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Shaft Assembly
    • Ref No: sku:11914B001
    • Part No: 11914B001
    • Qty Req: 1
    Our price: $585.00 List price: $780.00
  • Bracket
    • Ref No: sku:11912D000
    • Part No: 11912D000
    • Qty Req: 1
    Our price: $453.60 List price: $504.00
  • Set Screw
    • Ref No: sku:06024A001
    • Part No: 06024A001
    • Qty Req: 2
    Our price: $7.20 List price: $8.00
  • Screw
    • Ref No: sku:19103A004
    • Part No: 19103A004
    • Qty Req: 4
    Our price: $3.60 List price: $4.00
  • Cap Screw
    • Ref No: sku:19101A016
    • Part No: 19101A016
    • Qty Req: 8
    Our price: $5.10 List price: $6.00
  • Washer
    • Ref No: sku:05454A007
    • Part No: 05454A007
    • Qty Req: 8
    Our price: $2.70 List price: $3.00
  • Lock Washer
    • Ref No: sku:05454A004
    • Part No: 05454A004
    • Qty Req: 1
    Our price: $6.30 List price: $7.00
  • Impeller
    • Ref No: sku:12936B003
    • Part No: 12936B003
    • Qty Req: 1
    Our price: $436.50 List price: $485.00
  • Key for Impeller
    • Ref No: sku:05818A025
    • Part No: 05818A025
    • Qty Req: 1
    Our price: $9.00 List price: $10.00
  • Washer
    • Ref No: sku:12933A000
    • Part No: 12933A000
    • Qty Req: 1
    Our price: $24.30 List price: $27.00
  • Washer
    • Ref No: sku:05454A014
    • Part No: 05454A014
    • Qty Req: 1
    Our price: $2.70 List price: $3.00
  • Cap Screw
    • Ref No: sku:06106A008
    • Part No: 06106A008
    • Qty Req: 1
    Our price: $5.40 List price: $6.00
  • Gasket - Case to Bracket
    • Ref No: 2
    • Part No: 05863A013
    • Qty Req: 1
    Our price: $11.90 List price: $14.00
  • Volute Case
    • Ref No: 3
    • Part No: 12938D001
    • Qty Req: 1
    Our price: $450.00 List price: $500.00
  • Plug, Pipe, 1/4" NPT
    • Ref No: 4
    • Part No: 05022A009
    • Qty Req: 1
    Our price: $16.00 List price: $20.00
  • Deflector - Rubber for 1-1/8" Shaft
    • Ref No: 5
    • Part No: 05059A321
    • Qty Req: 1
    Our price: $7.20 List price: $8.00
  • Ring, Wear, Brass
    • Ref No: 6
    • Part No: 12934A000
    • Qty Req: 1
    Our price: $55.80 List price: $62.00
