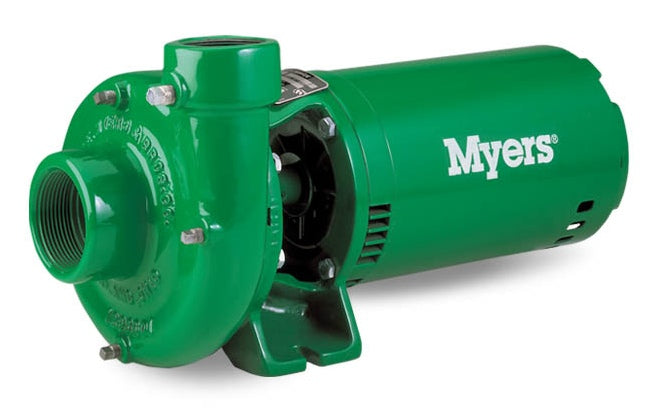

Myers 150M-3-3 Centri-Thrift Centrifugal Pump

Myers 150M-3-3 Centri-Thrift Centrifugal Pump

Item Code:
150M33
Weight:
81.0 lb
Manufacturer:
Myers
Our price:
$1,840.00
List price:
$2,300.00
Overview:

Myers 150M-3-3 Centri-Thrift Centrifugal Pump

Features:

Suction/Discharge:  2" NPT, 1-1/2" NPT

High Head Capability:  Up to 140 Feet

Flow Rate:  Up to 160 GPM

Maximum Discharge Pressure:  60 PSI

Impeller:  Brass, 5-1/8" Diameter

Max Lift:  25'

Motor:  3 HP Three Phase (230/460V), Standard NEMA C Face, 60Hz/3600RPM

Myers Centri-Thrift continuous service pumps are rugged and reliable.  Over the years, these pumps have earned a reputation for dependable and efficient performance in demanding continuous service applications.

The Centri-Thrift line is available in 1-1/4", 1-1/2" and 2" discharge sizes.  Horsepower requirements range from 2 HP to 7-1/2 HP.  Capacities range to 240 gpm and heads to 140 feet.  The pumps are only available as standard fitted and can be either close-coupled or belt driven.

For added versat

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 2
  • Part No: 11714B001
  • Qty Req: 1
Our price: $252.00 List price: $280.00
  • Ref No: 3
  • Part No: 11715D000
  • Qty Req: 1
Our price: $135.00 List price: $150.00
  • Ref No: 3
  • Part No: 05013A015
  • Qty Req: 2
Our price: $3.60 List price: $4.00
  • Ref No: 4
  • Part No: 19101A016
  • Qty Req: 4
Our price: $3.60 List price: $4.00
  • Ref No: 4
  • Part No: 19101A013
  • Qty Req: 4
Our price: $3.60 List price: $4.00
  • Ref No: 5
  • Part No: 19101A016
  • Qty Req: 8
Our price: $3.60 List price: $4.00
  • Ref No: 6
  • Part No: 05454A007
  • Qty Req: 12
Our price: $2.70 List price: $3.00
  • Ref No: 6
  • Part No: 05454A004
  • Qty Req: 4
Our price: $3.60 List price: $4.00
  • Ref No: 8
  • Part No: 05818A025
  • Qty Req: 1
Our price: $9.00 List price: $10.00
  • Ref No: 9
  • Part No: 12933A000
  • Qty Req: 1
Our price: $24.30 List price: $27.00
  • Ref No: 9
  • Part No: 05454A014
  • Qty Req: 1
Our price: $2.70 List price: $3.00
  • Ref No: 10
  • Part No: 06106A008
  • Qty Req: 1
Our price: $5.40 List price: $6.00
  • Ref No: 12
  • Part No: 12937D001
  • Qty Req: 1
Our price: $382.50 List price: $425.00
  • Ref No: 12
  • Part No: 12934A000
  • Qty Req: 1
Our price: $55.80 List price: $62.00
  • Ref No: 13
  • Part No: 05022A009
  • Qty Req: 1
Our price: $16.00 List price: $20.00
