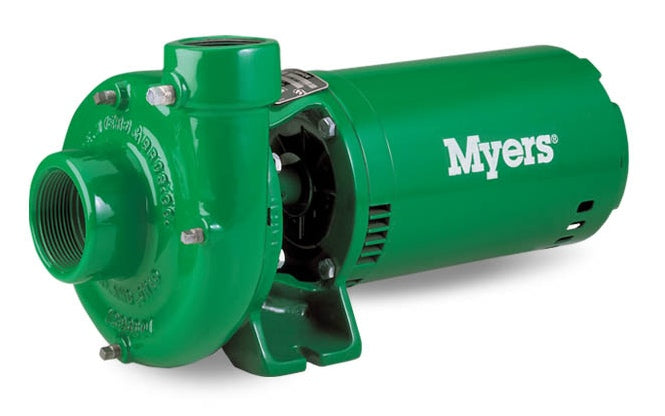

Myers 150M-2-3 Centri-Thrift Centrifugal Pump

Myers 150M-2-3 Centri-Thrift Centrifugal Pump

Brand:
Myers
Weight:
80.0 lb
Item #
150M23
Skip to product information
1 of 0

Myers 150M-2-3 Centri-Thrift Centrifugal Pump

Myers 150M-2-3 Centri-Thrift Centrifugal Pump

Brand:
Myers
Weight:
80.0 lb
Item #
150M23

Regular price $2,046.00
Sale price $2,046.00 Regular price List Price: $3,410.00

Earn 6,138 points with this purchase.

View full details

Collapsible content

Product Overview

Myers 150M-2-3 Centri-Thrift Centrifugal Pump

Features:

Suction/Discharge:  2" NPT, 1-1/2" NPT

High Head Capability:  Up to 140 Feet

Flow Rate:  Up to 160 GPM

Maximum Discharge Pressure:  60 PSI

Impeller:  Brass, 4-5/8" Diameter

Max Lift:  25'

Motor:  2 HP Three Phase (230/460V), Standard NEMA C Face, 60Hz/3600RPM

Myers Centri-Thrift continuous service pumps are rugged and reliable.  Over the years, these pumps have earned a reputation for dependable and efficient performance in demanding continuous service applications.

The Centri-Thrift line is available in 1-1/4", 1-1/2" and 2" discharge sizes.  Horsepower requirements range from 2 HP to 7-1/2 HP.  Capacities range to 240 gpm and heads to 140 feet.  The pumps are only available as standard fitted and can be either close-coupled or belt driven.

For added versat

Parts breakdown

Diagram

Diagram parts

Parts list

  • Motor, Three Phase, 220/440V
    • Ref No: 1
    • Part No: 20051A000
    • Qty Req: 1
    Our price: $700.20 List price: $778.00
  • Pump Shaft Assembly
    • Ref No: 2
    • Part No: 11714B001
    • Qty Req: 1
    Our price: $252.00 List price: $280.00
  • Bracket
    • Ref No: 3
    • Part No: 11715D000
    • Qty Req: 1
    Our price: $135.00 List price: $150.00
  • Set Screw
    • Ref No: 3
    • Part No: 05013A015
    • Qty Req: 2
    Our price: $3.60 List price: $4.00
  • Cap Screw
    • Ref No: 4
    • Part No: 19101A016
    • Qty Req: 4
    Our price: $5.10 List price: $6.00
  • Washer
    • Ref No: 6
    • Part No: 05454A007
    • Qty Req: 12
    Our price: $2.70 List price: $3.00
  • Impeller
    • Ref No: 8
    • Part No: 12935B003
    • Qty Req: 1
    Our price: $436.50 List price: $485.00
  • Key for Impeller
    • Ref No: 8
    • Part No: 05818A025
    • Qty Req: 1
    Our price: $9.00 List price: $10.00
  • Washer
    • Ref No: 9
    • Part No: 12933A000
    • Qty Req: 1
    Our price: $24.30 List price: $27.00
  • Washer
    • Ref No: 9
    • Part No: 05454A014
    • Qty Req: 1
    Our price: $2.70 List price: $3.00
  • Cap Screw
    • Ref No: 10
    • Part No: 06106A008
    • Qty Req: 1
    Our price: $5.40 List price: $6.00
  • Volute Case
    • Ref No: 12
    • Part No: 12937D001
    • Qty Req: 1
    Our price: $382.50 List price: $425.00
  • Ring, Wear, Brass
    • Ref No: 12
    • Part No: 12934A000
    • Qty Req: 1
    Our price: $55.80 List price: $62.00
  • Plug, Pipe, 1/4" NPT
    • Ref No: 13
    • Part No: 05022A009
    • Qty Req: 1
    Our price: $16.00 List price: $20.00
  • Deflector - Rubber for 5/8" Shaft
    • Ref No: 14
    • Part No: 05059A318
    • Qty Req: 1
    Our price: $3.85 List price: $4.00
