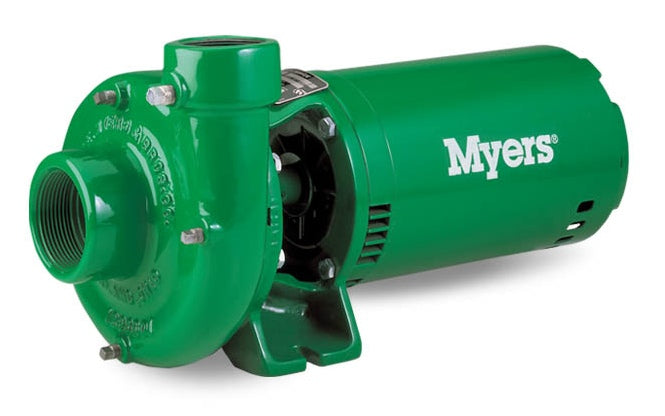

Myers 125M-3-1 Centri-Thrift Centrifugal Pump

Features:

Suction/Discharge:  1-1/2" NPT, 1-1/4" NPT

High Head Capability:  Up to 140 Feet

Flow Rate:  Up to 90 GPM

Maximum Discharge Pressure:  60 PSI

Impeller:  Brass, 5-13/16" Diameter

Max Lift:  25'

Motor:  3 HP Single Phase (115/230V), Standard NEMA C Face, 60Hz/3600RPM

Myers Centri-Thrift continuous service pumps are rugged and reliable.  Over the years, these pumps have earned a reputation for dependable and efficient performance in demanding continuous service applications.

The Centri-Thrift line is available in 1-1/4", 1-1/2" and 2" discharge sizes.  Horsepower requirements range from 2 HP to 7-1/2 HP.  Capacities range to 240 gpm and heads to 140 feet.  The pumps are only available as standard fitted and can be either close-coupled or belt driven.

For added

Download Product Manual
