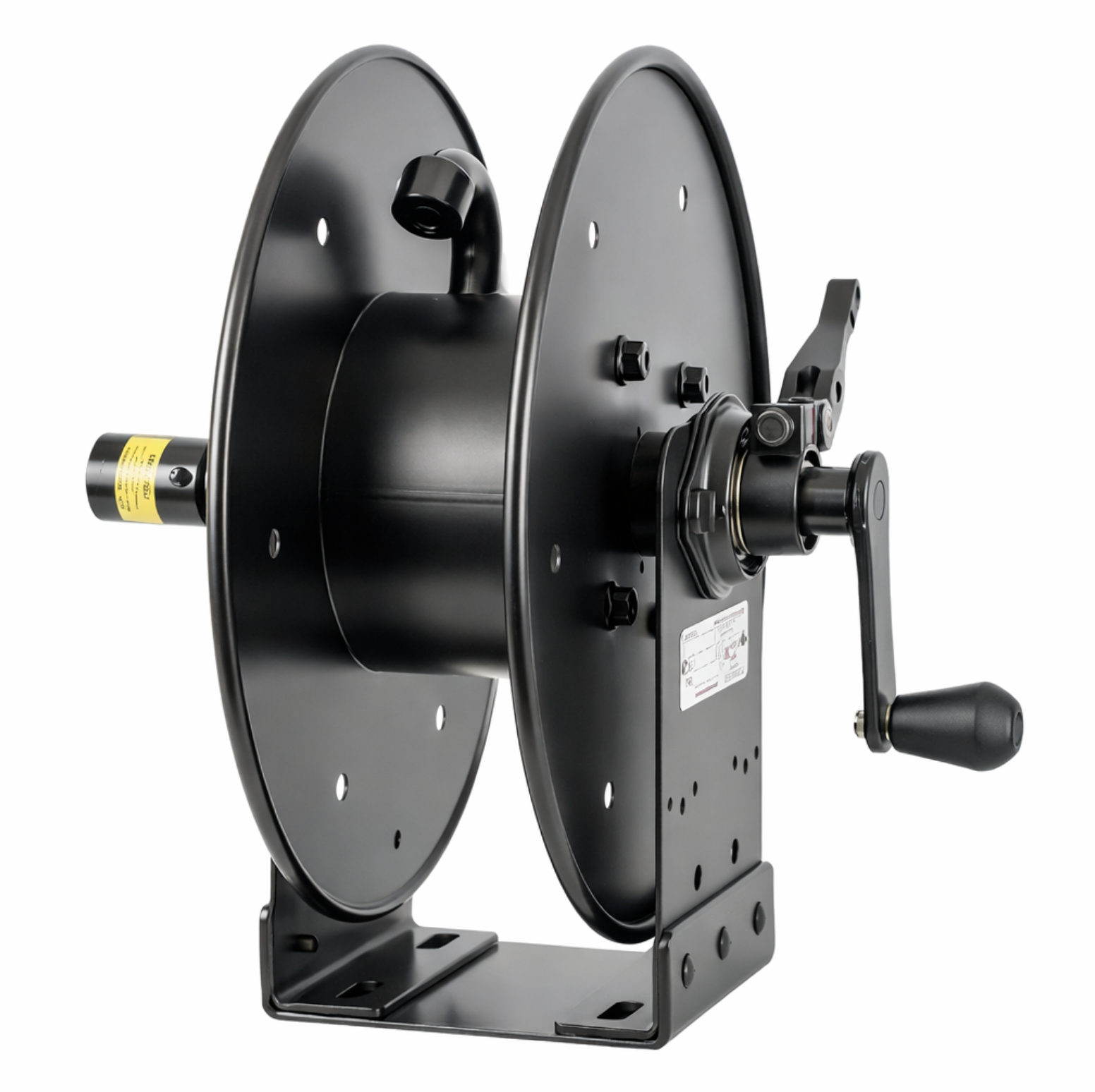

MS-1014-14-16 Hannay Compact Manual Reel

MS-100 Series: Base mounting holes are inside frame for smaller footprint and shoulder knob handle is standard for space saving

6" between the discs. Handles 1/4" to 3/8" ID Hose

MS1014-14-16 will hold up to 100' of 1/4" ID spray hose or 75' of 3/8" ID hose

• Lightweight, compact design
• Direct drank rewind permanently attached
• Optional pin lock available
• Standard inlet is 90° ball bearing swivel joint with ½" FNPT threads
• Standard outlet is 3/8" FNPT thread
• Operating pressure up to 3000 psi
• Operating temperatures from+20° to +400°F (-7° C to +204°C)
