** Due to the risk of shipping damage, this reel ships via LTL and does not qualify for free shipping. **

Made in the USA with high-quality components, this 22” electric hose reel with 1” manifold is an excellent choice for high-flow spray equipment. The aluminum frame is lightweight and corrosion-resistant, while the manifold is constructed of stainless steel. The swivel is nickel-plated aluminum (Super Swivels 5044). Components are rated to withstand pressures up to 4,000 PSI. This reel is easily adaptable to virtually any sprayer and is a must-have for applications in landscaping, pest control, agriculture, and pressure washing.

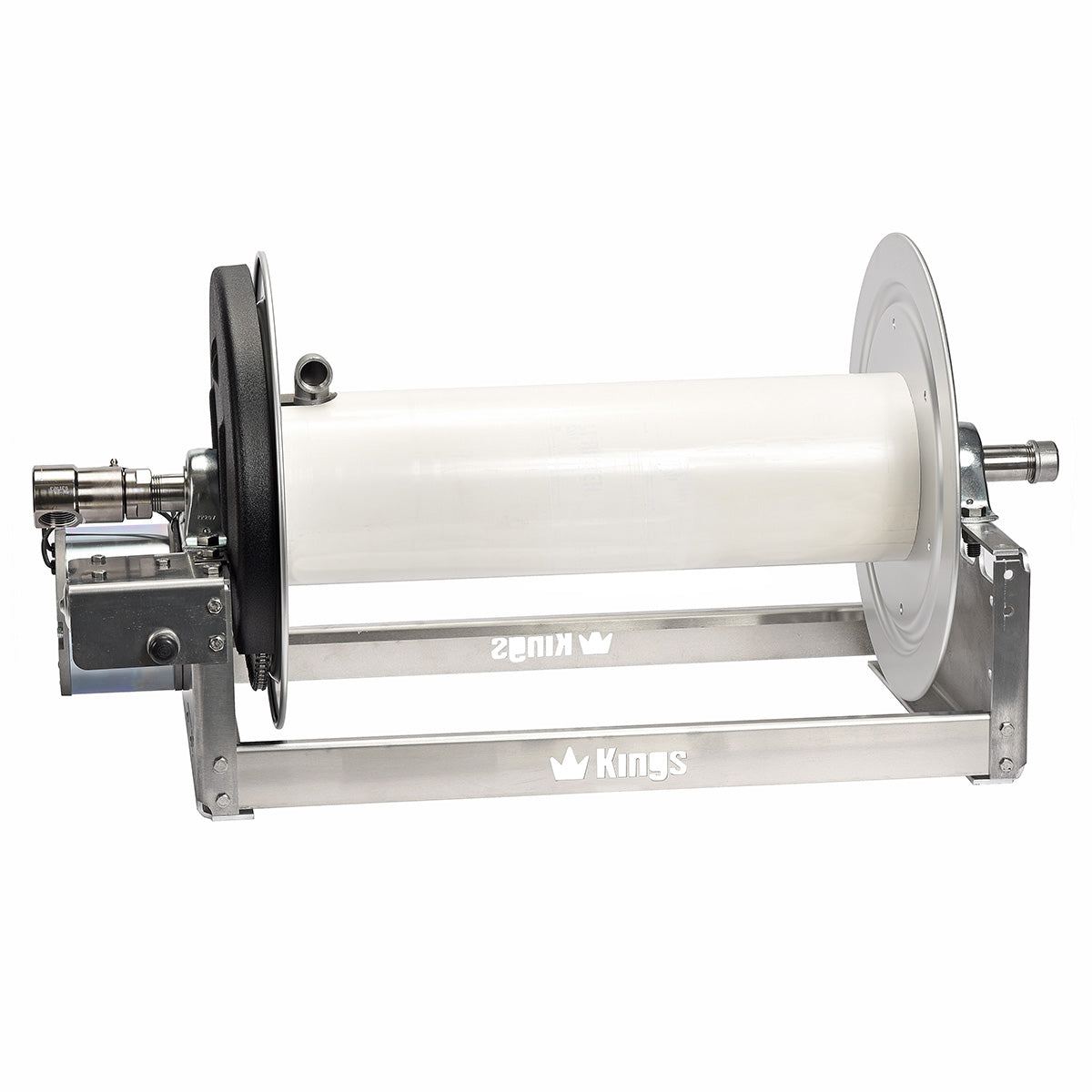

KR3A22E Kings 22” Aluminum Electric Hose Reel with 1” Stainless Steel Manifold

Model: KR3A22E

Manufactured by Kings Sprayers, this reel is produced with high-quality components. Kings reels with 1” manifolds feature stainless steel manifolds and nickel-plated aluminum inlet swivels. With a maximum pressure rating of 4,000 PSI, it can be used in nearly any application. It is most commonly used on spray equipment in landscaping, pest control, agriculture, pressure washing, and soft washing industries.

This model measures 22” between the discs and holds up to 250 feet of 5/8” ID hose or 175 feet of 3/4” ID hose. Kings 1” manifold hose reels are available in 12”, 18”, 22”, and 28” sizes, with manual or electric rewind options.

Download Product Manual

• Rewind: Electric (12V power source required)
• Construction: Aluminum
• Drum: PVC
• Distance between discs: 22”
• Standard inlet: 90° ball bearing, nickel-plated aluminum swivel joint with 1” female NPT threads
• Standard outlet: 3/4” female NPT threads
• Pressure rating: Up to 4,000 PSI
• Hose size: 5/8” to 3/4” ID
• Reel capacity: 175 to 250 feet, depending on hose ID
• 3/4” ID hose capacity: 175 feet
• 5/8” ID hose capacity: 250 feet
• Approximate weight: 58 lbs
