Manufactured with top of the line components and a lightweight corrosion-resistant aluminum frame - this Kings 100 Gallon SpaceMaker Skid Sprayer is 2nd to none! Can be mounted in a truck, UTV, on a trailer or even in a boat.  Spray up to 9.6 gpm or up to 580 psi depending on your application and use the extra hose length to spray hard to reach areas.

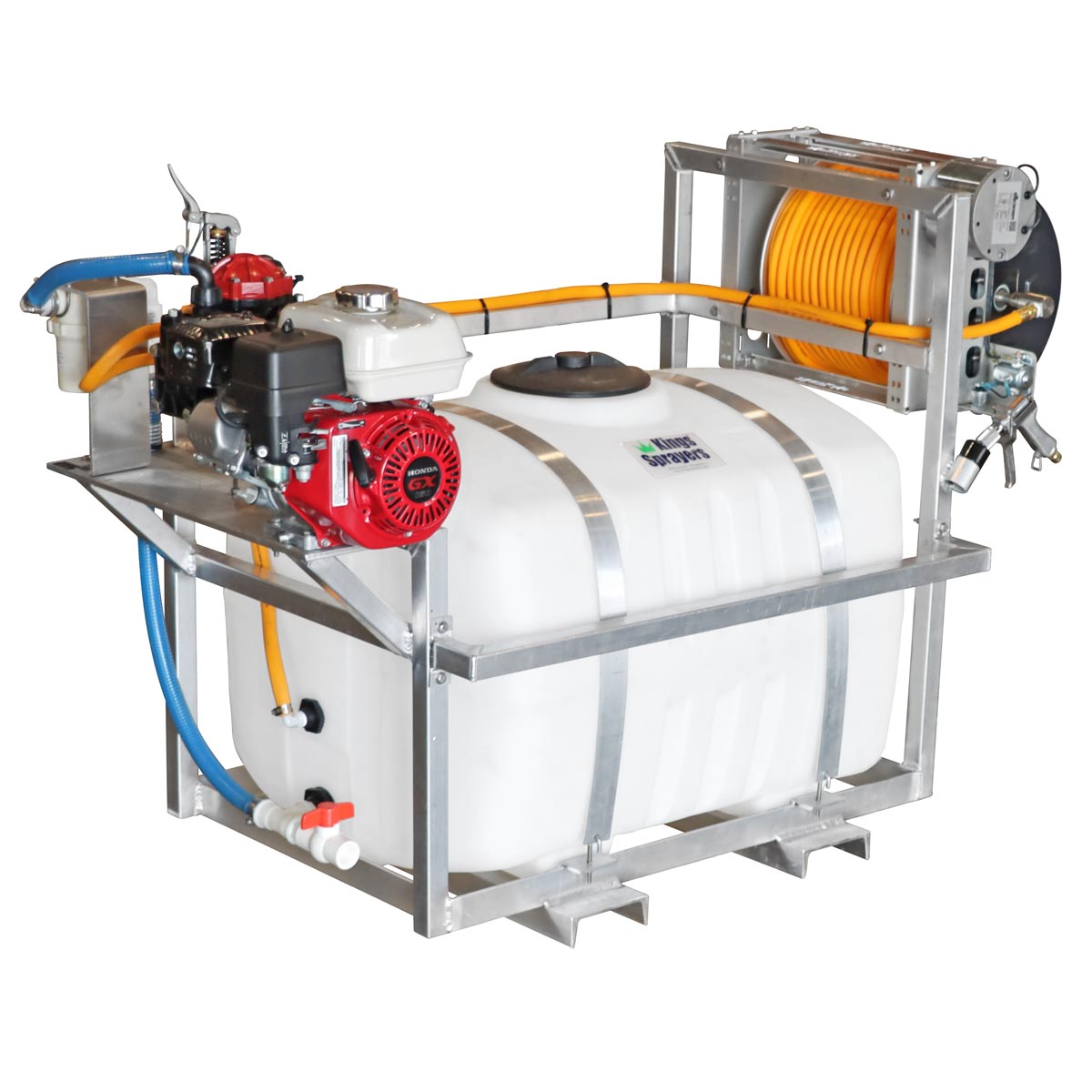

Kings Sprayers 100 Gallon SpaceMaker Skid Sprayer with 10 gpm Diaphragm Pump and Electric Hose Reel

Model: KS100P7038ESM

Great for tree-spraying and can be used in truck beds, utility vehicles, boats and trailers.

Download Product Manual

Features:


• 5.5 HP GX160 Series Honda engine
• AR30GR34GCI (D30GRGI) Diaphragm Pump (9.6 gpm, 580 psi) or Udor KAPPA-43/GR (10.5 gpm, 560 psi)
• 12" Electric Hose Reel with 300' of 3/8" ID Spray Hose
• Made in USA
• 6061 aircraft grade aluminum frame is lightweight, chemical resistant and will never rust or need painting
• Actual item weight is 225 lbs

Additional Options:

• Standard sprayer is equipped with 50' of 3/8" ID hose
• Manual or electric hose reel with 300' of high pressure spray hose
• Add on 12' or 18' spray booms
• Boomless nozzle
• All sprayers are customizable to your liking

Dimensions:

Base Width: 42" (add 1-2 inches for the “T” and drain)

Top width: 71" ( hose reel disc to engine muffler- sized to clear a bed rail)

Depth: 33-1/2"

Height: 44"

5/5/1 Warranty:
5 year frame / 5 year tank / 1 year parts and labor (limited to manufacturer defects)
