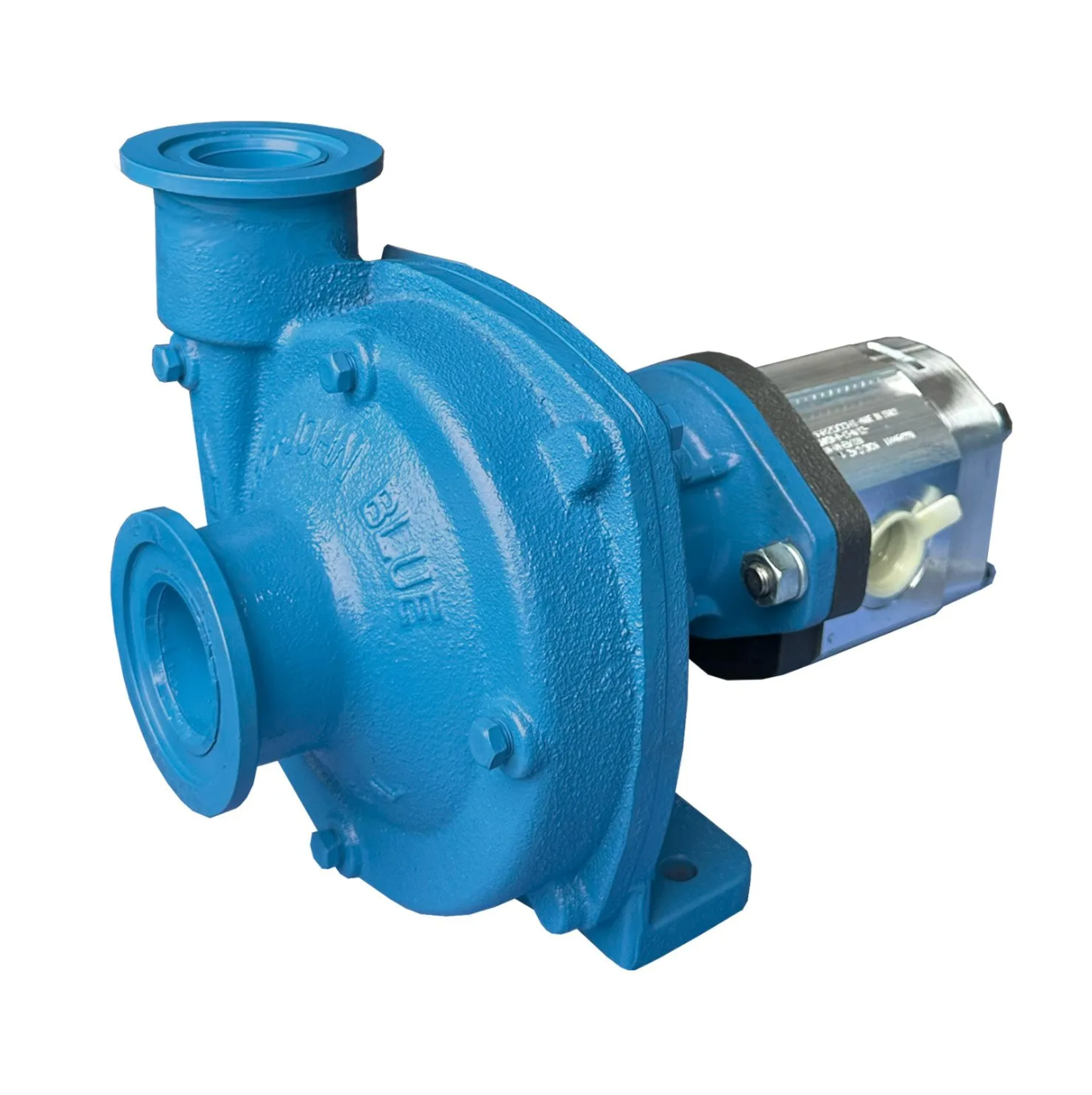

John Blue CS-150-HA12 Centrifugal Pump with Hydraulic Motor

1-½" FPT Inlet, 1-¼" FPT Outlet, 12 GPM Hydraulic Motor, 158 GPM Max Flow, 115 PSI Max Pressure

John Blue’s Centrifugal Spray Pumps with a double wet seal are engineered for superior hydraulic drive performance. The new hydraulic motor delivers enhanced pump efficiency with increased speed and power while protecting motor components through regulated hydraulic flow.

Download Product Manual

• Max flow: 158 GPM @ 55 PSI
• Max pressure: 115 PSI @ 55PSI
• 158 GPM @ 55 PSI
• Inlet: 1-½" FPT & 220 flanged
• Outlet: 1-¼" FPT & 200 flanged
• 12 GPM max hydraulic flow required
• 3000 PSI max hydraulic pressure required
• Double wet seal technology
• Vac-U Seal impeller
• Equipped with factory installed motor protection
