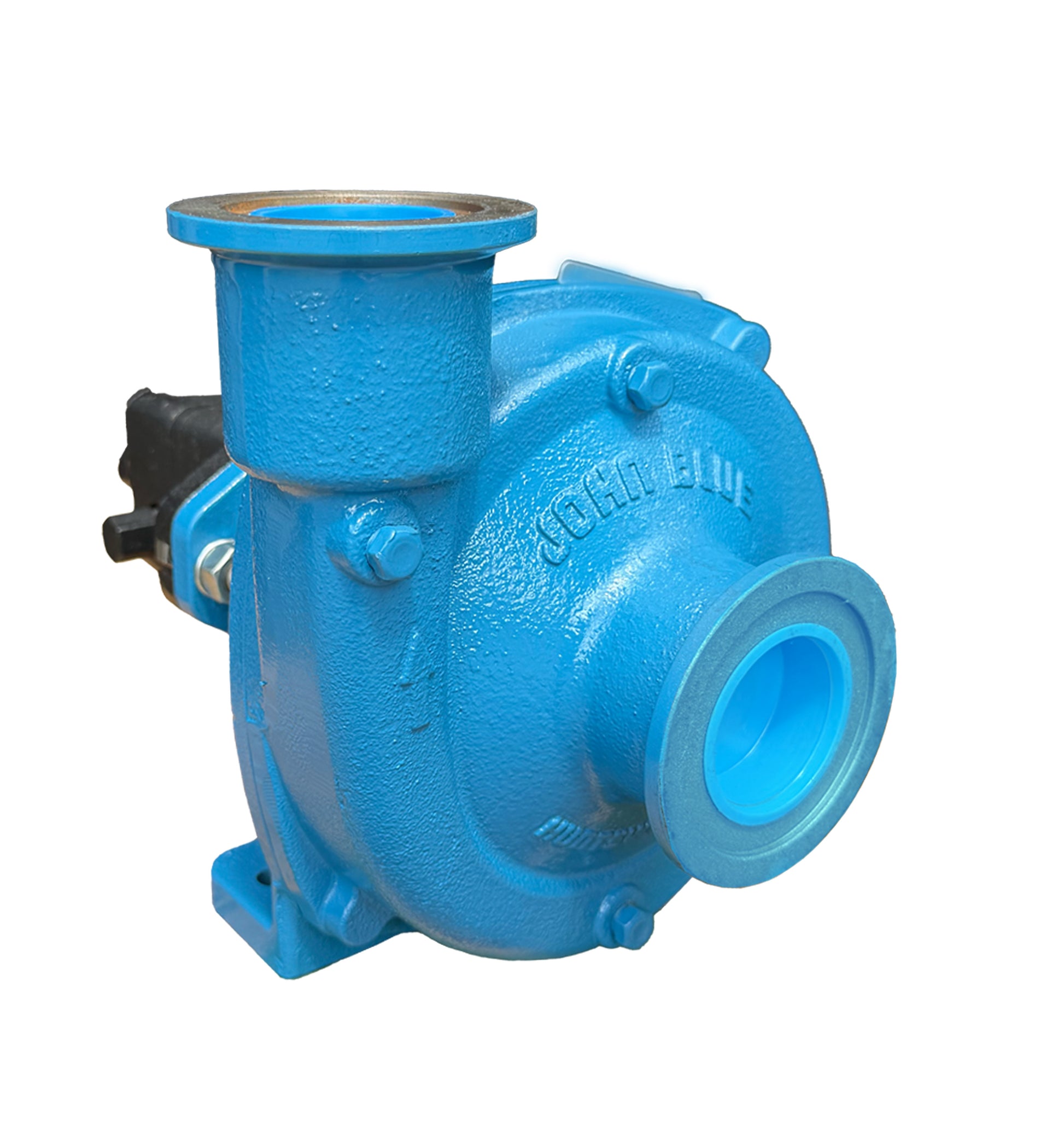

John Blue CS-150-HA10 Centrifugal Pump with Hydraulic Motor.

Equipped with Factory Installed Motor Protection.

1-1/2" FPT and 220 Flanged Inlet, 1-1/4" FPT and 200 Flanged Outlet,  150 GPM Max Flow, 120 PSI Max Pressure.

Hydraulic Driven John Blue Centrifugal Spray Pumps deliver the high flow, dependable pressure, and durability growers demand. Featuring a new hydraulic motor along with John Blue’s proven Double Wet Seal technology, these pumps are built to maximize performance while extending service life in demanding spraying applications.

The Centrifugal Spray Pump hydraulic motor has been totally reimagined—increased pump output performance, service life, and motor protection.

Increased pump performance due to higher speed and power. The new larger displacement and higher-speed hydraulic motor allows the pumps to provide maximum performance.

Anti-cavitation protection. The hydraulic motor utilizes an anti-cavitation valve that prevents damage from cavitation when the inlet pressure decreases as the pump is stopped.

High-pressure motor shaft seal. Includes a factory-installed high-pressure shaft seal to extend its service life.

Prevents plumbing confusion. No additional check valves are required. A check valve is factory-installed in the outlet of the motor to prevent unintended reverse hydraulic connection.

• Max flow: 150 GPM
• Max pressure: 120 PSI
• Inlet: 1-½" FPT and 220 flanged inlet
• Outlet: 1-¼" FPT and 200 flanged outlet
• 10 GPM max hydraulic flow required (HA10)
• 3000 PSI max hydraulic pressure required
• Equipped with factory installed motor protection
