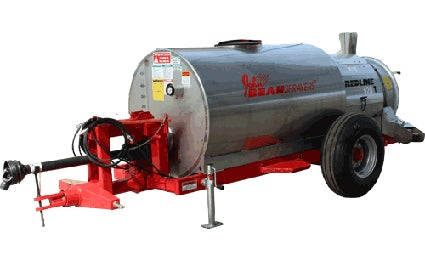

John Bean Redline Model 657T Air Sprayer w/ Piston Pump (36" Fan & Tracking Hitch)

Item Code:
5284584
Weight:
1500.0 lb
Manufacturer:
FMC/John Bean
Overview:

John Bean Redline Model 657T Air Sprayer w/ Piston Pump (36" Fan & Tracking Hitch)

600 Gallon Capacity, Tracking Hitch

35 GPM, 700 PSI

Dimensions:  182" L x 69" W x 76" H

Catalog Number 5284584

Features:

  • 600 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
  • 36" sixteen blade variable pitch with straightening vanes.  Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
  • PTO Power - Constant velocity
  • Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
  • John Bean 130VS Piston Pump 35 GPM @ 540 RPM to 700 PSI
  • 20 double rollover nozzles with diaphragm check valves
  • Suction Strainer is externally mounted, star strainer in cast iron housing with built in check valve
