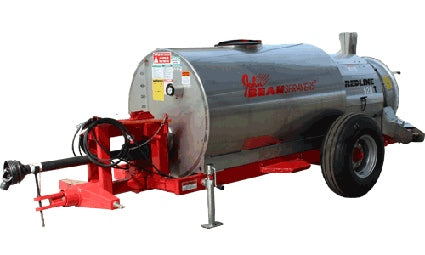

John Bean Redline Model 648 Air Sprayer w/ Centrifugal Pump

John Bean Redline Model 648 Air Sprayer w/ Centrifugal Pump

Item Code:
5284307
Weight:
1500.0 lb
Manufacturer:
FMC/John Bean
Overview:

John Bean Redline Model 648 Air Sprayer w/ Centrifugal Pump

600 Gallon Capacity, Conventional Hitch

70 GPM, 160 PSI

Dimensions:  182" L x 64" W x 70" H

Catalog Number 5284307

Features:

  • 600 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
  • 32" (.82M) twelve blade variable pitch fan with inside air handling at discharge.  Galvanized fan shroud. Stainless steel manifolds. Two speed with neutral gearbox, variable 30 - 60 tractor horsepower.
  • PTO Power - Constant velocity
  • Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
  • Centrifugal two stage pump rated at 70 GPM @ 160 PSI
  • 14 double rollover nozzles with diaphragm check valves
  • Suction Strainer externally mounted for easy access with cylindrical filter and built in check valve
