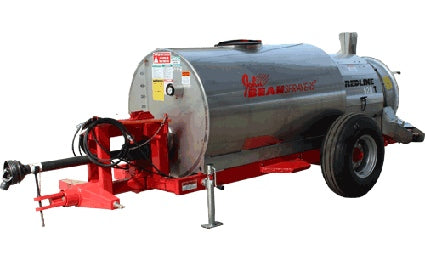

John Bean Redline Model 647T Air Sprayer w/ Centrifugal Pump (36" Fan & Tracking Hitch)
600 Gallon Capacity, Tracking Hitch
70 GPM, 160 PSI
Dimensions: 182" L x 69" W x 76" H
Catalog Number 5284577
- 600 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
- 36" sixteen blade variable pitch with straightening vanes. Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
- PTO Power - Constant velocity
- Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
- Centrifugal two stage pump rated at 70 GPM @ 160 PSI
- 20 double rollover nozzles with diaphragm check valves
- Suction Strainer externally mounted for easy access with cylindrical filter and built in check valve
