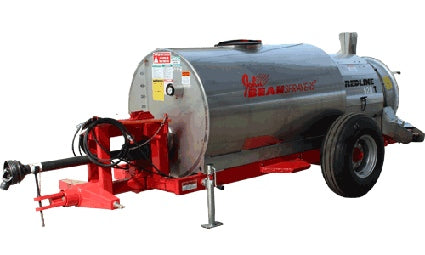

John Bean Redline Model 646 Air Sprayer w/ Centrifugal Pump (36" Super Fan)

John Bean Redline Model 646 Air Sprayer w/ Centrifugal Pump (36" Super Fan)

Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284309
Skip to product information
1 of 1

John Bean Redline Model 646 Air Sprayer w/ Centrifugal Pump (36" Super Fan)

John Bean Redline Model 646 Air Sprayer w/ Centrifugal Pump (36" Super Fan)

Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284309

View full details

Collapsible content

Product Overview

John Bean Redline Model 646 Air Sprayer w/ Centrifugal Pump (36" Super Fan)

600 Gallon Capacity, Conventional Hitch

70 GPM, 160 PSI

Dimensions:  182" L x 69" W x 76" H

Catalog Number 5284309

Features:
  • 600 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
  • 36" super eight blade variable pitch fan with straightening vanes. Stainless steel fan housing. Stainless steel manifolds. Requires 70-100 horsepower tractor.
  • PTO Power - Constant velocity
  • Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
  • Centrifugal two stage pump rated at 70 GPM @ 160 PSI
  • 20 double rollover nozzles with diaphragm check valves
  • Suction Strainer is externally mounted, star strainer in cast iron housing with built in check valve
  • Axle is 4-way adjustable height
