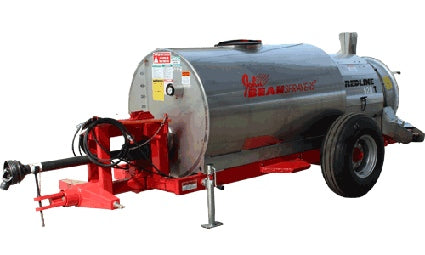

John Bean Redline Model 637T Air Sprayer w/ Diaphragm Pump (36" Fan & Tracking Hitch)
600 Gallon Capacity, Tracking Hitch
38 GPM, 650 PSI
Dimensions: 182" L x 69" W x 76" H
Catalog Number 5284583
- 600 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
- 36" sixteen blade variable pitch with straightening vanes. Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
- PTO Power - Constant velocity
- Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
- PAS144 Diaphragm Pump 38 GPM @ 540 RPM to 650 PSI
- 20 double rollover nozzles with diaphragm check valves
- Externally mounted star strainer in cast iron housing with built in check valve
- Axle is 4-way adj
