Product Overview

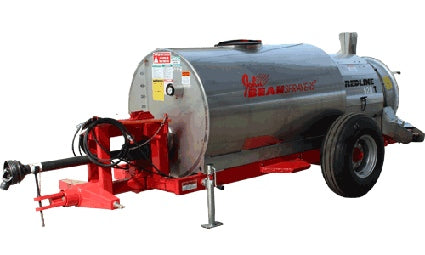

John Bean Redline Model 547T Air Sprayer w/ Centrifugal Pump (36" Fan & Tracking Hitch)

500 Gallon Capacity, Tracking Hitch

70 GPM, 160 PSI

Dimensions:  182" L x 69" W x 76" H

Catalog Number 5284565

Features:
  • 500 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
  • 36" sixteen blade variable pitch with straightening vanes.  Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
  • PTO Power - Constant velocity
  • Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
  • Centrifugal two stage pump rated at 70 GPM @ 160 PSI
  • 20 double rollover nozzles with diaphragm check valves
  • Suction Strainer externally mounted for easy access with cylindrical filter and built in check
