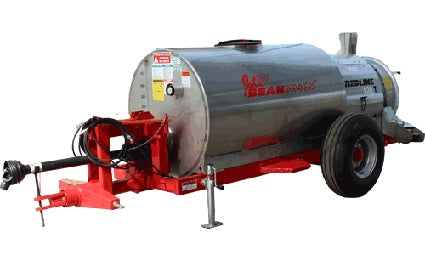

John Bean Redline Model 537 Air Sprayer w/ Diaphragm Pump (36

John Bean Redline Model 537 Air Sprayer w/ Diaphragm Pump (36" Fan)

Item Code:
5284287
Weight:
1500.0 lb
Manufacturer:
FMC/John Bean
Overview:

John Bean Redline Model 537 Air Sprayer w/ Diaphragm Pump (36" Fan)

500 Gallon Capacity, Conventional Hitch

38 GPM, 650 PSI

Dimensions:  182" L x 69" W x 72" H

Catalog Number 5284287

Features:

  • 500 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
  • 36" sixteen blade variable pitch with straightening vanes.  Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
  • PTO Power - Constant velocity
  • Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
  • PAS144 Diaphragm Pump 38 GPM @ 540 RPM to 650 PSI
  • 20 double rollover nozzles with diaphragm check valves
  • Suction Strainer mounted under hood on right side, cylindrical filter and built in check valve.
  • Axle is 4-way adjus
