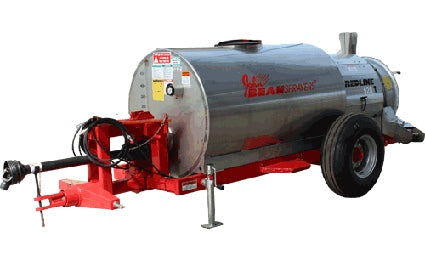

John Bean Redline Model 528T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

John Bean Redline Model 528T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

Item Code:
5284568
Weight:
1500.0 lb
Manufacturer:
FMC/John Bean
Overview:

John Bean Redline Model 528T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

500 Gallon Capacity, Tracking Hitch

24 GPM, 650 PSI

Dimensions:  182" L x 64" W x 70" H

Catalog Number 5284568

Features:

  • 500 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
  • 32" (.82M) twelve blade variable pitch fan with inside air handling at discharge.  Galvanized fan shroud. Stainless steel manifolds. Two speed with neutral gearbox, variable 30 - 60 tractor horsepower.
  • PTO Power - Constant velocity
  • Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
  • PAS908 Diaphragm Pump 24 GPM @ 540 RPM to 650 PSI
  • 14 double rollover nozzles with diaphragm check valves
  • Suction Strainer mounted under hood on right side, cylindrical filter and built in check valve.
