John Bean DM20E300SERH 300 Gallon Hydraulic Sprayer (Stainless Steel Tank)

John Bean DM20E300SERH 300 Gallon Hydraulic Sprayer (Stainless Steel Tank)

Item Code:
5280202
Weight:
940.0 lb
Manufacturer:
FMC/John Bean
Overview:

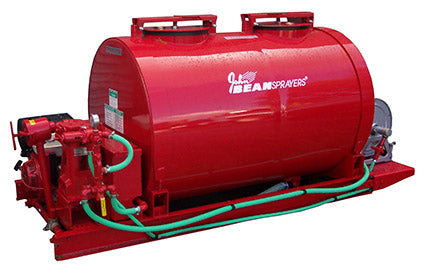

John Bean DM20E300SERH 300 Gallon Hydraulic Sprayer (Stainless Steel Tank)

**Optional accessories shown in picture**

300 Gallon Stainless Steel Tank

20 GPM, 500 PSI

Dimensions:  84" L x 43" W x 46" H

Features:

  • FMC/John Bean R20 piston pump capable of 20 GPM @ 500 PSI
  • Honda 13 HP electric start gas engine
  • Relief valve (50-800 psi) is adjustable with replaceable packing, valves and seat
  • Star type suction strainer inline between suction point and pump inlet, 16 mesh screen
  • Air chamber (pulsation dampener) installed in discharge line to reduce pulsation
  • 15" filler opening
  • Vented safety lid
  • Mechanical paddle agitation with lubricated bearings and packing ring seals
  • 0-1000 psi liquid filled pressure gauge
  • Tank level sight glass
  • Battery is not included from factory for the electric start engine
  • Standard color is John Bean red

**Additiona
