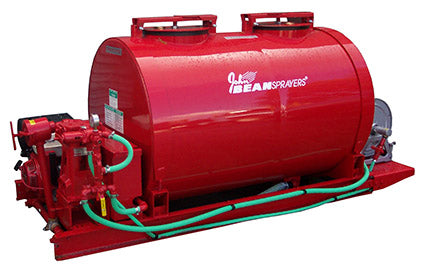

John Bean DM05E100FERH 100 Gallon Hydraulic Sprayer (Fiberglass Tank)

John Bean DM05E100FERH 100 Gallon Hydraulic Sprayer (Fiberglass Tank)

Item Code:
5284618
Weight:
425.0 lb
Manufacturer:
FMC/John Bean
Overview:

John Bean DM05E100FERH 100 Gallon Hydraulic Sprayer (Fiberglass Tank)

**Optional accessories shown in picture**

100 Gallon Fiberglass Tank

5 GPM, 400 PSI

Dimensions:  47" L x 43" W x 37" H

Features:

  • FMC/John Bean R5 piston pump capable of 5 GPM @ 400 PSI
  • Honda 5.5 HP electric start gas engine
  • Relief valve (50-800 psi) is adjustable with replaceable packing, valves and seat
  • Star type suction strainer inline between suction point and pump inlet, 16 mesh screen
  • Air chamber (pulsation dampener) installed in discharge line to reduce pulsation
  • 15" filler opening
  • Vented non-leak screw off lid
  • Mechanical paddle agitation with lubricated bearings and packing ring seals
  • 0-1000 psi liquid filled pressure gauge
  • Tank level sight glass
  • Battery is not included from factory for the electric start engine
  • Standard color is John Bean red

**Additiona
