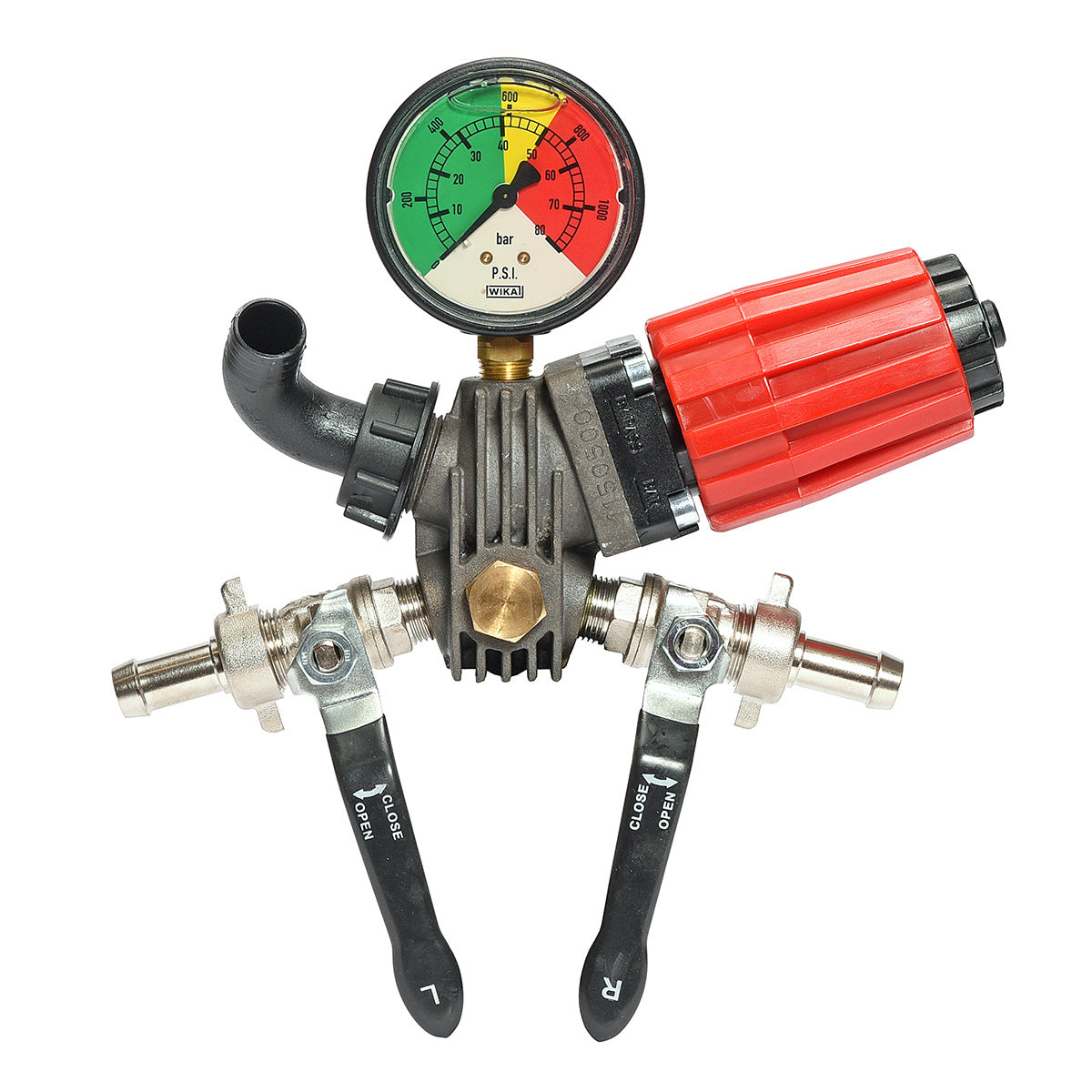

Hypro RM40 Control Unit/Regulator

Hypro RM40 Control Unit/Regulator

Brand:
Hypro
Weight:
3.69 lb
Item #
9910RM40
4 reviews

$249.04
$249.04 List Price: $429.38

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 747 points with this purchase.

See Details

View full details

Product Overview

Do you own or are you planning to buy a Hypro 9910-D503 diaphragm pump? Use the RM40 to check its current pressure with an easy-to-read pressure gauge. This control unit/regulator can handle quite a bit of pressure but includes an adjustable pressure relief valve just in case. Additional features include a 1" bypass, a complete bypass knob and two hose barb outlets.

Manufacturer description

The 9910-RM40 control unit is designed for convenient control of pressures up to 580 psi and flows up to 24 gpm. It consists of an adjustable pressure relief valve, a manual pressure release lever, and two individual ball valve-controlled 1/2" hose barb outlets. It can be direct mounted onto the 9910-D503 discharge manifold.

Resources

Download Product Manual

Features

  • Mounts to pump models: 9910-D503
  • Max flow: 24 gpm
  • Max pressure: 580 psi
  • Port sizes: 1" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-1000 psi, color coded, glycerin filled
  • Weight: 4 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Hose Barb 3/4"
    • Ref No: 1
    • Part No: 9910550460
    • Qty Req: 1
    Our price: $5.81 List price: $7.46
  • Barb Nut
    • Ref No: 3
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.55 List price: $5.84
  • O-Ring
    • Ref No: 4
    • Part No: 9910390180
    • Qty Req: 4
    Our price: $1.64 List price: $1.65
  • 9910-550545 Pressure Gauge (Color Coded, Oil-Filled)
    • Ref No: 5
    • Part No: 9910550545
    • Qty Req: 1
    Our price: $64.15 List price: $78.14
  • Retainer Clip
    • Ref No: 6
    • Part No: 99101040690
    • Qty Req: 1
    Our price: $26.52 List price: $31.82
  • Valve Seat
    • Ref No: 9
    • Part No: 99101150520
    • Qty Req: 1
    Our price: $42.36 List price: $53.10
  • Bolt
    • Ref No: 10
    • Part No: 9910680560
    • Qty Req: 1
    Our price: $6.80 List price: $8.16
  • Valve Cap
    • Ref No: 11
    • Part No: 99101040640
    • Qty Req: 1
    Our price: $46.89 List price: $54.86
  • Diaphragm
    • Ref No: 12
    • Part No: 99101040630
    • Qty Req: 1
    Our price: $31.71 List price: $35.30
  • O-Ring
    • Ref No: 13
    • Part No: 9910880830
    • Qty Req: 5
    Our price: $2.06 List price: $2.30
  • Piston
    • Ref No: 14
    • Part No: 99101040620
    • Qty Req: 1
    Our price: $38.22 List price: $49.01
  • Spacer
    • Ref No: 15
    • Part No: 99101150560
    • Qty Req: 1
    Our price: $8.77 List price: $11.25
  • Spacer
    • Ref No: 16
    • Part No: 99101150600
    • Qty Req: 2
    Our price: $3.30 List price: $4.23
  • Pin
    • Ref No: 17
    • Part No: 99101150540
    • Qty Req: 1
    Our price: $5.39 List price: $6.91
  • Body
    • Ref No: 18
    • Part No: 99101150510
    • Qty Req: 1
    Our price: $47.10 List price: $60.39
  • Bolt
    • Ref No: 20
    • Part No: 9910780330
    • Qty Req: 4
    Our price: $2.69 List price: $3.21
  • Bypass Ring
    • Ref No: 21
    • Part No: 99101150530
    • Qty Req: 1
    Our price: $13.43 List price: $17.21
  • Spring
    • Ref No: 22
    • Part No: 9910394760
    • Qty Req: 1
    Our price: $13.71 List price: $17.57
  • Adjustment Knob
    • Ref No: 23
    • Part No: 99101150550
    • Qty Req: 1
    Our price: $18.10 List price: $22.06
  • Spring Retainer
    • Ref No: 24
    • Part No: 99101150570
    • Qty Req: 1
    Our price: $11.62 List price: $14.91
  • Replacement Ball Valve with Hose Barb for GS40GI Pressure Regulators
    • Ref No: 26
    • Part No: 9910KIT2497
    • Qty Req: 2
    Our price: $74.71 List price: $79.08
  • Plug
    • Ref No: 27
    • Part No: 9910130171
    • Qty Req: 1
    Our price: $4.99 List price: $6.27
  • Body
    • Ref No: 28
    • Part No: 99101150500
    • Qty Req: 1
    Our price: $118.75 List price: $152.28
  • Mounting Bracket
    • Ref No: 29
    • Part No: 99101150590
    • Qty Req: 1
    Our price: $21.81 List price: $27.96
  • Washer
    • Ref No: 30
    • Part No: 9910390311
    • Qty Req: 2
    Our price: $2.78 List price: $3.34
  • Bolt
    • Ref No: 31
    • Part No: 9910180431
    • Qty Req: 31
    Our price: $1.79 List price: $2.15
  • Inlet Adapter
    • Ref No: 32
    • Part No: 99101040770
    • Qty Req: 1
    Our price: $51.75 List price: $60.68
  • 1/2" Hose Barb & Nut
    • Ref No: 33
    • Part No: 9910110130
    • Qty Req: 2
    Our price: $16.40 List price: $18.09
  • Barb
    • Ref No: 35
    • Part No: 99101150580
    • Qty Req: 2
    Our price: $16.48 List price: $21.13
  • Outlet adapter (3/4" NPT)
    • Ref No: 36
    • Part No: 99101040760
    • Qty Req: 1
    Our price: $56.00 List price: $60.70
  • Nut
    • Ref No: 37
    • Part No: 99101040790
    • Qty Req: 2
    Our price: $17.51 List price: $22.46
  • Bolt
    • Ref No: 38
    • Part No: 99101150650
    • Qty Req: 1
    Our price: $2.13 List price: $2.73
  • Retaining Ring
    • Ref No: 39
    • Part No: 9910480550
    • Qty Req: 1
    Our price: $1.83 List price: $2.08
  • Cotter Pin
    • Ref No: 40
    • Part No: 99101040950
    • Qty Req: 2
    Our price: $1.51 List price: $1.76
  • Spacer
    • Ref No: 41
    • Part No: 99101150660
    • Qty Req: 1
    Our price: $3.62 List price: $4.65
