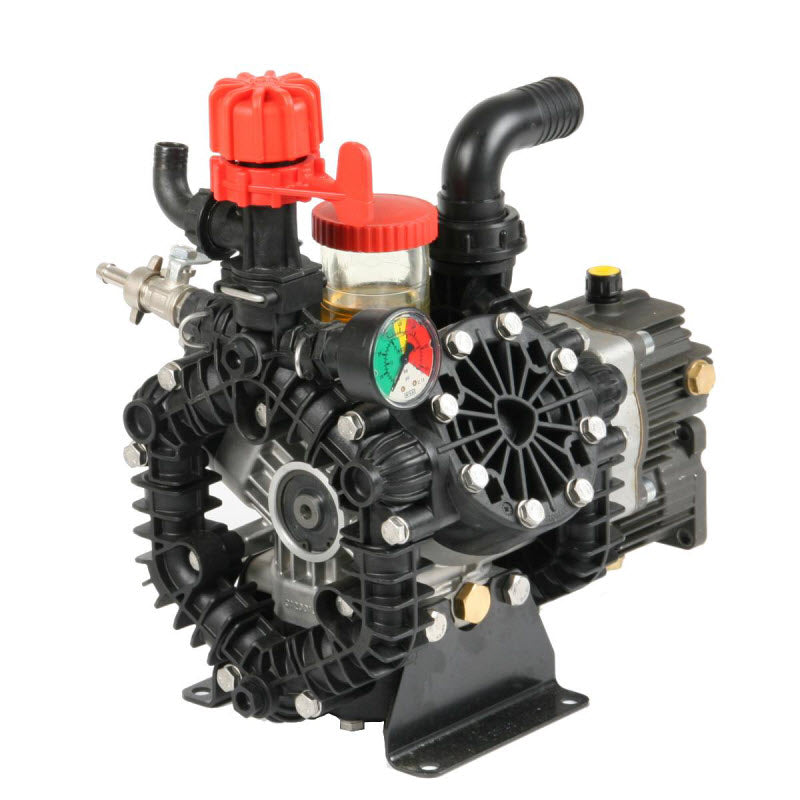

Hypro DP423GRGI Diaphragm Pump with Gearbox and Regulator, 11.4 GPM, 290 PSI

Hypro DP423GRGI Diaphragm Pump with Gearbox and Regulator, 11.4 GPM, 290 PSI

Brand:
Hypro
Weight:
30.0 lb
Item #
9910DP423GRGI
  • Hypro DP423GRGI Diaphragm Pump with Gearbox and Regulator, 11.4 GPM, 290 PSI
1 1

Hypro DP423GRGI Diaphragm Pump with Gearbox and Regulator, 11.4 GPM, 290 PSI

Hypro DP423GRGI Diaphragm Pump with Gearbox and Regulator, 11.4 GPM, 290 PSI

Brand:
Hypro
Weight:
30.0 lb
Item #
9910DP423GRGI

$1,300.84
$1,300.84 List Price: $2,556.41

Earn 3,903 points with this purchase.

See Details

View full details

Product Overview

Hypro/AR Diaphragm Pump
Model #: 9910-DP423GRGI (ARLFP-GR-GCI)

This Hypro/AR diaphragm pump is built with polypropylene heads and manifolds for corrosion resistance and is designed for harsh chemical applications such as phosphorus and nitrogen-based fertilizers with ferrous sulfate. Comes complete with control unit and gearbox for 3/4” engine shafts.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.

** When you order this pump, you will receive the most current version, AR45LFP-GR-GCI.**

Resources

Download Product Manual

Features

  • Max flow: 11.4 gpm
  • Max pressure: 290 psi
  • Includes GS25 (AR43821) pressure regulator and AR31185  gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Viton
  • Housing: Anodized aluminum
  • Head & Manifolds: Polypropylene
  • Max fluid temperature: 140°F
  • Weight: 40 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Suction Manifold
    • Ref No: 1
    • Part No: 99103120410
    • Qty Req: 1
    Our price: $18.41 List price: $23.61
  • Manifold Section
    • Ref No: 3
    • Part No: 99103120050
    • Qty Req: 5
    Our price: $9.45 List price: $12.11
  • Manifold Section
    • Ref No: 4
    • Part No: 99103120060
    • Qty Req: 4
    Our price: $12.12 List price: $15.53
  • Bolt
    • Ref No: 7
    • Part No: 99103120250
    • Qty Req: 12
    Our price: $4.42 List price: $5.67
  • Elbow 1-1/2"
    • Ref No: 12
    • Part No: 99103040160
    • Qty Req: 1
    Our price: $26.75 List price: $33.62
  • Ring nut
    • Ref No: 13
    • Part No: 9910750670
    • Qty Req: 1
    Our price: $14.85 List price: $19.05
  • Piston Ring
    • Ref No: 15
    • Part No: 99103120130
    • Qty Req: 3
    Our price: $6.11 List price: $7.83
  • Sleeve
    • Ref No: 16
    • Part No: 99103120090
    • Qty Req: 3
    Our price: $34.82 List price: $44.65
  • Plate
    • Ref No: 18
    • Part No: 99103120120
    • Qty Req: 3
    Our price: $7.71 List price: $9.89
  • Diaphragm Stud
    • Ref No: 19
    • Part No: 99103120100
    • Qty Req: 3
    Our price: $18.41 List price: $23.61
  • Snap Ring
    • Ref No: 20
    • Part No: 99101460490
    • Qty Req: 2
    Our price: $2.18 List price: $2.80
  • Head
    • Ref No: 22
    • Part No: 99103120020
    • Qty Req: 3
    Our price: $29.40 List price: $37.71
  • Circlip
    • Ref No: 25
    • Part No: 99101880450
    • Qty Req: 6
    Our price: $0.45 List price: $0.59
  • Piston
    • Ref No: 26
    • Part No: 99103120070
    • Qty Req: 3
    Our price: $23.27 List price: $29.83
  • Connecting Rod Pin
    • Ref No: 27
    • Part No: 9910380300
    • Qty Req: 3
    Our price: $27.42 List price: $31.37
  • Connecting Rod
    • Ref No: 28
    • Part No: 99103120180
    • Qty Req: 3
    Our price: $27.39 List price: $35.12
  • Shaft Seal
    • Ref No: 29
    • Part No: 99103120640
    • Qty Req: 1
    Our price: $7.27 List price: $9.33
  • Bearing
    • Ref No: 30
    • Part No: 9910380230
    • Qty Req: 1
    Our price: $55.27 List price: $66.32
  • Retaining Ring
    • Ref No: 31
    • Part No: 99101300120
    • Qty Req: 2
    Our price: $23.00 List price: $26.53
  • Shaft
    • Ref No: 32
    • Part No: 99103120170
    • Qty Req: 1
    Our price: $161.51 List price: $196.70
  • Bearing
    • Ref No: 33
    • Part No: 9910961780
    • Qty Req: 1
    Our price: $82.04 List price: $87.87
  • Shaft Seal
    • Ref No: 34
    • Part No: 99103120160
    • Qty Req: 1
    Our price: $12.60 List price: $16.16
  • Retaining Ring (Int.)
    • Ref No: 35
    • Part No: 9910961790
    • Qty Req: 1
    Our price: $6.38 List price: $7.63
  • Drain plug AR Diaphragm Pump
    • Ref No: 37
    • Part No: 99103120690
    • Qty Req: 2
    Our price: $6.64 List price: $9.97
  • Manifold Section
    • Ref No: 38
    • Part No: 99103120051
    • Qty Req: 1
    Our price: $22.05 List price: $28.28
  • Threaded Adapter
    • Ref No: 40
    • Part No: 99103120420
    • Qty Req: 1
    Our price: $19.38 List price: $23.26
  • Pressure Gauge
    • Ref No: 41
    • Part No: 99101880340
    • Qty Req: 1
    Our price: $69.40 List price: $88.98
  • 3/8" Hose Barb & Nut
    • Ref No: 42
    • Part No: 9910110131
    • Qty Req: 1
    Our price: $12.12 List price: $15.53
  • Outlet ball valve w/o barb
    • Ref No: 43
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $36.35 List price: $51.92
  • Threaded Adapter
    • Ref No: 44
    • Part No: 99103120421
    • Qty Req: 1
    Our price: $6.11 List price: $7.83
  • Hose Barb 3/4"
    • Ref No: 45
    • Part No: 9910550460
    • Qty Req: 1
    Our price: $5.81 List price: $7.46
  • Barb Nut
    • Ref No: 47
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.55 List price: $5.84
  • Knob-Adjust
    • Ref No: 48
    • Part No: 99101880220
    • Qty Req: 1
    Our price: $14.06 List price: $18.03
  • Spring
    • Ref No: 49
    • Part No: 99103120370
    • Qty Req: 1
    Our price: $121.22 List price: $145.46
  • Ring Nut
    • Ref No: 50
    • Part No: 99101880210
    • Qty Req: 1
    Our price: $9.65 List price: $12.37
  • Body
    • Ref No: 52
    • Part No: 99103120280
    • Qty Req: 1
    Our price: $21.59 List price: $27.68
  • Pin
    • Ref No: 55
    • Part No: 99101880240
    • Qty Req: 1
    Our price: $6.59 List price: $8.46
  • Piston
    • Ref No: 56
    • Part No: 99103120290
    • Qty Req: 1
    Our price: $5.43 List price: $6.96
  • Piston
    • Ref No: 58
    • Part No: 99103120300
    • Qty Req: 1
    Our price: $15.03 List price: $19.27
  • Seat
    • Ref No: 59
    • Part No: 99103120310
    • Qty Req: 1
    Our price: $4.46 List price: $5.72
  • Retaining Clip
    • Ref No: 60
    • Part No: 99103120320
    • Qty Req: 1
    Our price: $7.85 List price: $10.07
  • Bolt
    • Ref No: 61
    • Part No: 9910620342
    • Qty Req: 4
    Our price: $3.62 List price: $4.65
  • Base
    • Ref No: 62
    • Part No: 99103120140
    • Qty Req: 2
    Our price: $17.20 List price: $22.06
  • Plug
    • Ref No: 63
    • Part No: 9910880530
    • Qty Req: 1
    Our price: $5.28 List price: $7.07
  • Pump Body
    • Ref No: 64
    • Part No: 99103120010
    • Qty Req: 1
    Our price: $276.96 List price: $355.14
  • Oil Sight Glass
    • Ref No: 65
    • Part No: 99103120240
    • Qty Req: 1
    Our price: $44.94 List price: $57.62
  • Cap
    • Ref No: 67
    • Part No: 99101040320
    • Qty Req: 1
    Our price: $31.99 List price: $41.03
  • Discharge Manifold
    • Ref No: 68
    • Part No: 99103120330
    • Qty Req: 1
    Our price: $17.45 List price: $22.38
  • Retaining Clip
    • Ref No: 69
    • Part No: 9910392580
    • Qty Req: 2
    Our price: $4.72 List price: $6.04
  • Key
    • Ref No: 70
    • Part No: 99102280950
    • Qty Req: 1
    Our price: $2.33 List price: $2.99
  • Bolt
    • Ref No: 71
    • Part No: 99103120270
    • Qty Req: 24
    Our price: $1.26 List price: $1.62
  • Threaded Adapter
    • Ref No: 73
    • Part No: 99103120610
    • Qty Req: 1
    Our price: $9.06 List price: $11.61
  • Ring Nut
    • Ref No: 74
    • Part No: 99103120440
    • Qty Req: 1
    Our price: $5.48 List price: $7.04
  • Elbow
    • Ref No: 76
    • Part No: 99103120460
    • Qty Req: 1
    Our price: $11.14 List price: $14.29
