Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.

** When you order this pump, you will receive the most current version, AR115BP-SP. **

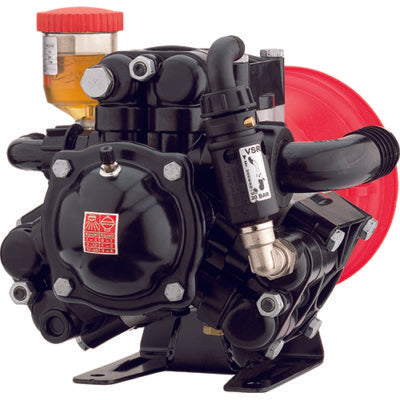

Please note: If you are replacing a 9910-D115GR34, you cannot purchase this pump and attach an existing gearbox. To replace the pump, please see model 9910-D115GR34 (AR115BP-GR3/4) for pump with gearbox included.

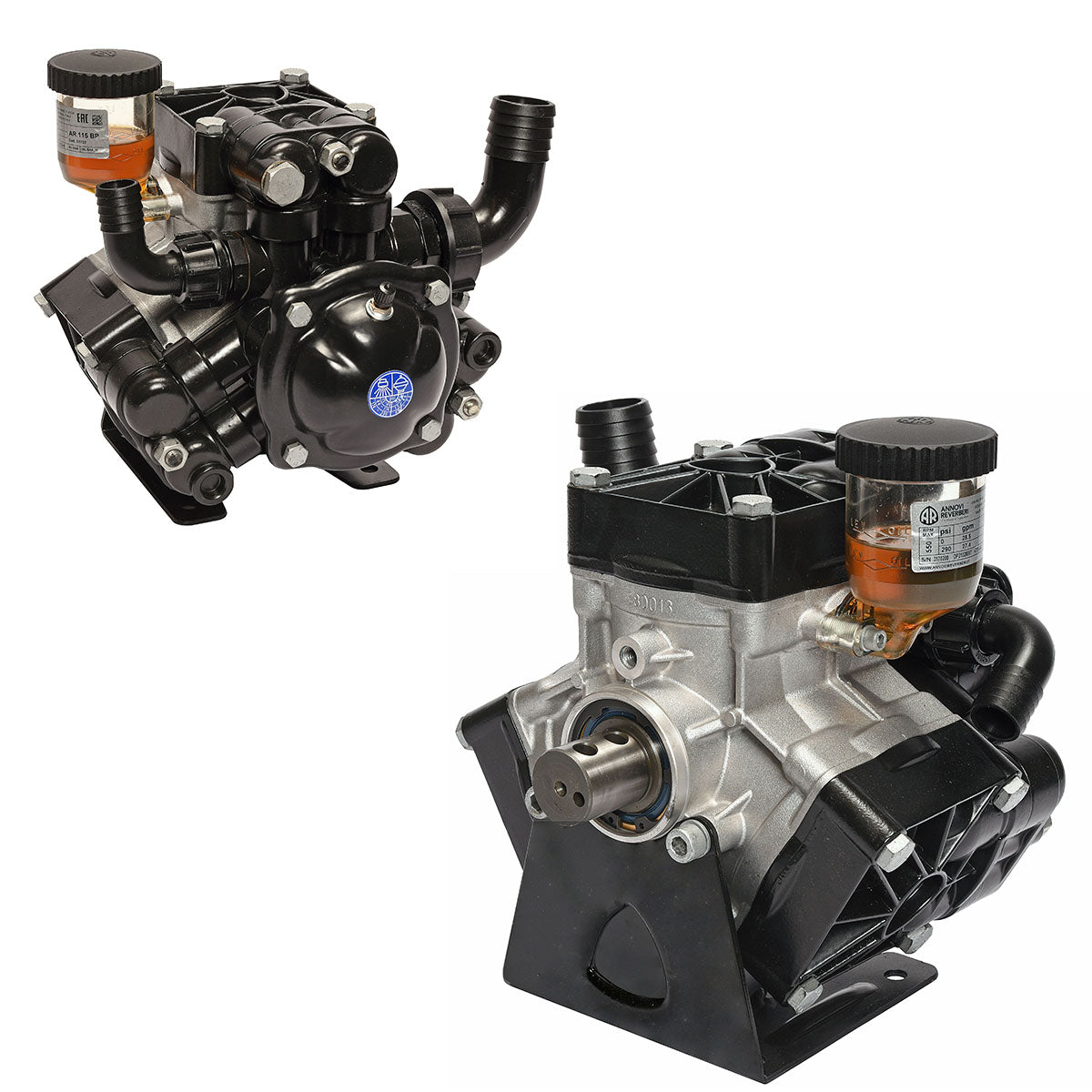

Hypro/AR low pressure diaphragm pumps are recommended for ground and low-level spraying of herbicides, pesticides, liquid fertilizers and many other hard-to handle fluids. Low-cost maintenance and almost wear free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large-sized sprayers. Hypro low pressure diaphragm pumps can be adapted for splined shaft, hollow shaft, and solid shaft drive options. Pumps include a pulsation dampener. See page 2 of manual for drive options.

Download Product Manual

• Max flow: 30.1 gpm
• Max pressure: 290 psi
• Shaft: Flanged adapter for shaft kit. See page 2 of manual for drive options.
• Port sizes: 1-1/2" HB inlet, 1" HB outlet
• Pump shaft rotation: CW and CCW
• Diaphragms: 3, semi-hydraulic, BlueFlex standard, Desmopan® and Buna available
• Housing: Anodized aluminum
• Recommended control unit: 3300-0087 or 3300-0088 (remote mount)
• Recommended gearbox: Cannot add gearbox to pump, please see model 9910-D115GR34 (AR115BP-GR/3/4) for pump with gearbox included
• Max fluid temperature: 140°F
• Weight: 35 lbs
