Product Overview

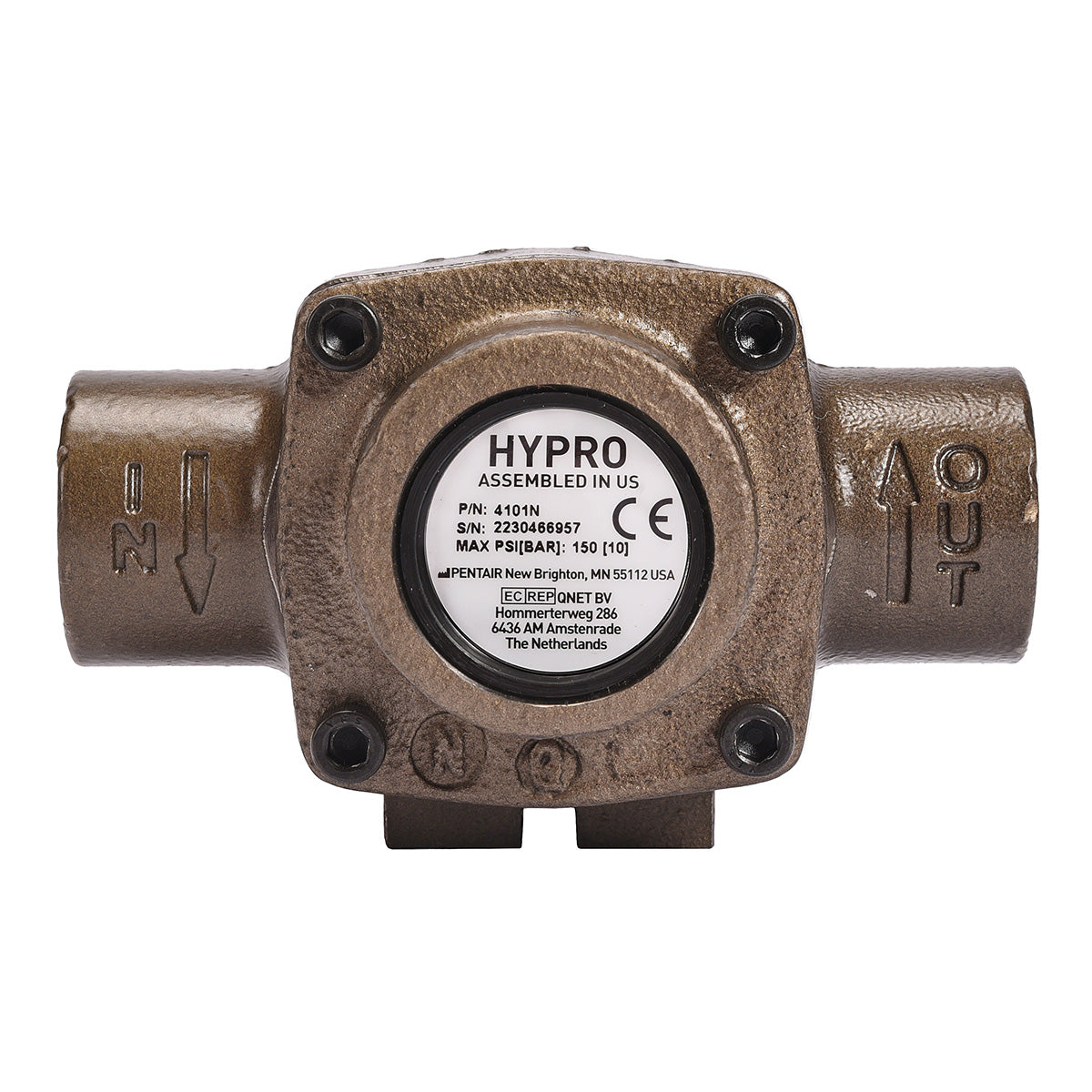

Hypro Roller Pump

Model: 4101N

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.

The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:
  • Max flow: 7 gpm
  • Max pressure: 150 psi
  • Max speed: 2600 rpm
  • Port sizes: 3/4" NPT
  • Pump shaft rotation: CW
  • 5/8" solid stainless steel shaft ( 1/2" Hollow Shaft also available)
  • Pumps are&n

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Body (Ni-Resist)
    • Ref No: 1
    • Part No: 01004101N
    • Qty Req: 1
    Our price: $264.18 List price: $315.12
  • Endplate (Ni-Resist) with Std. Seal
    • Ref No: 2
    • Part No: 02004101N
    • Qty Req: 1
    Our price: $102.01 List price: $121.68
  • Rotor Assembly (4101N, XL)
    • Ref No: 3
    • Part No: 34300766
    • Qty Req: 1
    Our price: $153.52 List price: $189.53
  • Rotor Assembly (Hollow Shaft)
    • Ref No: 3A
    • Part No: 34300781
    • Qty Req: 1
    Our price: $152.93 List price: $188.80
  • Super Rollers (Std.)
    • Ref No: 5
    • Part No: 10050002
    • Qty Req: 4
    Our price: $5.24 List price: $6.47
  • Polypropylene Rollers (Optional)
    • Ref No: 5
    • Part No: 10020002
    • Qty Req: 4
    Our price: $4.57 List price: $5.64
  • Teflon® Rollers (Optional)
    • Ref No: 5
    • Part No: 10550002
    • Qty Req: 4
    Our price: $32.63 List price: $40.29
  • Endplate Screw
    • Ref No: 7
    • Part No: 22200018
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Viton Seal (Std.)
    • Ref No: 8
    • Part No: 21070002
    • Qty Req: 2
    Our price: $14.25 List price: $17.59
  • Ball Bearing for Hypro Pumps
    • Ref No: 9
    • Part No: 20000010
    • Qty Req: 2
    Our price: $13.53 List price: $16.70
  • Base Kit (3-1/2")
    • Ref No: 10
    • Part No: 34200024
    • Qty Req: 1
    Our price: $57.36 List price: $70.82
  • Base Kit (4-3/16")
    • Ref No: 11
    • Part No: 34200025
    • Qty Req: 1
    Our price: $56.24 List price: $65.59
  • Adapter (5/8 X 5/8)
    • Ref No: 12
    • Part No: 13200016
    • Qty Req: 1
    Our price: $56.07 List price: $69.22
  • Adapter (5/8 X 3/4")
    • Ref No: 12
    • Part No: 13200015
    • Qty Req: 1
    Our price: $55.32 List price: $68.30
  • Base
    • Ref No: 17
    • Part No: 15100054
    • Qty Req: 1
    Our price: $18.43 List price: $22.75
  • Bumper
    • Ref No: 18
    • Part No: 14500003
    • Qty Req: 2
    Our price: $1.85 List price: $2.29
  • Lock Washer
    • Ref No: 20
    • Part No: 22600002
    • Qty Req: 2
    Our price: $1.26 List price: $1.55
