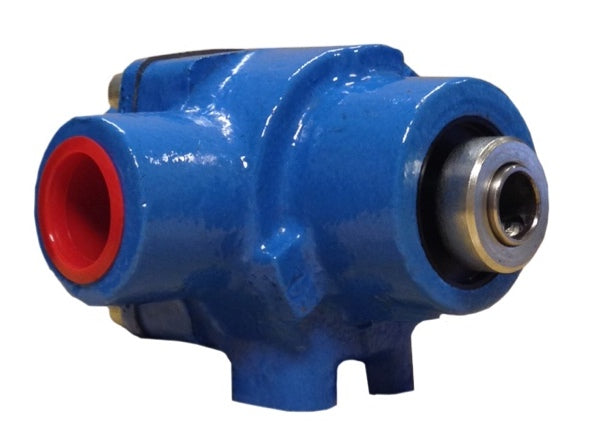

Hypro Pump - 4101C-H

Hypro Pump - 4101C-H

Item Code:
4101CH
Weight:
5.0 lb
Manufacturer:
Hypro
Our price:
$178.85
List price:
$325.19
Overview:

Hypro Roller Pump

Model: 4101CH

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.

The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:

  • Max flow: 7 gpm
  • Max pressure: 150 psi
  • Max speed: 2600 rpm
  • Port sizes: 3/4" NPT
  • Pump shaft rotation: CW
  • 5/8" solid stainless steel shaft (1/2" Hollow Shaft also available)

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 5
  • Part No: 10050002
  • Qty Req: 4
Our price: $4.32 List price: $5.33
  • Ref No: 7
  • Part No: 22200018
  • Qty Req: 4
Our price: $1.01 List price: $1.25
  • Ref No: 8
  • Part No: 21070002
  • Qty Req: 2
Our price: $11.75 List price: $14.50
  • Ref No: 9
  • Part No: 20000010
  • Qty Req: 2
Our price: $11.40 List price: $14.08
  • Ref No: 10
  • Part No: 34200024
  • Qty Req: 1
Our price: $47.30 List price: $58.39
  • Ref No: 13
  • Part No: 23000023
  • Qty Req: 1
Our price: $1.73 List price: $2.13
  • Ref No: 14
  • Part No: 23000021
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 15
  • Part No: 14200001
  • Qty Req: 1
Our price: $6.71 List price: $8.28
  • Ref No: 16
  • Part No: 22300001
  • Qty Req: 1
Our price: $2.15 List price: $2.65
  • Ref No: 17
  • Part No: 15100054
  • Qty Req: 1
Our price: $15.59 List price: $19.25
  • Ref No: 18
  • Part No: 14500003
  • Qty Req: 2
Our price: $1.54 List price: $1.90
  • Ref No: 19
  • Part No: 22100003
  • Qty Req: 2
Our price: $1.09 List price: $1.34
  • Ref No: 20
  • Part No: 22600002
  • Qty Req: 2
Our price: $1.07 List price: $1.32
