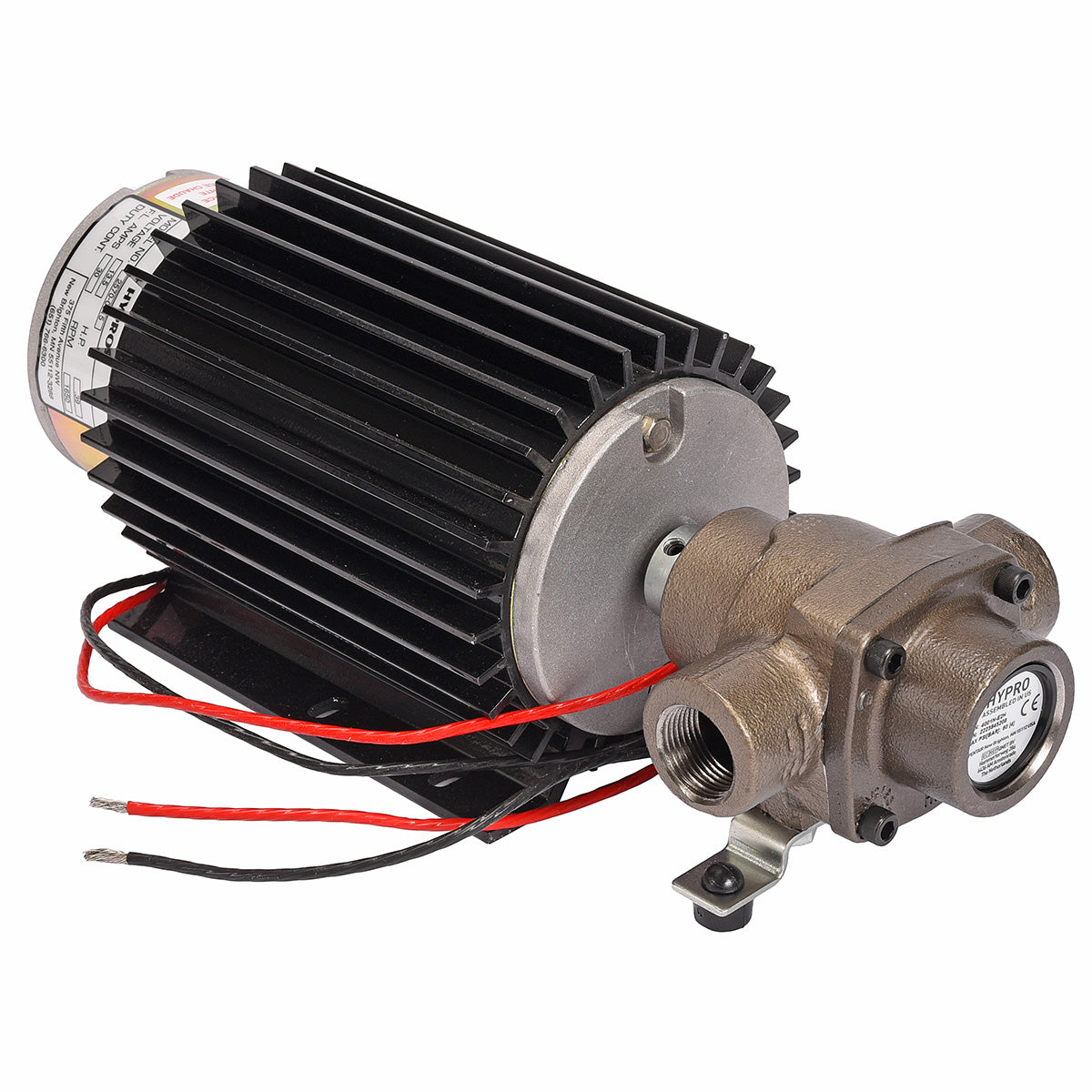

Hypro 4001N-E2H (4001N-AE2H) 12 Volt DC Roller Pump

Hypro 4001N-E2H (4001N-AE2H) 12 Volt DC Roller Pump

Brand:
Hypro
Weight:
21.0 lb
Item #
4001NE2H
Skip to product information
1 of 1

Hypro 4001N-E2H (4001N-AE2H) 12 Volt DC Roller Pump

Hypro 4001N-E2H (4001N-AE2H) 12 Volt DC Roller Pump

Brand:
Hypro
Weight:
21.0 lb
Item #
4001NE2H

Regular price $757.71
Sale price $757.71 Regular price List Price: $1,377.65

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,273 points with this purchase.

View full details

Collapsible content

Product Overview

The design of the Hypro 4001N-E2H (4001N-AE2H) 12 Volt DC Roller Pump is perfect for bulk chemical, industrial, and agricultural transfer and spraying of a variety of fluids, such as aromatic solvents, liquid fertilizers, emulsives, herbicides, and insecticides. This cost-effective roller pump unit provides more lower starting torque and friction than other pumps with positive displacement characteristics for situations requiring higher pressure.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. The 4000 series, 4-roller, 12-volt pump achieves up to 10.4 gpm, and 100 psi depending on the model. The series includes models 4001N-EH, 4001XL-EH, 4101N-EH, 4101XL-EH, 4001N-E2H, 4001XL-E2H, 4101N-E2H, 4101XL-E2H.

Features

  • 4001N-H pump coupled to E2H 12 volt DC motor
  • Max flow: 9.9 gpm
  • Max pressure: 50 psi
  • Max rpm: 1600
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Ni-Resist
  • Rotor: Ni-Resist
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 4
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 1/2" hollow stainless steel
  • Max fluid temperature: 140°F
  • Weight: 21 lbs
